UtiliTrak® SW Series Vee Channel, Size 2, Steel, 2080mm Length
UtiliTrak® SW Series Vee Channel, Size 2, Steel, 2080mm Length
SKU:VOO-f18131
Precision-engineered Vee profile channel for medium to heavy-duty applications, 2080mm length, steel construction
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
UtiliTrak® SW Series Vee Channel, Size 2, Steel, 2080mm Length
$129.99
Quantity: 1
Claim Your Seller Account
UtiliTrak® SW Series Vee Channel, Size 2, Steel, 2080mm Length
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The UtiliTrak® SW Series Vee Channel is a precision-engineered linear guide track designed for medium to heavy-duty applications. Crafted from high-grade AISI 52100 carbon steel, it features a Vee profile for enhanced stability. With 26 predrilled mounting holes and a standard length of 2080mm, this channel offers precise motion control and durability, making it ideal for industrial and institutional settings where reliability is paramount.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

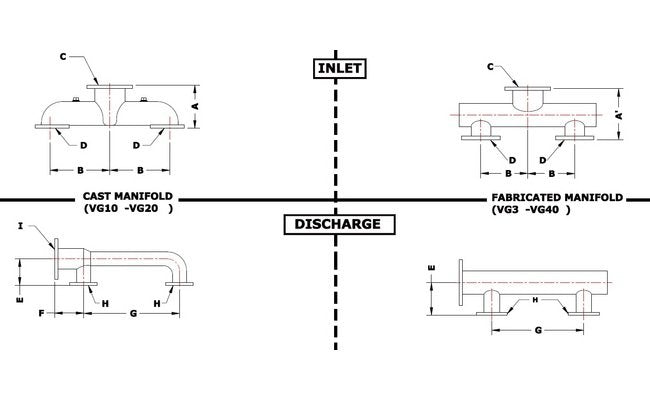

Dimension Discharge Flange Size H
8 x 13 in
Dimension Discharge Flange Size I
10 x 16 in | 250 x 395 mm
Dimension Discharge Size E
11 in | 279 mm
Dimension Discharge Size F
11 in | 279 mm
Dimension Discharge Size G
50-1/4 in
Dimension Inlet Flange Size C
12 x 19 in | 300 x 445 mm
Dimension Inlet Flange Size D
10 x 16 in
Dimension Inlet Size A
24 in
Dimension Inlet Size B
25-7/8 in | 657 mm
Dimension Note For Dimension
Bolt Holes Straddle Center LineProcess Connection Flanges Flat Faced with DIN Bolt PatternAll Flanges Flat Faced with ANSI Bolt PatternCast Manifolds are Constructed Out of CIFabricated Manifolds are Constructed of CS, 304SS or 316SS
Material Construction Features Bearing Carrier Material
Carbon Steel
Material Construction Features Cone Material
304 Cast Stainless Steel (SS)
Material Construction Features Head Material
316 Cast Stainless Steel (SS)
Material Construction Features Housing Material
304 Cast Stainless Steel (SS)
Material Construction Features Note For Head Material
Replaceable 316 SS Wear Plates on cast iron heads.
Material Construction Features Package Gland Studs And Nuts Mate
316 Cast Stainless Steel (SS)
Material Construction Features Rotor Material
304 Cast Stainless Steel (SS)
Material Construction Features Shaft Material
410 Heat Treated (HT) Cast Stainless Steel (SS)
Specifications Approximate Pump Weight
4015 kg
Specifications Bearing Design
Timken tapered roller bearing, external, grease lubricated. Type: Timken Assembly 90220, 74550 Cone, 74851CD Cup, X1S-74550 Spacer
Specifications Certifications
German Institute for Standardization (DIN)
Specifications Cone Opening Vacuum Level
Low (L)
Specifications Manifold Inlet Flange Connection Size
300 mm
Specifications Manifold Outlet Flange Connection Size
250 mm
Specifications Nominal Sealing Liquid Flow Rate At 15 Inch In Me
115 to 150 L/min
Specifications Pump Inlet Flange Connection Size
250 mm
Specifications Pump Outlet Flange Connection Size
200 mm
Specifications Sealing Liquid Connection Size
1-1/2 in
Specifications Sealing Liquid Connection Type
National Pipe Thread (NPT)
Specifications Shaft Diameter Drive End
133.4 mm
Specifications Shaft Sealing
Packing
Specifications Type
Single stage rotor, cone shape ports, liquid ring vacuum pump
