Utility Diamond Negative with Hole, Radius 1/32 inch

Name: Utility Diamond Negative with Hole, Radius 1/32 inch
Brand: Ultra-Met
SKU: TUR-d31edd
Price: 29.99 USD
Availability: OutOfStock

SKU:TUR-d31edd

Enhance your turning projects with the Utility Diamond Negative. Radius 1/32 inch, precise dimensions, for superior machining.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

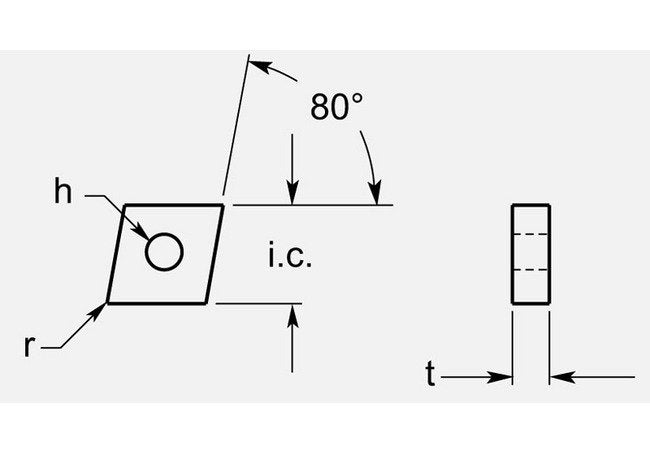

The Utility Diamond Negative with Hole, featuring a precise Radius of 1/32 inch, is a versatile turning blank designed for exceptional performance. With a Thickness range of 0.198 to 0.206 inches and an Inscribed Circle diameter of 0.497 to 0.503 inches, this product offers optimal efficiency in machining applications. The 80-degree Angle ensures precise cutting, making it ideal for various turning projects. Grade Availability can be tailored to specific requirements, guaranteeing superior quality and durability. Contact us for customized solutions to meet your exact needs.

Product Specifications

Dimensional Specification Angle A

80 Âº

Dimensional Specification Hole

0.200 / 0.206 in

Dimensional Specification Inscribed Circle Ic

0.497/0.503 in

Dimensional Specification Radius R

1/32 in

Dimensional Specification Thickness T

0.198 / 0.206 in

Grade Availability Grade Availability

Available on Request

Utility Diamond Negative with Hole, Radius 1/32 inch
