Utility Trigon Negative GP6 Chipbreaker with Hole, 0.252 / 0.257 in Thickness

Name: Utility Trigon Negative GP6 Chipbreaker with Hole, 0.252 / 0.257 in Thickness
Brand: Ultra-Met
SKU: TUR-6c89db
Price: 29.99 USD
Availability: OutOfStock

SKU:TUR-6c89db

High-precision Utility Trigon Negative GP6 Chipbreaker with Hole, 0.252 / 0.257 in Thickness, ensures top performance for turning operations.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

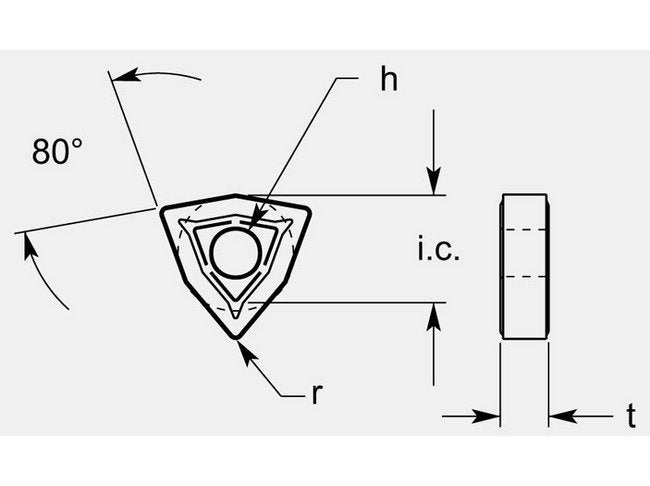

The Utility Trigon Negative GP6 Chipbreaker with Hole is designed for precision turning operations, offering a thickness of 0.252 / 0.257 inches. With an Inscribed Circle of 0.497/0.503 inches, Radius of 3/64 inches, and an Angle of 80 degrees, this chipbreaker ensures optimal performance. Classified for General Purpose operations and available on request in various grades, this tool delivers consistent results for both consumer and institutional buyers.

Product Specifications

Classifications Operation

General Purpose

Dimensional Specification Angle A

80 Âº

Dimensional Specification Hole

0.201 / 0.205 in

Dimensional Specification Inscribed Circle Ic

0.497/0.503 in

Dimensional Specification Radius R

3/64 in

Dimensional Specification Thickness T

0.252 / 0.257 in

Grade Availability Grade Availability

Available on Request

Utility Trigon Negative GP6 Chipbreaker with Hole, 0.252 / 0.257 in Thickness
