Utility Trigon Negative GP6 Chipbreaker with Hole 0.267 / 0.273 in
Utility Trigon Negative GP6 Chipbreaker with Hole 0.267 / 0.273 in
SKU:TUR-1186a2
Enhance precision turning with the versatile Utility Trigon Negative GP6 Chipbreaker for efficient chip control. Customize grade availability to meet diverse machining needs.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Utility Trigon Negative GP6 Chipbreaker with Hole 0.267 / 0.273 in
$34.99
Quantity: 1
Claim Your Seller Account
Utility Trigon Negative GP6 Chipbreaker with Hole 0.267 / 0.273 in
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

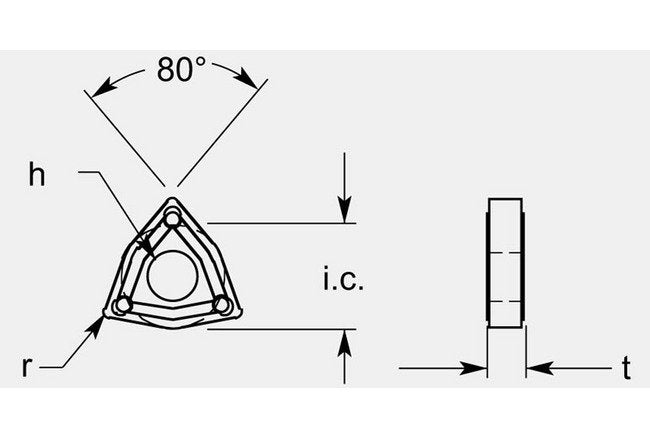

The Utility Trigon Negative GP6 Chipbreaker features a thickness range of 0.267 to 0.273 inches, inscribed circle ranging from 0.745 to 0.755 inches, a 3/64-inch radius, and an 80-degree angle for precision turning applications. With a hole size of 0.310 to 0.314 inches, this chipbreaker ensures enhanced chip control and efficient machining performance. Grade availability is customizable to meet specific requirements, making it ideal for a wide range of turning applications.
Product Specifications
Dimensional Specification Angle A
80 º
Dimensional Specification Hole
0.310 / 0.314 in
Dimensional Specification Inscribed Circle Ic
0.745/0.755 in
Dimensional Specification Radius R
3/64 in
Dimensional Specification Thickness T
0.267 / 0.273 in
Grade Availability Grade Availability
Available on Request
