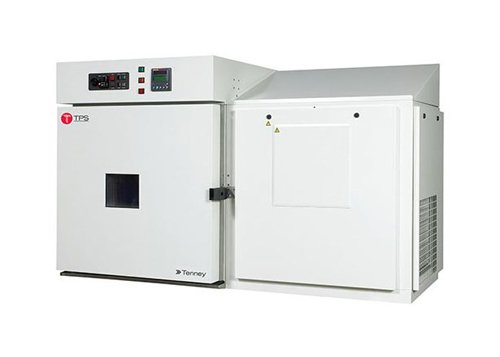

Tenney’s Benchmaster temperature and humidity test chambers are capable of simulating a wide range of temperature or temperature and humidity conditions. The five-cubic-foot workspace will readily accept equipment as large as a 19" relay rack. In keeping with the needs of today’s lab, we designed these temperature and humidity test chambers to have a compact exterior that maximizes the interior workspace.
Product Specifications
Specifications Current
29 A
Specifications Exterior Depth
32 in | 81.28 cm
Specifications Exterior Height
74 in | 187.96 cm
Specifications Exterior Width
37 in | 93.98 cm
Specifications Features
Vapor-tight interior liners made of 100% continuously welded stainless steel | Temperature and humidity environmental chambers with humidity capabilities are constructed of 100% non-corroding parts and have a low-water protection system | Uniform conditions are assured through the use of a verticaldown recirculating conditioning stream | VersaTenn III Controller on temperature and humidity chambers | Watlow F4 Controller | One year parts and labor warranty
Specifications Fuse Current
40 A
Specifications Heater Capacity
2 kW
Specifications Humidifier Electric Power
1500 W
Specifications Humidifier Flow Rate
0.3 gph
Specifications Maximum Temperature
200 ºC
Specifications Minimum Temperature
-70 ºC
Specifications Options
Alternate power supply wiring | Automatic CO2 or LN2 cooling boost system | Automating boost heating system | Chamber cart with casters | External dryer for obtaining humidity as low as 5% (to 20°C) | GN2 purge system | IEEE/488 interface | Interior light | LinkTenn software for Windows® that permits your computer to control up to 10 chambers | Recirculating system for humidity water | Recording instruments | Redundant thermal protection and alarm system | RS-422, 423, 232, or 485 interface assemblies | Shelving, adjustable and removable | Viewing window, 6 Inch (in) x 8 Inch (in), thermally insulated and heated | Water demineralizer | Water reservoir for humidity system (5 gallon)
Specifications Phase
1
Specifications Refrigeration
1 hp
Specifications Voltage
230 V
Specifications Weight
500 lb
Specifications Workspace Depth
19.25 in | 49 cm
Specifications Workspace Height
22 in | 56 cm
Specifications Workspace Width
20 in | 51 cm
