High-performance 20-pin Plug & Receptacle Assembly for underwater interconnections. Superior water sealing, stainless steel hardware, and reliability tested up to 500 p.s.i.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
UWC Series 20-Pin Plug & Receptacle Assembly - Underwater Electrical Connectors
$149.99
Quantity: 1
Claim Your Seller Account
UWC Series 20-Pin Plug & Receptacle Assembly - Underwater Electrical Connectors
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

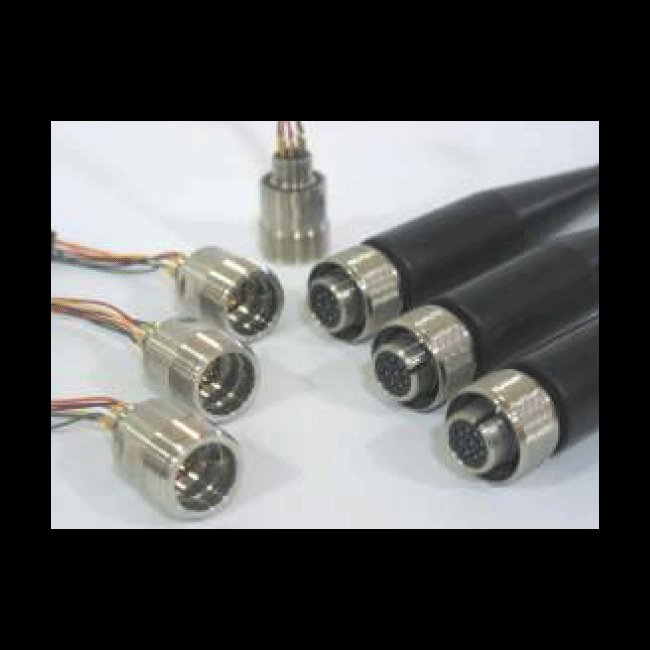

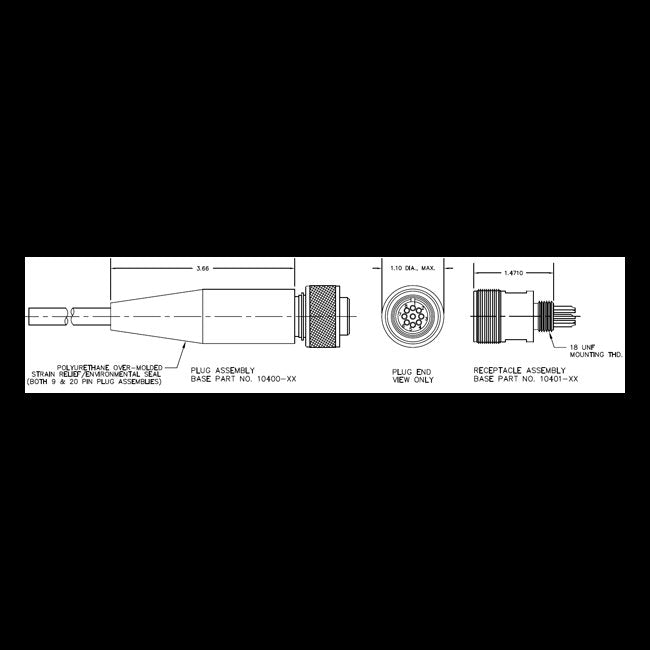

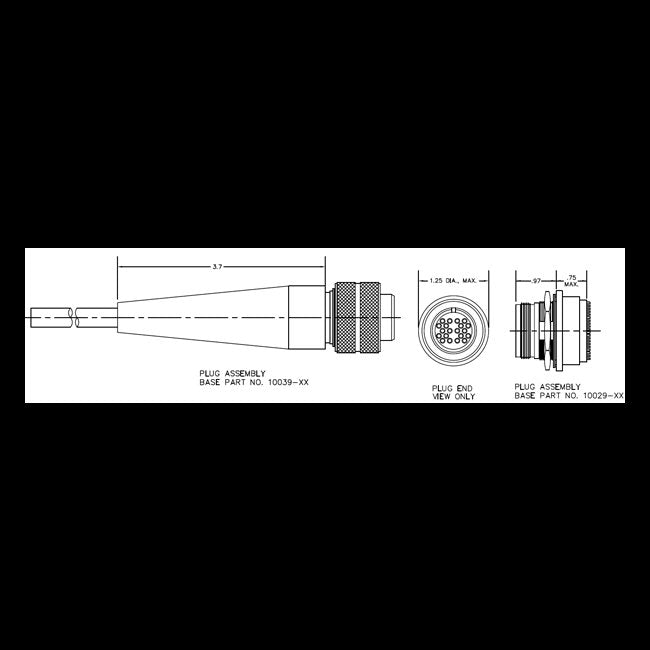

The UWC Series 20-Pin Plug and Receptacle Assembly from Connectronics is meticulously engineered to deliver unparalleled performance in underwater interconnection applications. With a robust design featuring a critical water sealing interface, stainless steel hardware, and water sealing over-molding, this connector assembly ensures exceptional environmental protection and reliability. It boasts an operating voltage rating of 300 VDC, maximum current of 7.5 A, and can withstand environmental pressures ranging from 0 to 500 psi. The connectors are hydrostatic pressure tested to 500 p.s.i. for field-ready performance. Crafted with top-quality materials like stainless steel, neoprene rubber, and glass filled epoxy, this assembly guarantees longevity and efficiency in underwater operations.
Product Specifications
Applications 0
SensorsTestingData collectionMisc. low voltage power distribution
Ordering Information 0
Receptacle assemblies can be ordered as kits or terminated with wire to meet specific requirements. Plug assemblies are pre-terminated with cable. various custom cable configurations are available. consult connectronics For additional information.Also available from connectronics are a wide variety of connectors to connect the underwater assemblies to PC board jumper pins and I/O devices. Please consult factory for additional information.
Specifications Connector Hardware Material
Stainless Steel, Type 316 Per QQ-S-763. Passivated Per QQ-P-35
Specifications Direct Current Dc Operating Voltage Rating
300 V
Specifications Electrical Test Conditions
Mated connectors are hydrostatic pressure tested to 500 p.s.i. to insure reliable performance in the field.
Specifications Environmental Pressure
0 to 500 psi
Specifications Environmental Temperature
-10 to +80 ºC
Specifications Features
O-Ring Sealed interface300 VDC Operating VoltageTemperature Range -10°C to +80°CHydrostatic tested to 500 p.s.i.Strain relief over moldedStainless steel hardwareInterface available in 9 & 20 pinReliable performance
Specifications Maximum Current
7.5 A
Specifications O Ring Material
Nitrile (Buna-N) Rubber
Specifications Pin Contacts Material
Half hard brass per QQ-B-626, gold plated per MIL-G-45204
Specifications Plug Insulator Material
Neoprene Rubber
Specifications Receptacle Insulator Material
Glass Filled Epoxy
Specifications Socket Contacts Material
Meets applicable portions of MIL-C-39029
Specifications Wirecable Material
Cable: #22; AWG TPC stranded conductor with PVC insulation, followed by a foil shield and polyurethane jacket. Plug over molding: Polyurethane rubber.Wire:Size #20; solder cup contacts are designed to accommodate up to a #20; AWG wire.
