UWC Series 20-Pin Underwater Connector Assembly
UWC Series 20-Pin Underwater Connector Assembly
SKU:UND-98a743
Reliable 20-Pin Underwater Connector for demanding applications w/ robust sealing & stainless steel hardware.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
UWC Series 20-Pin Underwater Connector Assembly
$129.99
Quantity: 1
Claim Your Seller Account
UWC Series 20-Pin Underwater Connector Assembly
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

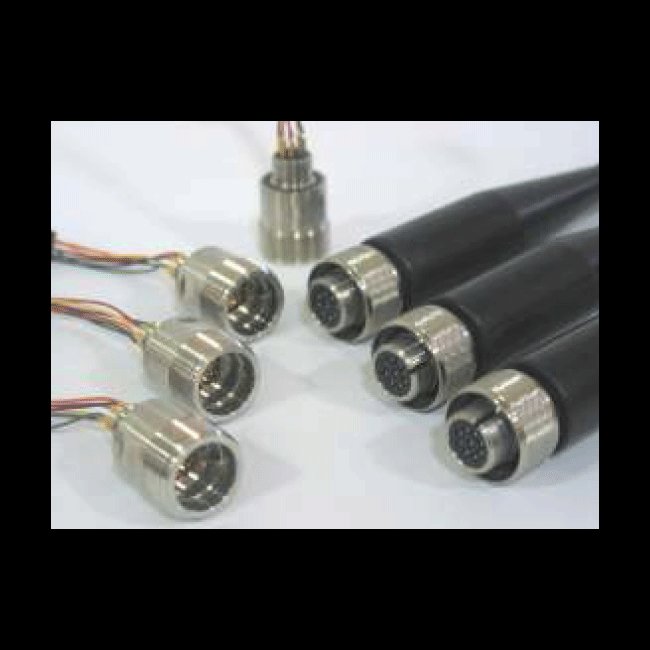

Ideal for underwater interconnection applications, the UWC Series 20-Pin Plug and Receptacle Assembly ensures reliable performance. With a robust water sealing interface, stainless steel hardware, and hydrostatic pressure testing up to 500 psi, it offers exceptional environmental protection. The connectors feature high-quality materials like stainless steel, neoprene rubber, and glass-filled epoxy, providing durability and efficiency in underwater operations.
Product Specifications
Applications 0
SensorsTestingData collectionMisc. low voltage power distribution
Ordering Information 0
Receptacle assemblies can be ordered as kits or terminated with wire to meet specific requirements. Plug assemblies are pre-terminated with cable. various custom cable configurations are available. consult connectronics For additional information.Also available from connectronics are a wide variety of connectors to connect the underwater assemblies to PC board jumper pins and I/O devices. Please consult factory for additional information.
Specifications Connector Hardware Material
Stainless Steel, Type 316 Per QQ-S-763. Passivated Per QQ-P-35
Specifications Direct Current Dc Operating Voltage Rating
300 V
Specifications Electrical Test Conditions
Mated connectors are hydrostatic pressure tested to 500 p.s.i. to insure reliable performance in the field.
Specifications Environmental Pressure
0 to 500 psi
Specifications Environmental Temperature
-10 to +80 ºC
Specifications Features
O-Ring Sealed interface300 VDC Operating VoltageTemperature Range -10°C to +80°CHydrostatic tested to 500 p.s.i.Strain relief over moldedStainless steel hardwareInterface available in 9 & 20 pinReliable performance
Specifications Maximum Current
7.5 A
Specifications O Ring Material
Nitrile (Buna-N) Rubber
Specifications Pin Contacts Material
Half hard brass per QQ-B-626, gold plated per MIL-G-45204
Specifications Plug Insulator Material
Neoprene Rubber
Specifications Receptacle Insulator Material
Glass Filled Epoxy
Specifications Socket Contacts Material
Meets applicable portions of MIL-C-39029
Specifications Wirecable Material
Cable: #22; AWG TPC stranded conductor with PVC insulation, followed by a foil shield and polyurethane jacket. Plug over molding: Polyurethane rubber.Wire:Size #20; solder cup contacts are designed to accommodate up to a #20; AWG wire.
