UWC Series 9-Pin Underwater Electrical Connector Assembly
UWC Series 9-Pin Underwater Electrical Connector Assembly
SKU:UND-c412eb
Reliable 9-pin underwater connector for sensors, data collection & more. Water-sealed, durable stainless steel hardware.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
UWC Series 9-Pin Underwater Electrical Connector Assembly
$89.99
Quantity: 1
Claim Your Seller Account
UWC Series 9-Pin Underwater Electrical Connector Assembly
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

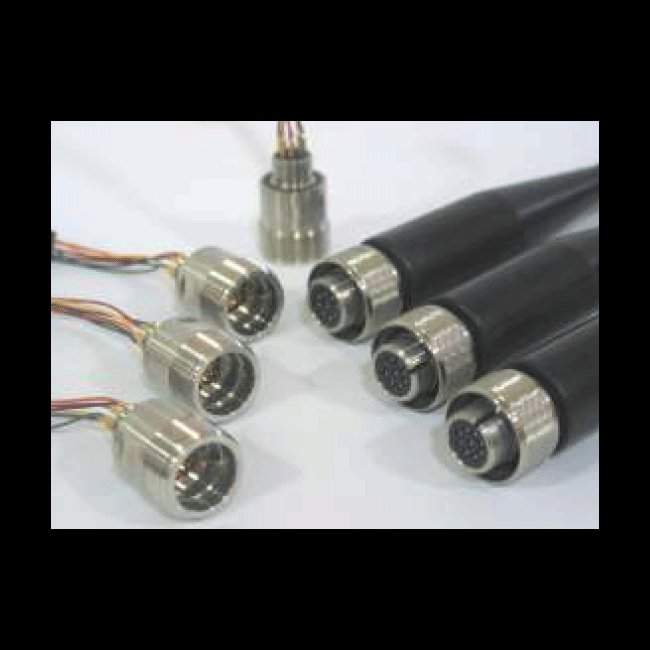

The UWC Series 9-Pin Underwater Electrical Connector Assembly from Connectronics ensures reliable performance in demanding underwater applications. With features like a critical water sealing interface, stainless steel hardware, and hydrostatic pressure testing up to 500 psi, this connector provides excellent environmental protection. The neoprene rubber plug insulator, glass-filled epoxy receptacle insulator, and stainless steel hardware guarantee durability and performance in harsh underwater conditions. Ideal for sensors, testing, data collection, and low voltage power distribution.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications 0
SensorsTestingData collectionMisc. low voltage power distribution
Ordering Information 0

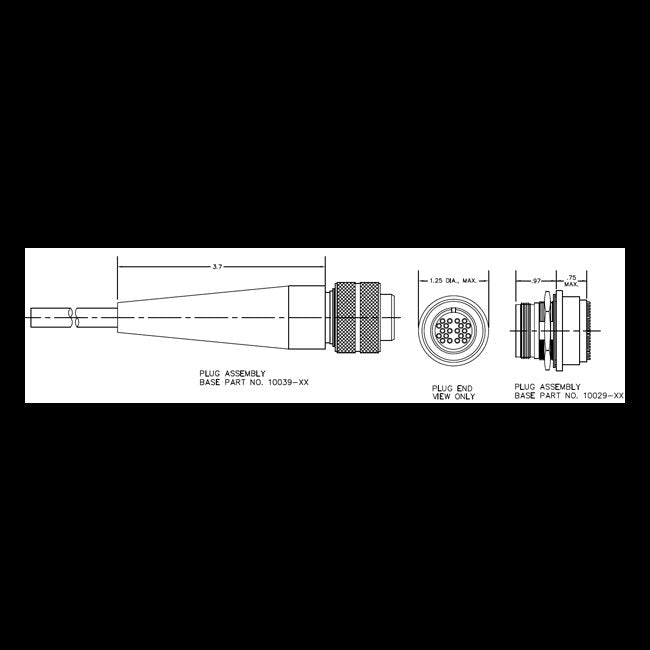

Receptacle assemblies can be ordered as kits or terminated with wire to meet specific requirements. Plug assemblies are pre-terminated with cable. various custom cable configurations are available. consult connectronics For additional information.Also available from connectronics are a wide variety of connectors to connect the underwater assemblies to PC board jumper pins and I/O devices. Please consult factory for additional information.
Specifications Connector Hardware Material
Stainless Steel, Type 316 Per QQ-S-763. Passivated Per QQ-P-35
Specifications Direct Current Dc Operating Voltage Rating
300 V
Specifications Electrical Test Conditions
Mated connectors are hydrostatic pressure tested to 500 p.s.i. to insure reliable performance in the field.
Specifications Environmental Pressure
0 to 500 psi
Specifications Environmental Temperature
-10 to +80 ºC
Specifications Features
O-Ring Sealed interface300 VDC Operating VoltageTemperature Range -10°C to +80°CHydrostatic tested to 500 p.s.i.Strain relief over moldedStainless steel hardwareInterface available in 9 & 20 pinReliable performance
Specifications Maximum Current
7.5 A
Specifications O Ring Material
Nitrile (Buna-N) Rubber
Specifications Pin Contacts Material
Half hard brass per QQ-B-626, gold plated per MIL-G-45204
Specifications Plug Insulator Material
Neoprene Rubber
Specifications Receptacle Insulator Material
Glass Filled Epoxy
Specifications Socket Contacts Material
Meets applicable portions of MIL-C-39029
Specifications Wirecable Material
Cable: #22; AWG TPC stranded conductor with PVC insulation, followed by a foil shield and polyurethane jacket. Plug over molding: Polyurethane rubber.Wire:Size #20; solder cup contacts are designed to accommodate up to a #20; AWG wire.
