V-Bend Radius POD-430-90A

Name: V-Bend Radius POD-430-90A
Brand: Polyurethane Products Corp.
SKU: SQU-65a0db
Price: 29.99 USD
Availability: OutOfStock

SKU:SQU-65a0db

Enhance V-bend precision with the V-Bend Radius POD-430-90A pad. Crafted for durability and efficiency in ASTM Steel C-Channels.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

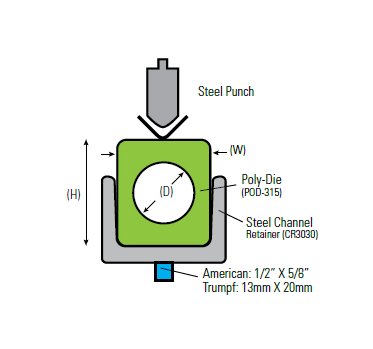

The V-Bend Radius POD-430-90A is a versatile square or rectangular pad with a flat top, meticulously crafted for precise bending of sharp or radiused V-bends. Engineered with a molded stress relief hole along its length, this pad reduces tonnage requirements and ensures superior performance. Specifically designed to seamlessly fit into standard ASTM Steel C-Channels, serving as reliable holders or retainers. With various deflections and a durable 90A durometer, this pad excels in efficiency and longevity. Dimensions include a pad width of 5.0 inches, pad height of 4.0 inches, hole diameter of 3.0 inches, and compatibility with 12 ga steel for 90-V gauge capacity and 1-1/2 inch radius size. Partnered with Retainer Part Number CR4050.

Product Specifications

Specifications Color

Red

Specifications Deflections

25 %

Specifications Gauge Capacity Fo 90 V

12 ga

Specifications Hardness

90A duro

Specifications Hole Diameter

3.0 in

Specifications Number Of Forming Surfaces

Specifications Pad Height

4.0 in

Specifications Pad Width

5.0 in

Specifications Retainer Part Number

CR4050

Specifications Size For 90 Radius

1-1/2 in

V-Bend Radius POD-430-90A
