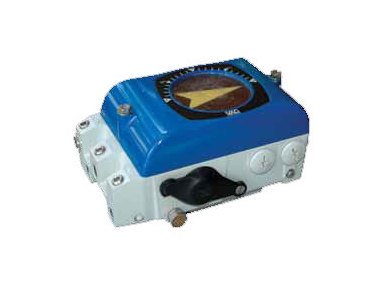

V200P Industrial Pneumatic Positioner
V200P Industrial Pneumatic Positioner
SKU:ACT-1c5c04
Enhance industrial processes with the precise V200P Pneumatic Positioner for accurate valve control and reliability in harsh environments.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
V200P Industrial Pneumatic Positioner
$249.99
Quantity: 1
Claim Your Seller Account
V200P Industrial Pneumatic Positioner
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The V200P Industrial Pneumatic Positioner is a high-performance device designed for precise valve positioning in heavy-duty industrial applications. With a supply pressure of up to 145 psi, this positioner ensures accurate control with linearity error less than 0.7% f.s. It offers exceptional repeatability (<0.3% f.s) and hysteresis (<0.4% f.s), making it ideal for critical processes. This positioner features robust construction with NEMA 4X and IP66 protection, ensuring reliability in harsh environments. Its wide temperature range (-40 to +185 ºF) and low air consumption (0.35 scfm at 87 psi) further enhance its suitability for industrial use.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Air Connections
1/4" NPT
Specifications Air Consumption At 87 Psi
0.35 scfm
Specifications Cable Entry
1/2" NPT
Specifications Gauges
1/8" NPT
Specifications Hysteresis
<0.4% f.s
Specifications Ingress Corrosion Protection
NEMA 4X and IP66
Specifications Linearity Error
<0.7% f.s
Specifications Output Flow Capacity At 87 Psi
28.3 scfm
Specifications Repeatability
<0.3% f.s
Specifications Standard Coating
Polyester
Specifications Supply Pressure
<145 psi | <1 MPa
Specifications Temperature Range
-40 to +185 ºF | -40 to +85 ºC
Specifications Weight
3.2 lbs | 1.45 kg
Specifications Weight With Gauges
3.4 lbs | 1.54 kg
