V200P Pneumatic Positioner for Precise Actuation Control
V200P Pneumatic Positioner for Precise Actuation Control
SKU:ACT-8668dc
Enhance precision with our V200P Pneumatic Positioner for reliable actuation control in industrial applications.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
V200P Pneumatic Positioner for Precise Actuation Control
$189.99
Quantity: 1
Claim Your Seller Account
V200P Pneumatic Positioner for Precise Actuation Control
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

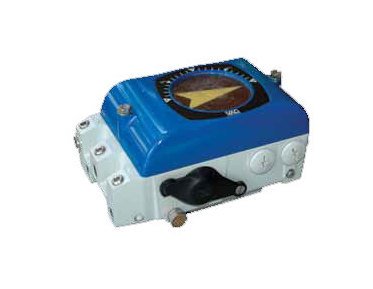

The V200P Pneumatic Positioner is a versatile solution for precise actuation control in industrial settings. This positioner, available in double or single acting models, boasts exceptional specifications including a supply pressure of <145 psi, linearity error <0.7% f.s, and hysteresis <0.4% f.s. With a wide temperature range of -40 to +185 ºF, NEMA 4X and IP66 protection against ingress and corrosion, and compliance with industry standards, this positioner ensures reliable and accurate performance. Its lightweight design and durable construction make it ideal for a variety of applications requiring efficient pneumatic actuation.
Product Specifications
Specifications Air Connections
1/4" NPT
Specifications Air Consumption At 87 Psi
0.35 scfm
Specifications Cable Entry
1/2" NPT
Specifications Gauges
1/8" NPT
Specifications Hysteresis
<0.4% f.s
Specifications Ingress Corrosion Protection
NEMA 4X and IP66
Specifications Linearity Error
<0.7% f.s
Specifications Output Flow Capacity At 87 Psi
28.3 scfm
Specifications Repeatability
<0.3% f.s
Specifications Standard Coating
Polyester
Specifications Supply Pressure
<145 psi | <1 MPa
Specifications Temperature Range
-40 to +185 ºF | -40 to +85 ºC
Specifications Weight
3.2 lbs | 1.45 kg
Specifications Weight With Gauges
3.4 lbs | 1.54 kg
