V200P Pneumatic Positioner - Industrial Grade Linear Actuator

Name: V200P Pneumatic Positioner - Industrial Grade Linear Actuator
Brand: Caylor Industrial Sales, Inc.
SKU: ACT-12cbbc
Price: 299.99 USD
Availability: OutOfStock

SKU:ACT-12cbbc

High-precision V200P Pneumatic Positioner with <145 psi Supply Pressure, ideal for industrial applications.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

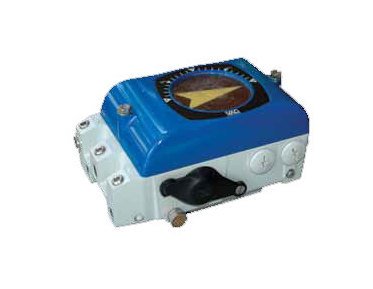

The V200P Pneumatic Positioner is a high-precision linear actuator designed for industrial applications, boasting a Supply Pressure of <145 psi and exceptional performance with Linearity Error <0.7% f.s. Its robust construction ensures reliability with Hysteresis <0.4% f.s and Repeatability <0.3% f.s. Ideal for temperature extremes (-40 to +185 °F), it features NEMA 4X and IP66 protection, and polyester coating for longevity. With Air Connections of 1/4" NPT and compliance with stringent industry standards, the V200P is the top choice for precision control in heavy-duty environments.

Product Specifications

Specifications Air Connections

1/4" NPT

Specifications Air Consumption At 87 Psi

0.35 scfm

Specifications Cable Entry

1/2" NPT

Specifications Gauges

1/8" NPT

Specifications Hysteresis

<0.4% f.s

Specifications Ingress Corrosion Protection

NEMA 4X and IP66

Specifications Linearity Error

<0.7% f.s

Specifications Output Flow Capacity At 87 Psi

28.3 scfm

Specifications Repeatability

<0.3% f.s

Specifications Standard Coating

Polyester

Specifications Supply Pressure

<145 psi | <1 MPa

Specifications Temperature Range

-40 to +185 ÂºF | -40 to +85 ÂºC

Specifications Weight

3.2 lbs | 1.45 kg

Specifications Weight With Gauges

3.4 lbs | 1.54 kg
