V200P Pneumatic Positioner with Mech Switch and 4-20mA Feedback

Name: V200P Pneumatic Positioner with Mech Switch and 4-20mA Feedback
Brand: Caylor Industrial Sales, Inc.
SKU: ACT-b600f5
Price: 259.99 USD
Availability: OutOfStock

SKU:ACT-b600f5

Precision pneumatic positioner with mech switch, 4-20mA feedback & durable construction for accurate control.

$259.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

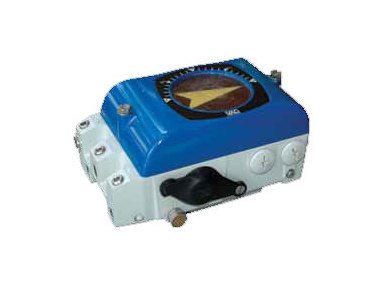

The V200P Pneumatic Positioner is designed for precision control in pneumatic actuation systems. Equipped with a mech switch aux switch and 4 to 20 mA feedback, this positioner ensures accurate and reliable performance. With a supply pressure of <145 psi, a temperature range of -40 to +185 ºF, and NEMA 4X/IP66 protection, it meets stringent industry standards for durability and functionality. The V200P offers a linearity error of <0.7% f.s, hysteresis <0.4% f.s, and repeatability <0.3% f.s, making it a top choice for both consumer and institutional buyers.

Product Specifications

Specifications Air Connections

1/4" NPT

Specifications Air Consumption At 87 Psi

0.35 scfm

Specifications Cable Entry

1/2" NPT

Specifications Gauges

1/8" NPT

Specifications Hysteresis

<0.4% f.s

Specifications Ingress Corrosion Protection

NEMA 4X and IP66

Specifications Linearity Error

<0.7% f.s

Specifications Output Flow Capacity At 87 Psi

28.3 scfm

Specifications Repeatability

<0.3% f.s

Specifications Standard Coating

Polyester

Specifications Supply Pressure

<145 psi | <1 MPa

Specifications Temperature Range

-40 to +185 ÂºF | -40 to +85 ÂºC

Specifications Weight

3.2 lbs | 1.45 kg

Specifications Weight With Gauges

3.4 lbs | 1.54 kg

V200P Pneumatic Positioner with Mech Switch and 4-20mA Feedback
