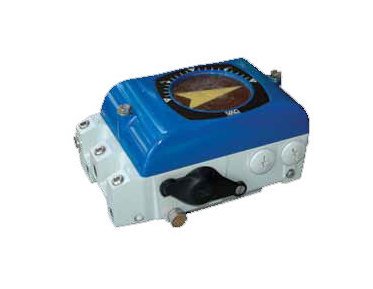

V200P Pneumatic Positioner with Reed Aux Switch

Name: V200P Pneumatic Positioner with Reed Aux Switch
Brand: Caylor Industrial Sales, Inc.
SKU: ACT-73d131
Price: 349.99 USD
Availability: OutOfStock

SKU:ACT-73d131

Enhance control precision with the V200P Pneumatic Positioner for industrial applications. Reliable, accurate, and compliant with industry standards.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The V200P Pneumatic Positioner with Reed Aux Switch is a high-performance pneumatic actuator designed for precise control in industrial applications. With a supply pressure of <145 psi and exceptional linearity error of <0.7% f.s, this positioner ensures accurate and reliable operation. It features hysteresis of <0.4% f.s, repeatability of <0.3% f.s, and a wide temperature range of -40 to +185 °F for versatile use. The NEMA 4X and IP66 protection, polyester coating, and compliance with industry standards make it ideal for government and institutional buyers seeking quality and durability.

Product Specifications

Specifications Air Connections

1/4" NPT

Specifications Air Consumption At 87 Psi

0.35 scfm

Specifications Cable Entry

1/2" NPT

Specifications Gauges

1/8" NPT

Specifications Hysteresis

<0.4% f.s

Specifications Ingress Corrosion Protection

NEMA 4X and IP66

Specifications Linearity Error

<0.7% f.s

Specifications Output Flow Capacity At 87 Psi

28.3 scfm

Specifications Repeatability

<0.3% f.s

Specifications Standard Coating

Polyester

Specifications Supply Pressure

<145 psi | <1 MPa

Specifications Temperature Range

-40 to +185 ÂºF | -40 to +85 ÂºC

Specifications Weight

3.2 lbs | 1.45 kg

Specifications Weight With Gauges

3.4 lbs | 1.54 kg

V200P Pneumatic Positioner with Reed Aux Switch
