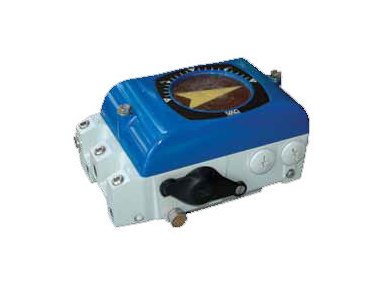

V200P Pneumatic Positioner with Reed Aux Switch and 4-20 mA Feedback

Name: V200P Pneumatic Positioner with Reed Aux Switch and 4-20 mA Feedback
Brand: Caylor Industrial Sales, Inc.
SKU: ACT-95041a
Price: 399.99 USD
Availability: OutOfStock

SKU:ACT-95041a

Enhanced V200P Pneumatic Positioner with Reed Aux Switch & 4-20 mA feedback for precise pneumatic actuation. Ideal for industrial applications.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The V200P Pneumatic Positioner is a versatile solution equipped with a Reed Aux Switch and 4-20 mA feedback for precise control and monitoring. With a supply pressure of <145 psi, linearity error <0.7% f.s, and hysteresis <0.4% f.s, this positioner ensures exceptional accuracy and reliability in pneumatic actuation. Its durable construction, NEMA 4X and IP66 protection, and polyester coating make it ideal for harsh industrial environments. With features like low air consumption of 0.35 scfm, wide temperature range of -40 to +185 ÂºF, and easy installation with standard NPT connections, the V200P is a top choice for various applications.

Product Specifications

Specifications Air Connections

1/4" NPT

Specifications Air Consumption At 87 Psi

0.35 scfm

Specifications Cable Entry

1/2" NPT

Specifications Gauges

1/8" NPT

Specifications Hysteresis

<0.4% f.s

Specifications Ingress Corrosion Protection

NEMA 4X and IP66

Specifications Linearity Error

<0.7% f.s

Specifications Output Flow Capacity At 87 Psi

28.3 scfm

Specifications Repeatability

<0.3% f.s

Specifications Standard Coating

Polyester

Specifications Supply Pressure

<145 psi | <1 MPa

Specifications Temperature Range

-40 to +185 ÂºF | -40 to +85 ÂºC

Specifications Weight

3.2 lbs | 1.45 kg

Specifications Weight With Gauges

3.4 lbs | 1.54 kg

V200P Pneumatic Positioner with Reed Aux Switch and 4-20 mA Feedback
