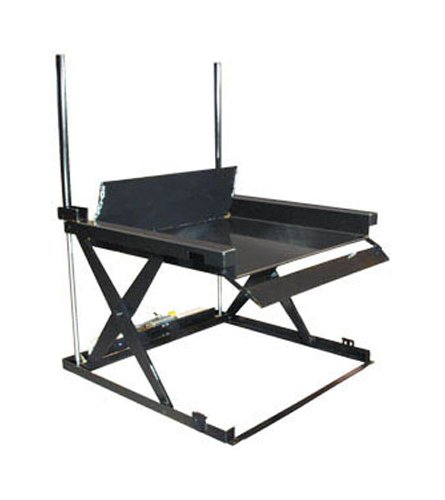

V36XLR2052, 2000 Pound (lb) Capacity Autoquip's Near Zero Scissor Lift
V36XLR2052, 2000 Pound (lb) Capacity Autoquip's Near Zero Scissor Lift
SKU:AUT-7c09af
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
V36XLR2052, 2000 Pound (lb) Capacity Autoquip's Near Zero Scissor Lift
$49.99
Quantity: 1
Claim Your Seller Account
V36XLR2052, 2000 Pound (lb) Capacity Autoquip's Near Zero Scissor Lift
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Combining the near-zero lowered height of a traditional pan-style lift with the extremely low reach-over distance previously available in expensive mast-style lifts. Features the industry's lowest reachover of 4" providing easy operator access to pallets and loads being built up or broken down over the side of the lift. The low reach-over also provides for the smallest footprint in the industry for pan lifts. Available in both 36" and 48" travel models. Also available in both hydraulic and pneumatic actuation. Features platform sizes to meet all common load cube sizes. Also available in pneumatic actuation. FOB Shipping Point.
Product Specifications
Specifications Lift Capacity
2000 lb
Specifications Lowered Height
0.5 in
Specifications Maximum Edge Load At Standard Platform
1000 lb
Specifications Options
VPO-100, Platform options for 36 Inch (in) travel lifts of 40 x 48 Inch (in) and 46 x 48 Inch (in). | VPO-101, Platform options for 48 Inch (in) travel lifts of 40 x 64 Inch (in) and 46 x 64 Inch (in). | VTL-102, Thru load availability by removing the pallet backstop and increasing the deck thickness by 1/4 Inch (in). | VHB-103, Hinged bridge on cylinder end of platform 16 Inch (in) Length x Width of platform to allow Z loading pattern.
Specifications Raised Height
36.5 in
Specifications Raising Or Lowering Time
24 s
Specifications Shipping Weight
1030 lb
Specifications Standard Platform And Base Frame Length
60 in
Specifications Standard Platform And Base Frame Width
60 in
Specifications Standard Platform Length
52 in
Specifications Standard Platform Width
48 in
Specifications Travel Length
36 in
