Vacuum Leak Detection System VC1400
Vacuum Leak Detection System VC1400
SKU:PRO-2c8910
Automate leak detection tests with Dansensor® Lippke® VC1400, ensuring package integrity & compliance with ASTM D3078.
Regular price
$6,999.99
Regular price
Sale price
$6,999.99
Unit price
per
Initiate Order
Vacuum Leak Detection System VC1400
$6,999.99
Quantity: 1
Claim Your Seller Account
Vacuum Leak Detection System VC1400
$6,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

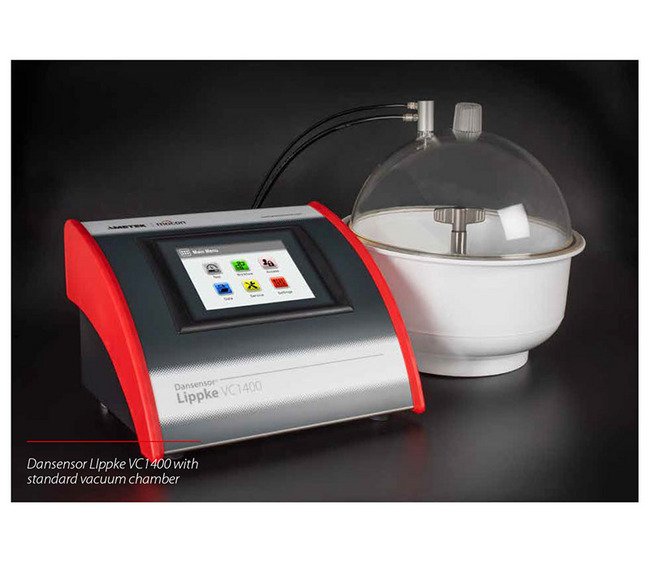

The Dansensor® Lippke® VC1400 Vacuum Leak Detection System is a cutting-edge instrument designed to detect even the smallest leaks in various packaging types. It ensures optimal package integrity and seal strength through automated bubble and dye tests. With user-friendly touchscreen operation and high precision vacuum regulation, this system offers clear and concise test results, making it ideal for quality control checks, R&D testing, and process optimization. Compliant with ASTM D3078, it features a data-rich interface, USB connectivity for seamless data management, and optional accessories for enhanced functionality.
Product Specifications
Additional Information Additional Information
The Dansensor® Lippke® VC1400 has an intuitive graphic user interface with touchscreen. This new interface gives easy access to features and settings, such as adjusting the vacuum, test and penetration times. Pre-defined test parameters ensure optimal reproducibility of tests.The integrated USB port makes data import and export a breeze with cloning and back-up options. In addition, it enables the easy integration of optional accessories, such as a barcode scanner, keyboard or printer.
Benefits Benefits
High precision vacuum regulationNo adjustments required for different package sizes or typesClear and concise on-screen test results One-touch documentation print-out with external printer Easy installation and operation Automatically capture and store dataTest package integrity with blue dye or bubble test
Features Features

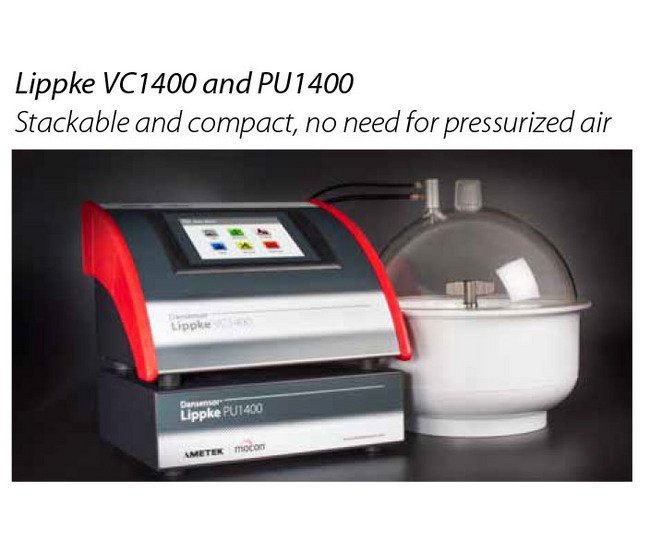

Touchscreen with GUI for user-friendly operationVacuum generation with vacuum pump or compressed air Individual user loginsStore test parameters for repeatability Data capture, storage and exportUSB port for connecting optional barcode scanner, keyboard or printer Optional accessories incl. vacuum chambers, vacuum pump unit and barcode scanner Multilingual user interfaceCompliant with ASTM D3078IQ/OQ validation documents available
How Does It Work How Does It Work

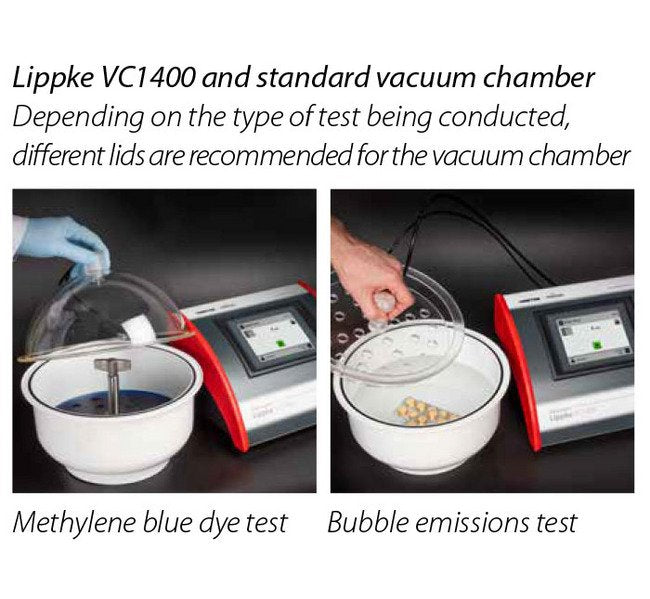

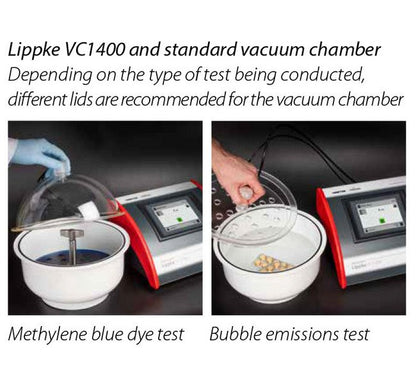

Detect even the smallest leaksIntegrity test on blister packages (Methylene Blue Dye Test)Evacuate the vacuum chamberStress the packages under the predefined test time and pressureVent the chamber and leave the packages in the blue dye under atmospheric pressure, ensuring that the dye penetrates into fine capillariesRemove the packagesBubble emissions test by applying vacuum (ASTM D3078)Evacuate the vacuum chamberThe package balloons under the negative pressure and any leaks become visible with the release of bubbles from the packageVent the chamber
Specifications Accuracy Of Measurement
± 2 mbar or ± 1% of set point (including overshoot when regulating to a fixed pressure)
Specifications Air Connection Standards
German Institute for Standardization (DIN) International Standardization for Organization (ISO) 8573-1:2010 [F4:4:3]
Specifications Air Supply Pressure
4.5 to 6.0 bar
Specifications Air Tube Diameter
4 mm | 6 mm
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Ambient Pressure
900 to 1050 mbar
Specifications Ambient Temperature
+2 to +35 ºC
Specifications Compliances
China Restriction of Hazardous Substances (RoHS) II | European Conformity (CE)
Specifications Data Collection Capacity
Test Data from More than 1,000,000 Tests
Specifications Data Collection Type
Exported to Comma Separated Values (CSV) File
Specifications Depth
236.5 mm | 9.3 in
Specifications Displayed Resolution
1 mbar
Specifications Ejector Variant Measuring Range
100 to 800 mbar | 1.5 to 11.6 psi
Specifications External Vacuum Pump Variant Measuring Range
100 to 900 mbar | 1.5 to 13.1 psi
Specifications Frequency
50 Hz | 60 Hz
Specifications Height
185 mm | 7.3 in
Specifications Industry Standards
American Society for Testing and Materials (ASTM) D3078
Specifications Ingress Protection Ip Class
Ingress Protection (IP20)
Specifications Local Area Network Lan Connectivity
RJ-45 Ethernet 10/100 Mbit/s, DHCP client or fixed IP
Specifications Maximum Air Consumption
60 L/min
Specifications Maximum Penetration Test Time
24 hour
Specifications Maximum Power
40 W
Specifications Maximum Vacuum Test Time
24 hour
Specifications Non Condensing Relative Humidity Rh
10 to 90 %
Specifications Number Of Test Definitions
999
Specifications Package Types
Flexible | Rigid | Semi-Rigid
Specifications Test Package Size
240 x 70 mm
Specifications Test Types
Bubble Test | Methylene Blue Dye Test
Specifications Universal Serial Bus Usb Connectivity
1 x Host, USB 2.0 Type A, 1 x Device, USB 2.0 Type B (max current 500 mA)
Specifications Weight
3.4 kg | 7.5 lb
Specifications Width
284 mm | 11.2 in
