VAL-AN 910 10U Rackmount Double-Ended Opening Case - Hard Mount Aluminum Case
VAL-AN 910 10U Rackmount Double-Ended Opening Case - Hard Mount Aluminum Case
SKU:19I-61e3a6
Durable VAL-AN 910 10U Rackmount Case with waterproof construction, removable covers, and standard spring latches for Mil-STD-108 compliance.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
VAL-AN 910 10U Rackmount Double-Ended Opening Case - Hard Mount Aluminum Case
$499.99
Quantity: 1
Claim Your Seller Account
VAL-AN 910 10U Rackmount Double-Ended Opening Case - Hard Mount Aluminum Case
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

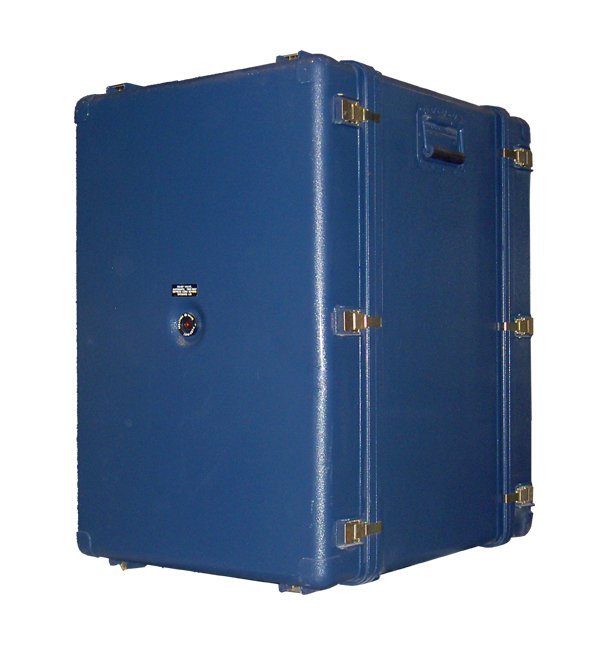

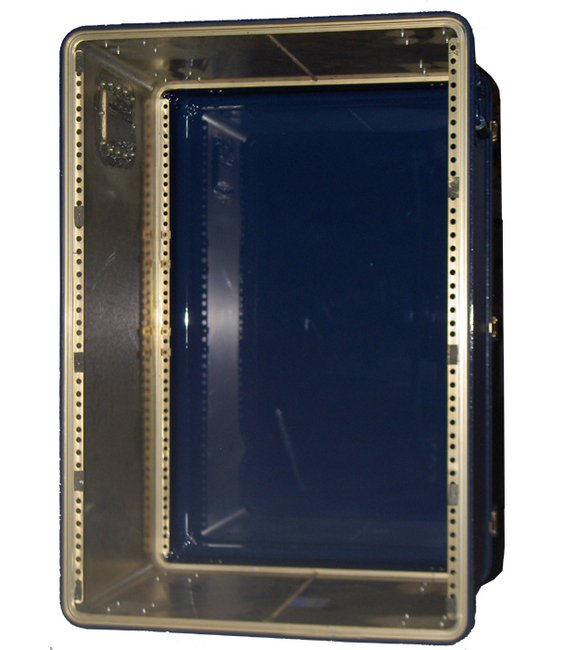

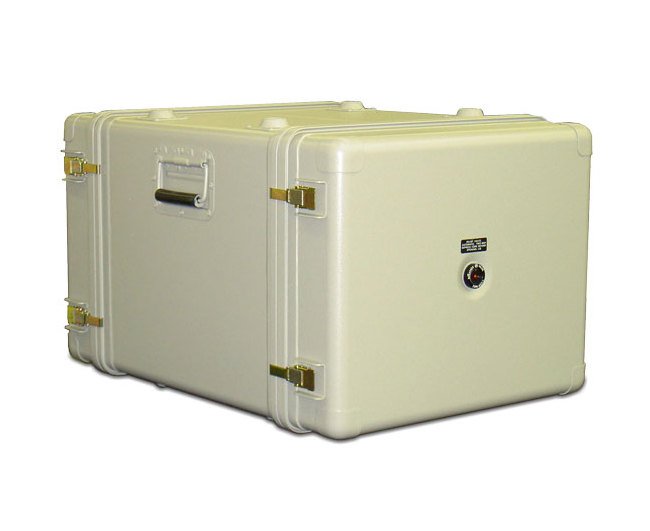

The VAL-AN 910 10U Rackmount Double-Ended Opening Case is engineered for durability and functionality. With a waterproof construction and environmentally-protected panels, this case offers front and rear access through removable covers. Meeting Mil-STD-108 requirements, this case provides a hard-mounted configuration and comes with standard spring latches. Panel heights range from 5.25" to 28.00", with a 19" panel width featuring a standard EIA hole pattern. Made in the USA with aluminum material and customizable finishes, this case ensures reliable protection for your equipment.
Product Specifications
Features Features
Hard mounted configuration.Environmentally-protected panels.Front and rear access through removable covers.Panel heights from 5.25" to 28.00".19" panel width, with standard EIA hole pattern.Waterproof Construction.Meets applicable requirements of Mil-STD-108.
Note Note
Handles:2 Required for depths of 12 to 18 inches.4 Required for depths of 19 to 36 inches.Additional latches required for watertight ("S") option.Add: 8 latches (16 total).
Specifications Customization
Any commercial or military specification can be met.Panel Fabrication:Silk ScreenCustom FabricationCase Customization:StencilingDesignation PrintingDecals/LabelsSilk Screen A free consultation with a ZERO packaging engineer can save you time and money. Knowing how to efficiently and economically dissipate the energies of shock and vibration without damage to the packaged product is a specialized pursuit. ZERO has designed and fabricated more than half a million military cases, each with its own vibration and shock isolation system. ZEROâs professional packaging engineers will share their accumulated wealth of vibration and shock isolation with you. After careful analysis of your packaging requirement, we will recommend a technique, utilizing one of the following systems: Polyurethane foam cushions Polyethylene foam cushions Shear and vibration mounts
Specifications Drip Proof Options Latch Quantity Required
8
Specifications Eia Pattern Options
C = Customer | N = None Required | P = Standard EIA #10;-32 Provided
Specifications Finish Custom
Other colors and finishes available upon request. Any commercial or military specification can be met in our completely equipped and staffed paint facility. In addition to supplying any color per FED-STD-595, RAL and PMS, ZERO can match any color.
Specifications Finish Mil Spec Options
A = No Finish. | B = Wash Prime and Epoxy Primer. | C =Light Gray, Semi-Gloss = Same as B plus Paint Polyurethane, Color No. 26307. | D = Light Gray, Gloss = Same as B plus Paint Polyurethane. Color No. 16307. | E = Yellow, Gloss = Wash Prime per DOD-P-15328 and Epoxy Primer per MIL-DTL-53022 plus Paint Polyurethane. Color No. 13538. | F = Strata Blue, Gloss = Same as B plus Paint Polyurethane, Color No. 15045. | G = Green, Semi-Gloss = Same as B plus Paint Polyurethane. Color No. 24300. | H = Olive Drab. Semi-Gloss = Same as B plus Paint Polyurethane. Color No. 24084. | J = Olive Drab, Lusterless = Same as B plus Paint Polyurethane, Color No. 34088. | K = 383 Green, Camouflage = Same as B plus Paint Aliphatic Polyurethane Coating "CARC" per MIL-DTL-53039, Color No. 34094. | S = Special Order - Please Specify. | UA = Chemical Film per MIL-DTL-5541. | W = Chemical Film per MIL-DTL-5541. Epoxy Primer per MIL-DTL-53022, or Water-base Epoxy Primer per MIL-DTL-53030. Paint with White Polyurethane Coating per MIL-PRF-85285 or Epoxy Coating per MIL-PRF-22750.
Specifications Finish Powder Coat Options Recommended
BK = Black 27038 | DB = Dark Blue 25045 | DS = Desert Sand 20372 | FG = Forest Green 24079 | GR = Gray 26307 | MB = Medium Blue 25190 | NG = NATO Green RAL6014 | OD = Olive Drab 24097 | OR = Orange 21400 | RD = Red 21105 | WH = White 27925 | YW = Yellow 23538
Specifications Handle Options
1 = Non-recessed Handle | 2 = Recessed Handle
Specifications Industry Standards
Mil-STD-108
Specifications Inside Width
17.81 in
Specifications Latch Type
Standard Spring Latches on Rear Cover | 'T' Handle Latches on Front Cover
Specifications Made In
USA
Specifications Material
Aluminum
Specifications Mat Thickness
0.063 in
Specifications Mil Spec Type
D = Drop Proof Per Mil-STD-108 | S = Watertight Per Mil-STD-108
Specifications Outside Case Height
18.37 in
Specifications Outside Cover Depth
9.13 in
Specifications Outside Depth Without Cover
12 to 36 in. (1 in. increments)
Specifications Outside Width
18.31 in
Specifications Panel Depth
12.00 to 36.00 in
Specifications Panel Height
17.5 in
Specifications Panel Height U Size
10U
Specifications Panel Options
Standard Panel Included
Specifications Panel Width
19 in
Specifications Product Series
VAL-AN 900 Series
Specifications Rack Mount Type Frame
Hard Mount
Specifications Rack Panel Part Number
-17
Specifications Stacking
Contact ZERO Design Engineers to verify weight and support required.
Specifications Standard Availability
8 to 10 Weeks
Specifications Storage Options
4 = None Required | 5 = Inner Lid Front Cover | 6 = Inner Lid Rear Cover | 7 = Inner Lid Both Covers
Specifications Valve Options
A = Automatic Valve | M = Manual Relief Valve | N = None Required
Specifications Watertight Options Latch Quantity Required
16
