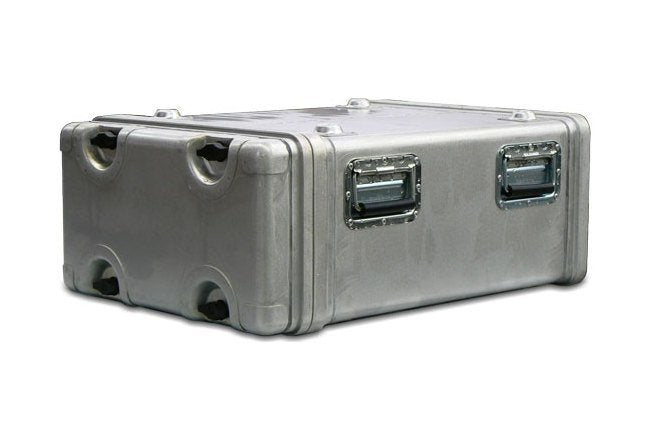

VAL-AN 915 Custom Rackmount Double-Ended Opening Case with 'T' Handle Latches

Name: VAL-AN 915 Custom Rackmount Double-Ended Opening Case with 'T' Handle Latches
Brand: ZERO Manufacturing
SKU: 19I-b3371d
Price: 399.99 USD
Availability: OutOfStock

SKU:19I-b3371d

Secure and durable VAL-AN 915 Custom Rackmount Double-Ended Opening Case with 'T' Handle Latches. Meets Mil-Spec standards for reliability and customization.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The VAL-AN 915 Custom Rackmount Double-Ended Opening Case offers a robust solution for secure equipment housing. It features 'T' Handle Latches on the front cover and standard spring latches on the rear cover. With a waterproof construction and environmentally-protected panels, this case meets the stringent requirements of Mil-STD-108 and Mil-T-28800, ensuring durability and reliability for government and institutional buyers. Customizable panel heights, a 19" width, and options for various finishes make this case versatile and adaptable to specific needs.

Product Specifications

Features Features

Hard mounted configuration.Environmentally-protected panels.Front access through removable covers.Panel heights from 5.25" to 28.00".19" panel width, with standard EIA hole pattern.Waterproof Construction.Meets applicable requirements of Mil-STD-108 and Mil-T-28800.

Note Note

Additional spring latches required for watertight ("S") option.Panel Height Dash No. 5 thru 8 add: 4 latches (6 total).Panel Height Dash No. 10 thru 17 add: 4 latches (8 total).Panel Height Dash No. 21 thru 28 add: 6 latches (10 total).Additional "T" latches required for watertight ("S") option.Panel Height Dash No. 14 thru 28 add: 2 latches.

Specifications Customization

Any commercial or military specification can be met.Panel Fabrication:Silk ScreenCustom FabricationCase Customization:StencilingDesignation PrintingDecals/LabelsSilk Screen A free consultation with a ZERO packaging engineer can save you time and money. Knowing how to efficiently and economically dissipate the energies of shock and vibration without damage to the packaged product is a specialized pursuit. ZERO has designed and fabricated more than half a million military cases, each with its own vibration and shock isolation system. ZEROâs professional packaging engineers will share their accumulated wealth of vibration and shock isolation with you. After careful analysis of your packaging requirement, we will recommend a technique, utilizing one of the following systems: Polyurethane foam cushions Polyethylene foam cushions Shear and vibration mounts

Specifications Drip Proof Options Latch Quantity Required

Custom to your specification.

Specifications Eia Pattern Options

C = Customer | N = None Required | P = Standard EIA #10;-32 Provided

Specifications Finish Custom

Other colors and finishes available upon request. Any commercial or military specification can be met in our completely equipped and staffed paint facility. In addition to supplying any color per FED-STD-595, RAL and PMS, ZERO can match any color.

Specifications Finish Mil Spec Options

A = No Finish. | B = Wash Prime and Epoxy Primer. | C =Light Gray, Semi-Gloss = Same as B plus Paint Polyurethane, Color No. 26307. | D = Light Gray, Gloss = Same as B plus Paint Polyurethane. Color No. 16307. | E = Yellow, Gloss = Wash Prime per DOD-P-15328 and Epoxy Primer per MIL-DTL-53022 plus Paint Polyurethane. Color No. 13538. | F = Strata Blue, Gloss = Same as B plus Paint Polyurethane, Color No. 15045. | G = Green, Semi-Gloss = Same as B plus Paint Polyurethane. Color No. 24300. | H = Olive Drab. Semi-Gloss = Same as B plus Paint Polyurethane. Color No. 24084. | J = Olive Drab, Lusterless = Same as B plus Paint Polyurethane, Color No. 34088. | K = 383 Green, Camouflage = Same as B plus Paint Aliphatic Polyurethane Coating "CARC" per MIL-DTL-53039, Color No. 34094. | S = Special Order - Please Specify. | UA = Chemical Film per MIL-DTL-5541. | W = Chemical Film per MIL-DTL-5541. Epoxy Primer per MIL-DTL-53022, or Water-base Epoxy Primer per MIL-DTL-53030. Paint with White Polyurethane Coating per MIL-PRF-85285 or Epoxy Coating per MIL-PRF-22750.

Specifications Finish Powder Coat Options Recommended

Specifications Handle Options

1 = Non-recessed Handle | 2 = Recessed Handle

Specifications Industry Standards

Mil-STD-108 | Mil-T-28800

Specifications Inside Width

17.81 in

Specifications Latch Type

B = Both covers 'T' latch | F = Recessed 'T' latch (Spring latch rear cover)

Specifications Made In

USA

Specifications Material

Aluminum

Specifications Mat Thickness

0.063 in

Specifications Mil Spec Type

D = Drop Proof Per Mil-STD-108 | S = Watertight Per Mil-STD-108

Specifications Outside Case Height

Custom to your specification.

Specifications Outside Cover Depth

B = 3.25 in | F = 4.25 in

Specifications Outside Depth Without Cover

12 to 36 in. (1 in. increments)

Specifications Outside Width

18.31 in

Specifications Panel Depth

12.00 to 36.00 in

Specifications Panel Height

Custom to your specification.

Specifications Panel Height U Size

Custom to your specification.

Specifications Panel Options

Standard Panel Included.

Specifications Panel Width

19 in

Specifications Product Series

VAL-AN 900 Series

Specifications Rack Mount Type Frame

Hard Mount

Specifications Rack Panel Part Number

-X

Specifications Stacking

Contact ZERO Design Engineers to verify weight and support required.

Specifications Standard Availability

8 to 10 Weeks

Specifications Storage Options

4 = None Required | 6 = Pouch (Rear Cover Only)

Specifications Valve Options

A = Automatic Valve | M = Manual Relief Valve | N = None Required

Specifications Watertight Options Latch Quantity Required

Custom to your specification.
