Val-An 930 Double-Ended Opening Rackmount Case
Val-An 930 Double-Ended Opening Rackmount Case
SKU:19I-2eab96
Rugged Val-An 930 Double-Ended Opening Rackmount Case for secure and versatile storage. Meets Mil-STD-108 and Mil-T-28800 standards.
Regular price
$549.99
Regular price
Sale price
$549.99
Unit price
per
Initiate Order
Val-An 930 Double-Ended Opening Rackmount Case
$549.99
Quantity: 1
Claim Your Seller Account
Val-An 930 Double-Ended Opening Rackmount Case
$549.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

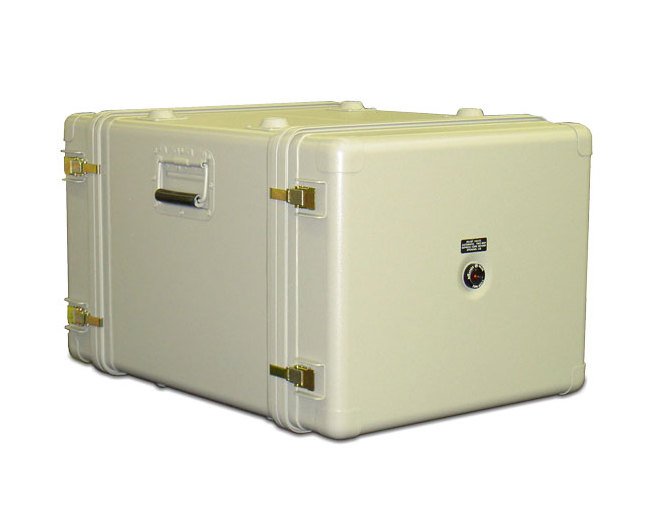

The Val-An 930 Double-Ended Opening Rackmount Case is a rugged solution designed for both front and rear access, featuring environmentally-protected panels and a hard-mounted configuration. With panel heights ranging from 5.25" to 28.00", this case meets the stringent requirements of Mil-STD-108 and Mil-T-28800. Made in the USA from aluminum, it offers waterproof construction and customizable finishes to meet commercial or military specifications. With options for valve types, rack mounting, panel heights, and finishes, this case provides versatility and durability for various institutional and government applications.
Product Specifications
Features Features
Hard mounted configuration.Environmentally-protected panels.Front and rear access through removable covers.Panel heights from 5.25" to 28.00".19" panel width, with standard EIA hole pattern.Waterproof Construction.Meets applicable requirements of Mil-STD-108 and Mil-T-28800.
Note Note
Handles:2 Required for depths of 12 to 18 inches.4 Required for depths of 19 to 36 inches.Additional latches required for watertight ("S") option.Add: 4 latches (8 total).
Specifications Customization
Any commercial or military specification can be met.Panel Fabrication:Silk ScreenCustom FabricationCase Customization:StencilingDesignation PrintingDecals/LabelsSilk Screen A free consultation with a ZERO packaging engineer can save you time and money. Knowing how to efficiently and economically dissipate the energies of shock and vibration without damage to the packaged product is a specialized pursuit. ZERO has designed and fabricated more than half a million military cases, each with its own vibration and shock isolation system. ZEROâs professional packaging engineers will share their accumulated wealth of vibration and shock isolation with you. After careful analysis of your packaging requirement, we will recommend a technique, utilizing one of the following systems: Polyurethane foam cushions Polyethylene foam cushions Shear and vibration mounts
Specifications Drip Proof Options Latch Quantity Required
8
Specifications Eia Pattern Options
C = Customer | N = None Required | P = Standard EIA #10;-32 Provided
Specifications Finish Custom
Other colors and finishes available upon request. Any commercial or military specification can be met in our completely equipped and staffed paint facility. In addition to supplying any color per FED-STD-595, RAL and PMS, ZERO can match any color.
Specifications Finish Mil Spec Options
A = No Finish. | B = Wash Prime and Epoxy Primer. | C =Light Gray, Semi-Gloss = Same as B plus Paint Polyurethane, Color No. 26307. | D = Light Gray, Gloss = Same as B plus Paint Polyurethane. Color No. 16307. | E = Yellow, Gloss = Wash Prime per DOD-P-15328 and Epoxy Primer per MIL-DTL-53022 plus Paint Polyurethane. Color No. 13538. | F = Strata Blue, Gloss = Same as B plus Paint Polyurethane, Color No. 15045. | G = Green, Semi-Gloss = Same as B plus Paint Polyurethane. Color No. 24300. | H = Olive Drab. Semi-Gloss = Same as B plus Paint Polyurethane. Color No. 24084. | J = Olive Drab, Lusterless = Same as B plus Paint Polyurethane, Color No. 34088. | K = 383 Green, Camouflage = Same as B plus Paint Aliphatic Polyurethane Coating "CARC" per MIL-DTL-53039, Color No. 34094. | S = Special Order - Please Specify. | UA = Chemical Film per MIL-DTL-5541. | W = Chemical Film per MIL-DTL-5541. Epoxy Primer per MIL-DTL-53022, or Water-base Epoxy Primer per MIL-DTL-53030. Paint with White Polyurethane Coating per MIL-PRF-85285 or Epoxy Coating per MIL-PRF-22750.
Specifications Finish Powder Coat Options Recommended
BK = Black 27038 | DB = Dark Blue 25045 | DS = Desert Sand 20372 | FG = Forest Green 24079 | GR = Gray 26307 | MB = Medium Blue 25190 | NG = NATO Green RAL6014 | OD = Olive Drab 24097 | OR = Orange 21400 | RD = Red 21105 | WH = White 27925 | YW = Yellow 23538
Specifications Handle Options
1 = Non-recessed Handle | 2 = Recessed Handle
Specifications Industry Standards
Mil-STD-108 | Mil-T-28800
Specifications Inside Width
17.81 in
Specifications Latch Type
Standard Spring-Loaded Latches
Specifications Made In
USA
Specifications Material
Aluminum
Specifications Mat Thickness
0.063 in
Specifications Mil Spec Type
A = MIL-T-28800, Style A | D = Drop Proof Per Mil-STD-108 | S = Watertight Per Mil-STD-108
Specifications Outside Case Height
19.19 in
Specifications Outside Cover Depth
9.13 in
Specifications Outside Depth Without Cover
12 to 36 in. (1 in. increments)
Specifications Outside Width
18.31 in
Specifications Panel Depth
12.00 to 36.00 in
Specifications Panel Height
17.5 in
Specifications Panel Height U Size
10U
Specifications Panel Options
N = Without Panel | P = With Panel (Required for Mil-T-28800)
Specifications Panel Width
19 in
Specifications Product Series
VAL-AN 900 Series
Specifications Rack Mount Type Frame
Hard Mount
Specifications Rack Panel Part Number
-17
Specifications Stacking
Contact ZERO Design Engineers to verify weight and support required.
Specifications Standard Availability
8 to 10 Weeks
Specifications Storage Options
4 = None Required | 5 = Inner Lid Front Cover | 6 = Inner Lid Rear Cover | 7 = Inner Lid Both Covers
Specifications Valve Options
A = Automatic Valve | M = Manual Relief Valve | N = None Required
Specifications Watertight Options Latch Quantity Required
16
