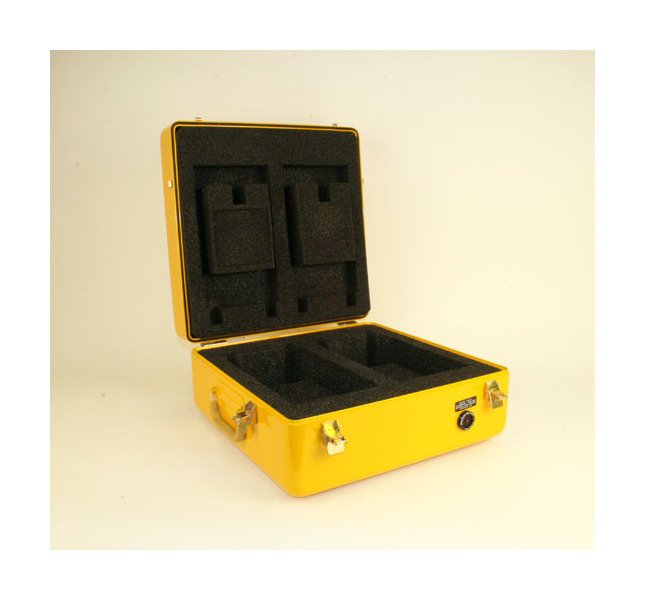

• VAL-AN Transit Case - Image 1

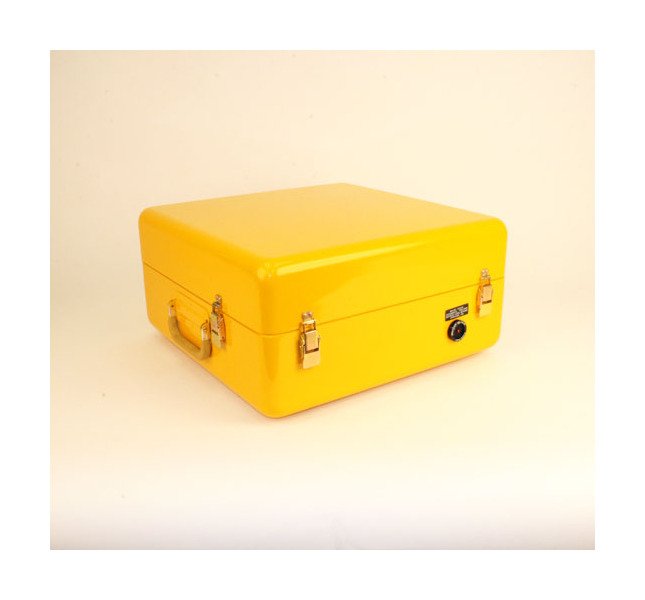

  • VAL-AN Transit Case - Image 2

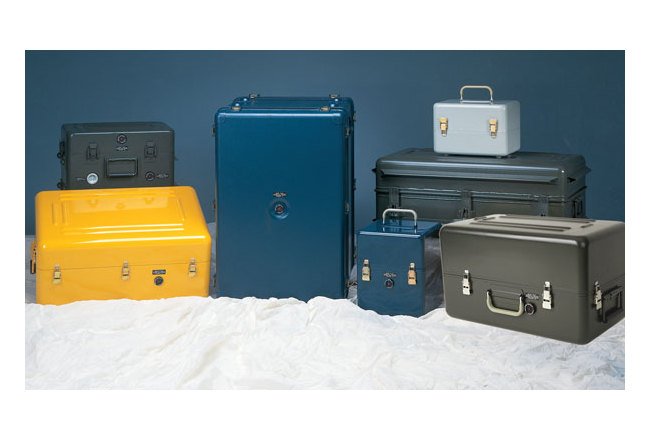

  • VAL-AN Transit Case - Image 3

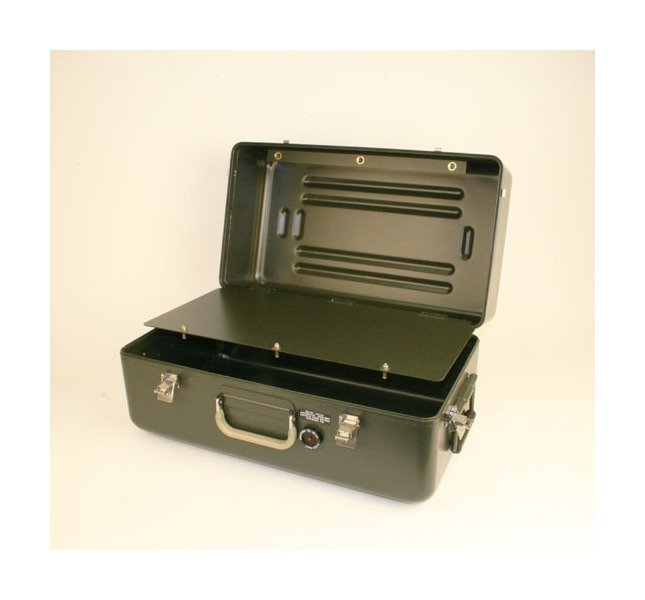

  • VAL-AN Transit Case - Image 4

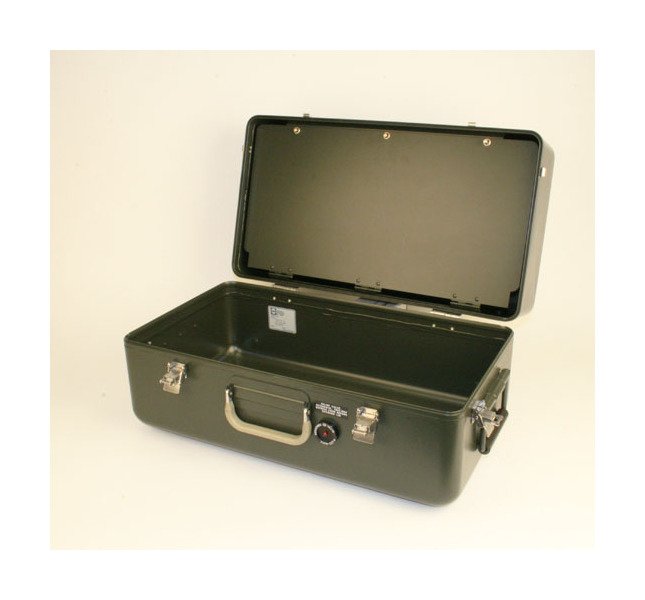

  • VAL-AN Transit Case - Image 5
1 5
ZERO Manufacturing →

VAL-AN Transit Case

VAL-AN Transit Case

TRA-b5951e

Premium VAL-AN Transit Case for secure transport of equipment, meeting MIL-STD-108. Customizable with various closure options.

$349.99
$349.99
Sale

Initiate Order

VAL-AN Transit Case

VAL-AN Transit Case

$349.99

Quantity: 1

Claim Your Seller Account

VAL-AN Transit Case

VAL-AN Transit Case

$349.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The VAL-AN Transit Case from the Val-An series is a high-quality solution for transporting delicate instruments and equipment. Built with seamless, deep-drawn 6061 aluminum alloy, this case meets MIL-STD-108 for watertight construction. It offers a variety of closure types, finishes, and customization options to suit diverse needs. With features like continuous mating gasketed closures, spring-loaded latches, and pressure relief valves, this case ensures secure and reliable protection for your valuable items.

Product Specifications

Case Types Case Types
1 = Combination Case - No feet on rear except when handle is on front. Latches on case with strikes on cover. Separable hinges.2 = Transit Case - No feet on rear except when handle is on front. Latches on cover with strikes on case. Non separable hinges.3 = Instrument Case - Feet on rear and bottom in all situations. Latches on case with strikes on cover. Separable hinges.
Features Features
52 width and length combinations and many depths to choose fromWater-tight construction meets MIL-STD-108Made from seamless, deep drawn aluminum shellsPressure relief valveChoice of closure type, panel flange and inner lidChoice of finishChoice of inner panel
Finish Notes Finish Notes
Finish interior and exterior except: hinges, seal, valve, label, inner lid fastener, and pins.Latches and handles are to be finished as follows:Latches:ZSP2-204: Do not finish (entire latch assembly)ZSP2-224, ZSP2-229, ZSP2-230, ZP20306: Finish except latch body and pinHandles: ZSP3-304: Finish except grip and bail ZP20136, ZP20137: Finish except gripIf EMI gasket is used:Finishes B thru K: Instead of wash prime, use chem film per MIL-DTL-5541, type 1, class 3Finish UA and W: Chem film to be class 3 instead of 1APowder coatings: Before powder coat, chem film per MIL-DTL-5541, type, class 3See referencing top assembly drawing for masking detailsAll paint is to be smoothPowder coat to be avoided in use with chem film
Finish Options Finish Options
POWDERCOAT PAINT (RECOMMENDED)OD - Olive Drab - Epoxy powder coat, color No.24097 of FED-STD-595BK - Black - Epoxy powder coat, color No. 27040 of FED-STD-595DB - Dark Blue - Epoxy powder coat, color No. 25102 of FED-STD-595DS - Desert Sand - Epoxy powder coat, color No.20372 of FED-STD-595FG - Forest Green - Epoxy powder coat, color No. 24052 of FED-STD-595GR - Gray - Epoxy powder coat, color No. 26270 of FED-STD-595MB - Medium Blue - Epoxy powder coat, color No. 25190 of FED-STD-595NG - NATO Green - Epoxy powder coat, color No. RAL6014 OR - Orange - Epoxy powder coat, color No. 21400 of FED-STD-595RD - Red - Epoxy powder coat, color No. 21105 of FED-STD-595WH - White - Epoxy powder coat, color No. 27925 of FED-STD-595YW - Yellow - Epoxy powder coat, color No. 23785 of FED-STD-595MIL-SPEC FINISHESA = No Finish.UA = Chem Film per MIL-DTL-5541, Type1, Class 1A.B = Wash prime per DOD-P-15328. Epoxy primer per MIL-PRF-23377, Type 1, Class C2.C =Light Gray, Semi-gloss = Same as B plus paint polyurethane, color No. 26307 of FED-STD-595.D = Light Gray, Gloss = Same as B plus paint polyurethane, color No. 16307 of FED-STD-595.E = Yellow, Gloss = Wash prime per DOD-P-15328. Epoxy primer per MIL-DTL-53022, Type 11. Plus paint polyurethane, color No. 13538 of FED-STD-595.F = Strata Blue, Gloss = Same as B plus paint polyurethane, color No. 15045 of FED-STD-595.G = Green, Semi-gloss = Same as B plus paint polyurethane, color No. 24300 of FED-STD-595.H = Olive Drab, Semi-gloss = Same as B plus paint polyurethane, color No. 24084 of FED-STD-595.J = Olive Drab, Lusterless = Same as B plus paint polyurethane, color No. 34088 of FED-STD-595.K = 383 Green, Camouflage = Same as B plus paint All phatic polyurethane coating (CARC) per MIL-DTL-53039, type 111, color No. 34094 of FED-STD-595.S = Special Order – Please specify.W = White, Gloss = Chem film per MIL-DTL-5541, type 1, class 1A. Epoxy primer per MIL-DTL-53022, type 11, or waterbase epoxy primer per MIL-DTL-53030, type 1. Paint with polyurethane coating per MIL-PRF-85285, type 11, class H, or epoxy coating per MIL-PRF-22750. Color No 17925 of FED-STD-595.
General Specifications General Specifications
Continuous mating gasketed extruded closuresHandles meet or exceed military specifications and are located for ease of carrying caseHinged inner lid assemblies are available on a case by case situationOptional panel flange with nut plates and neoprene gasketChoice of manual or automatic pressure relief valveSpring loaded latches tested to 400 pounds pull are located to insure watertight integrity
Note Note
To determine approximate weights for any of the cases, multiply the square foot area of the case, including inner lid if any, by 0.889 lbs. per square foot for 0.063 cases add 1.27 lbs. per square foot for 0.090 cases. Add to this the sum of the weights of the latches, hinges, and handles.
Note Note For Dimensions
Width, Length and Height are exterior dimensions measured at points of tangency at bottom, top and sides.
Specifications Closure Type X Dimension
C & D 0.020 | E & F 0.281 | G & H 0.875
Specifications Customization
Any commercial or military specification can be met.Panel Fabrication:Silk ScreenCustom FabricationCase Customization:StencilingDesignation PrintingDecals/LabelsSilk ScreenA free consultation with a ZERO packaging engineer can save you time and money. Knowing how to efficiently and economically dissipate the energies of shock and vibration without damage to the packaged product is a specialized pursuit. ZERO has designed and fabricated more than half a million military cases, each with its own vibration and shock isolation system. ZERO’s professional packaging engineers will share their accumulated wealth of vibration and shock isolation with you. After careful analysis of your packaging requirement, we will recommend a technique, utilizing one of the following systems:Polyurethane foam cushionsPolyethylene foam cushionsShear and vibration mounts
Specifications Hinged Inner Lid Options
Yes
Specifications Length
9.00 in
Specifications Made In
USA
Specifications Material
6061 Deep Drawn Aluminum Alloy
Specifications Maximum Base H2
7.25 in
Specifications Maximum Lid H1
7.25 in
Specifications Mil Spec
Meets MIL-STD-108
Specifications Minimum Base H2
3.5 in
Specifications Minimum Lid H1
3.25 in
Specifications Optional Panel Part Number
ZP21740-13
Specifications Panel Options
Blank = Not Required | P = Panel and #10;-32 Mounting Screws
Specifications Standard Availability
Custom: 8 Weeks | Standard Val-An: 6 Weeks
Specifications Valve Options
A - Automatic | M - Manual | N - No Valve
Specifications Width
7.00 in
