Valuline™ ZIP 800 Series Aluminum Instrument Carry Case
Valuline™ ZIP 800 Series Aluminum Instrument Carry Case
SKU:CAR-163f25
Sturdy Valuline™ ZIP 800 Series Aluminum Instrument Carry Case with versatile customization options. Made in the USA.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Valuline™ ZIP 800 Series Aluminum Instrument Carry Case
$79.99
Quantity: 1
Claim Your Seller Account
Valuline™ ZIP 800 Series Aluminum Instrument Carry Case
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

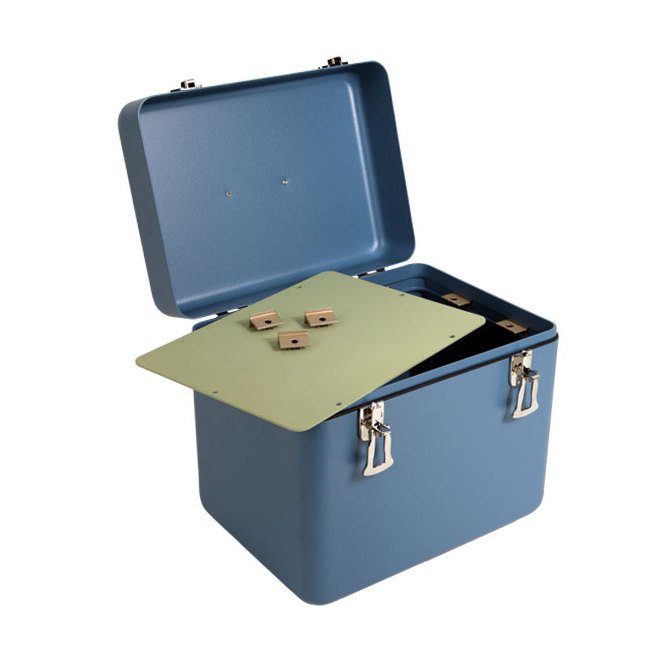

The Valuline™ ZIP 800 Series Instrument Carry Case is a sturdy and versatile solution for packaging electronic and instrumentation equipment. Constructed of deep drawn aluminum shells with a seamless design, this case features full gasketed closure and internal panel mounting options for added customization. The case is made in the USA with an aluminum alloy material, featuring nickel-plated latches and steel hinges. With custom sizes available without tooling charges, this case meets institutional procurement standards for durability, customization, and environmental protection.
Product Specifications
Additional Information Additional Information
Most versatile series of the Valuline⢠casesFully gasketed closure of extruded aluminum, spot - welded to the interior case shell.Permits installation of optional panel support brackets.Permits full size primed panel (order separately). O - ring gasket provides additional environmental protection.
Customization Case Customization
Decals/Labels | Designation Printing | Silk Screen | Stenciling
Customization Custom Sizes
You may design a case from the standard sizes of deep drawn enclosures in the Deep Drawn Catalog.Hardware to your specifications.Secondary operations available.
Customization Panel Fabrication
Custom Fabrication | Silk Screen
Dimensions Inside R1
0.59 in
Dimensions Inside R2
0.59 in
Dimensions Mat Thickness
0.063 in
Dimensions Outside H1
2.50 in
Dimensions Outside H2
9.00 in
Dimensions Outside Length
13.25 in
Dimensions Outside Width
9.19 in
Dimensions Thickness
0.060 in
Specifications Alloy
6061-0
Specifications Finish Custom
BK - Black 27038 | Custom FED-STD-595, RAL, Pantone matching system or special also available. | DB - Dark Blue 25045 | DS - Desert Sand 20372 | FED-STD-595 for Reference | FG - Forest Green 24079 | GR - Gray 26307 | MB - Medium Blue 25190 | NG - NATO Green RAL6014 | OD - Olive Drab 24097 | OR - Orange 21400 | RD - Red 21105 | WH - White 27925 | YW - Yellow 23538
Specifications Front Latch Quantity
2 in
Specifications Hinges
2
Specifications Made In
USA
Specifications Panel Number
ZP9178 - 40
Specifications Series
Valuline⢠ZIP 800 Series
Specifications Standard Availability
Custom: 4 weeks | In-Stock: 1 Week
Specifications Standard Finish Inside And Outside Except Hardwar
MB Textured Medium Blue Powder Coat, Color No. 25190
Specifications Standard Mounting Brackets
6
Specifications Tolerances
0.06 in
Specifications Weight
5.60 lb
Standard Features Standard Features
Material: Aluminum Alloy.Latches: Zamak #7; - Nickel Plated.Hinges: Riveted - nickel plated steel. Separable on all styles.Handle: Black molded plastic with nickel plated hardware.Feet: Integral DimpledPanels: Aluminum with chemical film finish.Material Thickness 0.090"Tolerances: ± 0.06"
