Valuline ZC 7000 Series Aluminum Instrument Carry Case
Valuline ZC 7000 Series Aluminum Instrument Carry Case
SKU:CAR-a44085
Secure and versatile Valuline ZC 7000 Aluminum Instrument Case for electronics, electro-mechanical, or instrumentation equipment.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Valuline ZC 7000 Series Aluminum Instrument Carry Case
$129.99
Quantity: 1
Claim Your Seller Account
Valuline ZC 7000 Series Aluminum Instrument Carry Case
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

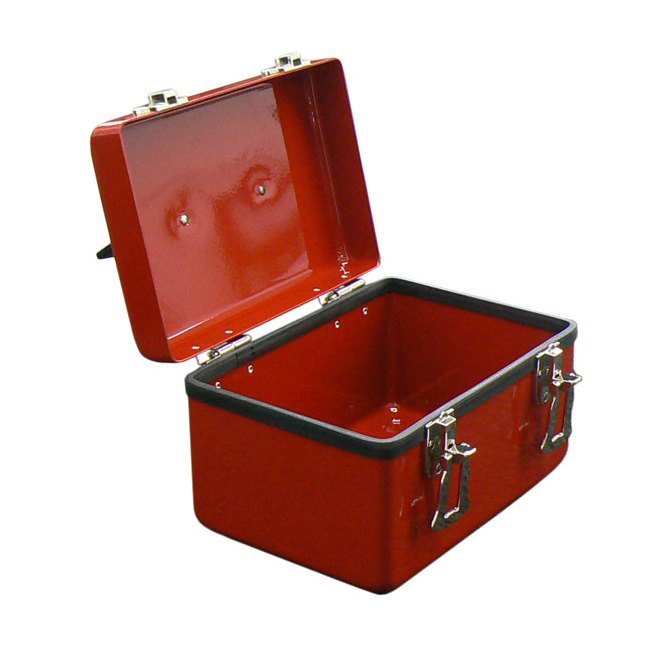

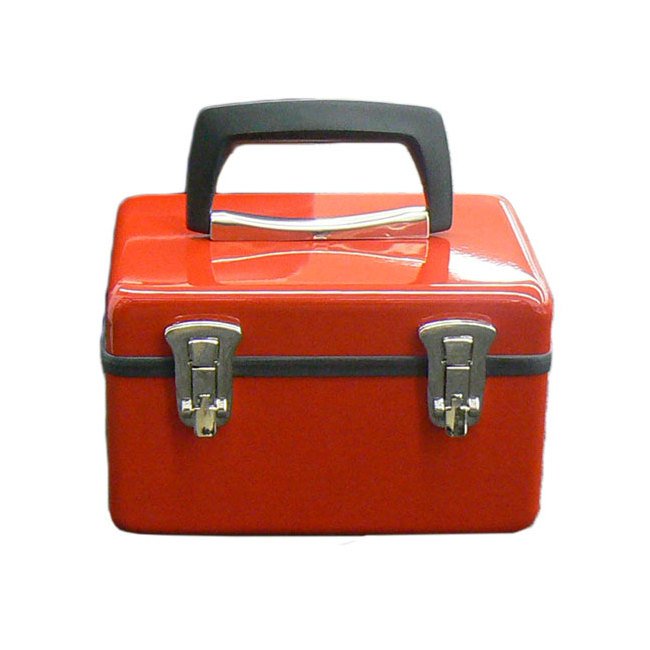

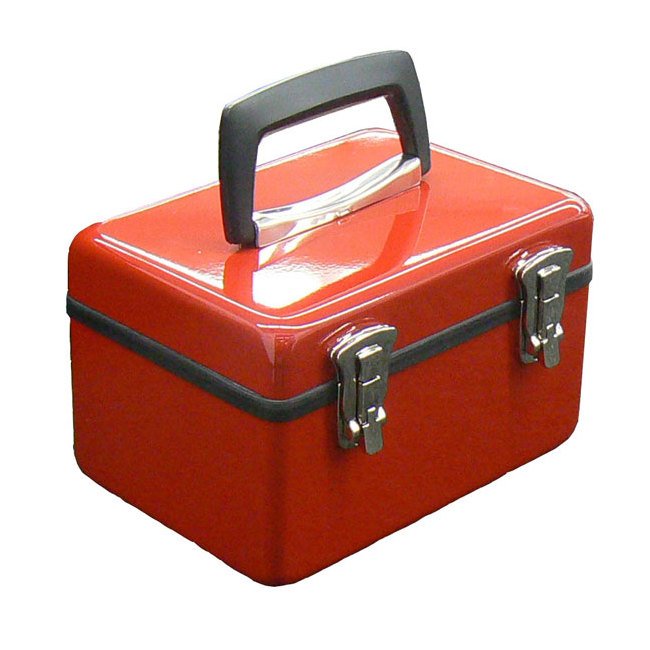

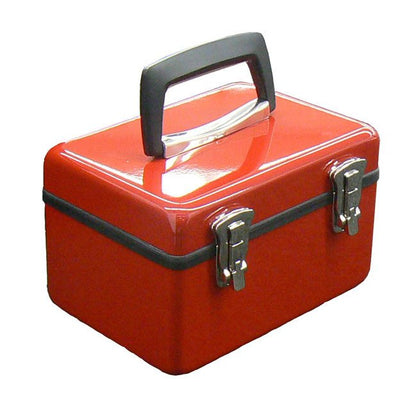

The Valuline ZC 7000 Series Aluminum Instrument Carry Case offers a blend of durability and versatility. Crafted from seamless deep drawn aluminum shells, this case features separable hinges, fully gasketed closures, and customizable panel mounting options. With a black molded plastic handle, integral feet, and nickel-plated hardware, it ensures secure transport for electronic, electro-mechanical, or instrumentation equipment. Made in the USA with standard finishes in powder-coated medium blue, this case is available in various sizes without tooling charges, making it a cost-effective choice for safeguarding your valuable instruments.
Product Specifications
Additional Information Additional Information
Most economical of the Valuline⢠casesAvailable in 11 off - the - shelf sizesZC 7000 Series include separable hingesAll cases feature fully gasketed, bonded closures which fit over the edge of the lower shell
Customization Case Customization
Decals/Labels | Designation Printing | Silk Screen | Stenciling
Customization Custom Sizes
You may design a case from the standard sizes of deep drawn enclosures in the Deep Drawn Catalog.Hardware to your specifications.Secondary operations available.
Customization Panel Fabrication
Custom Fabrication | Silk Screen
Dimensions Inside R1
0.31 in
Dimensions Inside R2
0.31 in
Dimensions Mat Thickness
0.063 in
Dimensions Outside H1
1.25 in
Dimensions Outside H2
4.66 in
Dimensions Outside Length
9.00 in
Dimensions Outside Width
6.00 in
Dimensions Thickness
0.060 in
Specifications Alloy
6061-0
Specifications Finish Custom
BK - Black 27038 | Custom FED-STD-595, RAL, Pantone matching system or special also available. | DB - Dark Blue 25045 | DS - Desert Sand 20372 | FED-STD-595 for Reference | FG - Forest Green 24079 | GR - Gray 26307 | MB - Medium Blue 25190 | NG - NATO Green RAL6014 | OD - Olive Drab 24097 | OR - Orange 21400 | RD - Red 21105 | WH - White 27925 | YW - Yellow 23538
Specifications Front Latch Quantity
2 in
Specifications Made In
USA
Specifications Series
Valuline⢠ZC 7000 Series
Specifications Standard Availability
Custom: 5 weeks | Standard: 4 weeks
Specifications Standard Finish Inside And Outside Except Hardwar
MB Textured Medium Blue Powder Coat, Color No. 25190
Specifications Tolerances
0.06 in
Specifications Weight
2.20 lb
Standard Features Standard Features
Material: Aluminum Alloy.Latches: Zamak #7; - Nickel Plated.Hinges: Riveted - nickel plated steel. Separable on all styles.Handle: Black molded plastic with nickel plated hardware.Feet: Integral DimpledPanels: Aluminum with chemical film finish.Material Thickness 0.090"Tolerances: ± 0.06"
