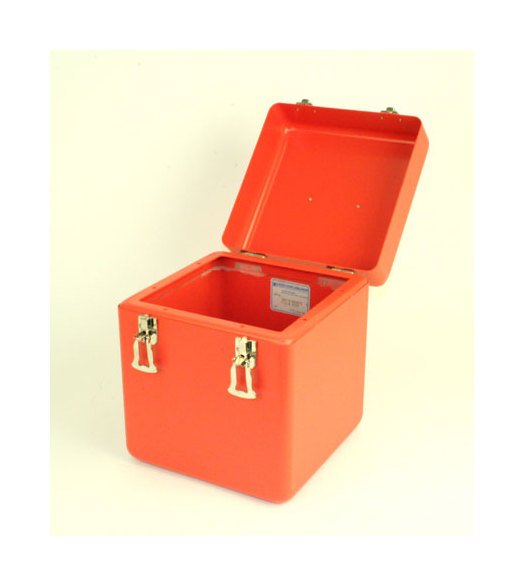

The Valuline⢠ZIC 600 Series Instrument Carry Case offers unmatched durability and versatility for packaging electronic, electro-mechanical, or instrumentation equipment. Constructed with deep drawn aluminum shells featuring seamless design, this case includes Zamak #7 nickel-plated latches, riveted nickel-plated steel hinges, and a black molded plastic handle. With a chemical film finish panel and a variety of color options, this case is both rugged and customizable. Made in the USA with precise tolerances, this case is ideal for protecting valuable equipment during transportation. Design your custom case from standard sizes in just 4-5 weeks without any tooling charges.
Product Specifications
Additional Information Additional Information
Spot - welded, pre - drilled panel flangeThreaded inserts installed to accept a full - sized panelIncludes a chemical film finish panel with basic caseFinish: 13 powder coat paint finishes or custom
Dimensions Dimension C
0.250 in
Dimensions Dimension P
7.38 in
Dimensions Dimension S
7.38 in
Dimensions Inside R1
0.50 in
Dimensions Inside R2
0.50 in
Dimensions Mat Thickness
0.063 in
Dimensions Outside H1
2.50 in
Dimensions Outside H2
8.00 in
Dimensions Outside Length
9.00 in
Dimensions Outside Width
9.00 in
Dimensions Thickness
0.060 in
Specifications Alloy
6061-0
Specifications Finish Custom
BK - Black 27038 | Custom FED-STD-595, RAL, Pantone matching system or special also available. | DB - Dark Blue 25045 | DS - Desert Sand 20372 | FED-STD-595 for Reference | FG - Forest Green 24079 | GR - Gray 26307 | MB - Medium Blue 25190 | NG - NATO Green RAL6014 | OD - Olive Drab 24097 | OR - Orange 21400 | RD - Red 21105 | WH - White 27925 | YW - Yellow 23538
Specifications Made In
USA
Specifications Series
Valuline⢠ZIC 600 Series
Specifications Size Panel
8.50 x 8.50 in
Specifications Standard Availability
Custom: 5 weeks | Standard: 4 weeks
Specifications Standard Finish Inside And Outside Except Hardwar
MB Textured Medium Blue Powder Coat, Color No. 25190
Specifications Tolerances
0.06 in
Specifications Weight
4.70 lb
Standard Features Standard Features
Material: Aluminum Alloy.Latches: Zamak #7; - Nickel Plated.Hinges: Riveted - nickel plated steel. Separable on all styles.Handle: Black molded plastic with nickel plated hardware.Feet: Integral DimpledPanels: Aluminum with chemical film finish.Material Thickness 0.090"Tolerances: ± 0.06"
