Valuline⢠ZIP 800 Series Instrument Carry Case
Valuline⢠ZIP 800 Series Instrument Carry Case
SKU:CAR-c5a52f
Secure your instruments with the Valulineâ„¢ ZIP 800 Series Case, offering unmatched durability, versatility, and environmental protection.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Valuline⢠ZIP 800 Series Instrument Carry Case
$79.99
Quantity: 1
Claim Your Seller Account
Valuline⢠ZIP 800 Series Instrument Carry Case
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

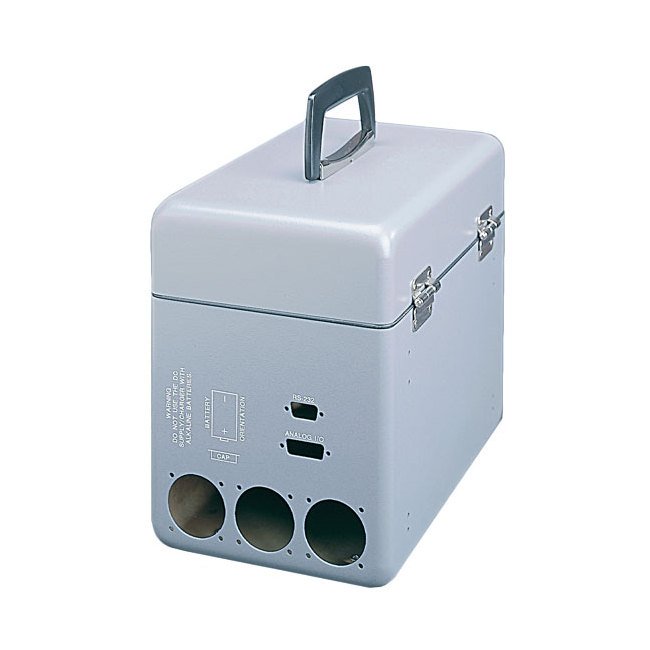

The Valulineâ„¢ ZIP 800 Series Instrument Carry Case is a top choice for securely packaging electronic, electro-mechanical, or instrumentation equipment. Made in the USA with deep drawn aluminum shells and customizable options, this case offers unmatched durability and protection. Featuring gasketed closure for environmental assurance, optional panel support brackets, and a full-size primed panel compatibility, this case is versatile and reliable for various applications. With a medium blue powder coat finish and precision engineering, the Valulineâ„¢ ZIP 800 Series sets the standard for instrument carrying cases.
Product Specifications
Additional Information Additional Information
Most versatile series of the Valuline⢠casesFully gasketed closure of extruded aluminum, spot - welded to the interior case shell.Permits installation of optional panel support brackets.Permits full size primed panel (order separately). O - ring gasket provides additional environmental protection.
Customization Case Customization
Decals/Labels | Designation Printing | Silk Screen | Stenciling
Customization Custom Sizes
You may design a case from the standard sizes of deep drawn enclosures in the Deep Drawn Catalog.Hardware to your specifications.Secondary operations available.
Customization Panel Fabrication
Custom Fabrication | Silk Screen
Dimensions Inside R1
0.88 in
Dimensions Inside R2
0.88 in
Dimensions Mat Thickness
0.063 in
Dimensions Outside H1
2.50 in
Dimensions Outside H2
7.00 in
Dimensions Outside Length
14.00 in
Dimensions Outside Width
8.00 in
Dimensions Thickness
0.060 in
Specifications Alloy
6061-0
Specifications Finish Custom
BK - Black 27038 | Custom FED-STD-595, RAL, Pantone matching system or special also available. | DB - Dark Blue 25045 | DS - Desert Sand 20372 | FED-STD-595 for Reference | FG - Forest Green 24079 | GR - Gray 26307 | MB - Medium Blue 25190 | NG - NATO Green RAL6014 | OD - Olive Drab 24097 | OR - Orange 21400 | RD - Red 21105 | WH - White 27925 | YW - Yellow 23538
Specifications Front Latch Quantity
2 in
Specifications Hinges
2
Specifications Made In
USA
Specifications Panel Number
ZP9178 - 20
Specifications Series
Valuline⢠ZIP 800 Series
Specifications Standard Availability
Custom: 5 weeks | Standard: 4 weeks
Specifications Standard Finish Inside And Outside Except Hardwar
MB Textured Medium Blue Powder Coat, Color No. 25190
Specifications Standard Mounting Brackets
6
Specifications Tolerances
0.06 in
Specifications Weight
4.80 lb
Standard Features Standard Features
Material: Aluminum Alloy.Latches: Zamak #7; - Nickel Plated.Hinges: Riveted - nickel plated steel. Separable on all styles.Handle: Black molded plastic with nickel plated hardware.Feet: Integral DimpledPanels: Aluminum with chemical film finish.Material Thickness 0.090"Tolerances: ± 0.06"
