Valve Jet Controller System VX32
Valve Jet Controller System VX32
SKU:ALL-12abe6
Experience efficiency and precision with the Valve Jet Controller System VX32 by IMark. Multilingual support, user-friendly interface, and advanced features for top-notch marking performance.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Valve Jet Controller System VX32
$1,899.99
Quantity: 1
Claim Your Seller Account
Valve Jet Controller System VX32
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

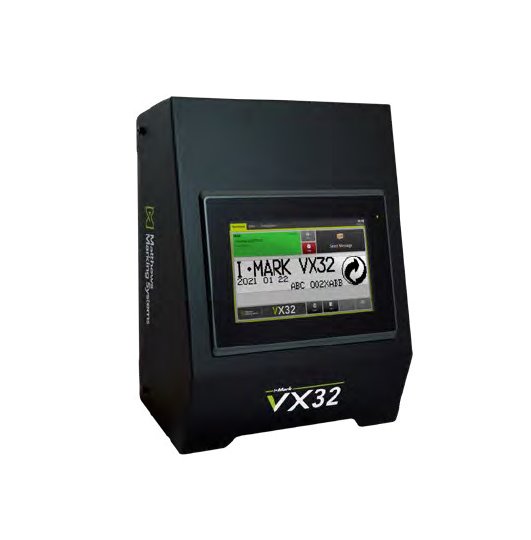

The Valve Jet Controller System VX32 by IMark is a high-performance controller designed for Matthews Marking System's top-of-the-line valve jet printheads. Featuring a 7" touchscreen and intuitive user interface, it streamlines message creation and layout design. With support for multiple languages, bidirectional text, and a wide character set, it ensures seamless global compatibility. The VX32 offers easy installation, password-protected user levels, troubleshooting assistance, and extensive storage capacity. This system is ideal for high-speed, high-quality marking in diverse industrial applications.
Product Specifications
Capabilities Capabilities
Very easy, guided installationTrue Multilingual, including BIDI, Japanese and ChinesePassword protected user levelsTroubleshooting and MaintenanceVirtually unlimited storage for and logosExternal communication via or RS232Easy backup, restore and software update over USBOptimized fonts with a wide character set for global applicationsOnline cost-per-mark and ink usage calculatorStatic and dynamic text fieldsUser-editable variable fields customizable date, time and shift codesCustomizable sequential and batch countersBarcodes and 2D codes
Features Features
8000+ Series printheads deliver low ink consumption with high print quality at high speedsMulti-lingual with support for bidirectional text, Japanese and Chinese IME
Note Note
Also supports Matthews DOD Standard Series
Recommended Ink Systems Recommended Ink Systems
High Pressure (HP), 2x1 LitersHigh Pressure (HP) Advanced, 2x1 Liters with built-in low-level alarm
Technical Specs Alternating Current Ac Voltage
100 to 240 V
Technical Specs Current
2 A | 5 A
Technical Specs Frequency
50 to 60 Hz
Technical Specs Non Condensing Relative Humidity Rh
10 to 90 %
Technical Specs Printheads Type
1 x 32 Valve | 2 x 16 Valve | 4 x 7 Valve
Technical Specs Protection Class
Ingress Protection (IP42)
Technical Specs Temperature Range
0 to 45 ºC | 32 to 113 ºF
Technical Specs Touchscreen
7 in
Technical Specs Weight
3.9 kg | 8.6 lb
