Variable Wrap Angle Load Pins
Variable Wrap Angle Load Pins
SKU:LOA-cf0241
Accurately measure line tension with Variable Wrap Angle Load Pins, designed for sheave applications with superior performance and reliability.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Variable Wrap Angle Load Pins
$299.99
Quantity: 1
Claim Your Seller Account
Variable Wrap Angle Load Pins
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

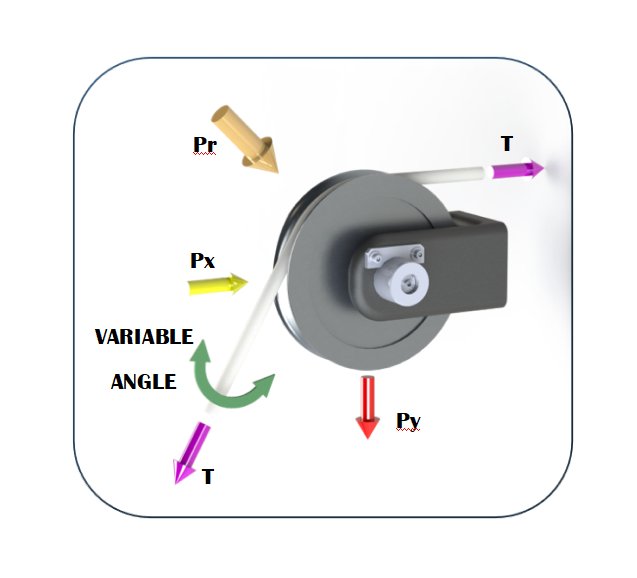

The Variable Wrap Angle Load Pins are specifically designed for sheave applications to accurately measure line tension. Featuring two strain gage bridges perpendicular to each other for precise readings, these load pins offer superior performance. With attributes like full bridge composition, 17-4 Stainless Steel material, and a safe overload of 150%, they ensure reliability and durability in crane, hoist, and towing line tensioning applications. Compliant with FAR standards and industry certifications, these load pins meet the highest institutional procurement requirements.
Product Specifications
Applications Applications
Crane/Hoist Line Towing Line Tensioning
Specifications Bridge Composition
Full
Specifications Bridge Excitation
10 (typical), 12 maximum Vdc
Specifications Bridge Resistance
350 (nominal) Ohm
Specifications Bridge Sensitivity
0.5 and higher mV/V
Specifications Hysteresis
±1 % (nominal) F.S.
Specifications Material
17-4 Stainless Steel (typical)
Specifications Minimum Pin Diameter
1 (standard), 0.5 (with limitations) inch
Specifications Non Linearity
±1 % (nominal) F.S.
Specifications Non Repeatability
±0.25% (nominal) F.S.
Specifications Safe Overload
150% (typical) F.S.
Specifications Temperature Fs
±0.01% (nominal) load/°F
Specifications Temperature Zero
±0.01% (nominal) F.S./°F
Specifications Ultimate Strength
300% (typical) F.S.
Specifications Variable Wrap Angle
Variable Wrap Angle
Specifications Zero Balance
±3.0% (nominal) F.S.
