VAZ 2500 RS Single Shaft Shredder
VAZ 2500 RS Single Shaft Shredder
SKU:VAZ-a3d5e4
Efficiently process diverse waste materials with the VAZ 2500 RS Single Shaft Shredder by Vecoplan®. Equipped with cutting-edge technology for precise cutting and high performance.
Regular price
$84,500.00
Regular price
Sale price
$84,500.00
Unit price
per
Initiate Order
VAZ 2500 RS Single Shaft Shredder
$84,500.00
Quantity: 1
Claim Your Seller Account
VAZ 2500 RS Single Shaft Shredder
$84,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

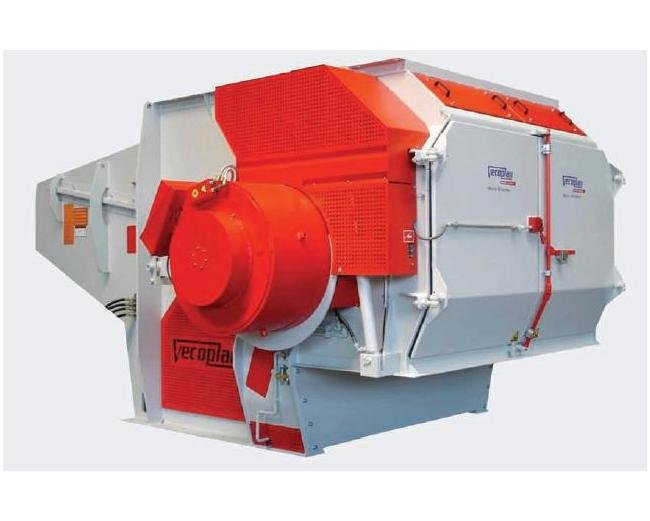

The VAZ 2500 RS Single Shaft Shredder by Vecoplan® is a powerhouse designed for processing diverse waste materials efficiently. From paper and plastic waste to wood processing scrap and medical waste, this shredder boasts a robust rotor system with patented technology for precise cutting. Equipped with a high-output cutting rotor, hydraulic feeding ram, and a PLC control panel, this shredder ensures optimal performance and ease of operation. With compliance to ISO 9001 standards and a guarantee of equity 'Buyback', the VAZ 2500 RS stands out as a reliable solution for industrial shredding needs.
Product Specifications
Hitorc Drive Version 0
Shredder for single-stage shredding with a variable rotor speed of approx. 0 to 360 (410) rpm with the energy saving HiTorc® drive. The automatic speed controller allows the rotor to turn quickly when the materials are easy to shred, and more slowly with more torque when processing tougher materials. Thus, HiTorc™ equipped single-stage shredders enable up to 70 % higher capacity in most applications with energy savings up to 60 %.
Specifications Application
Two re-shredders producing RDF (refuse derived fuel) from manufacturing and commercial waste.
Specifications Approximate Shredding To Particle Size
10 to 250 mm | 3/8 to 10 in
Specifications Capacity
0 to 25 ton
Specifications Cutter Size
140 mm | 40 mm | 60 mm | 80 mm
Specifications Direct Drive Version
Extremely powerful shredder for re-shredding with a constant rotor speed of approximately 410 rpm. Main drive via e-motor, hydraulic coupling and belt drive with electronically monitored sliding hub.
Specifications Energy Savings
0 to 60 %
Specifications Features
4-Way, Indexable Cutting Inserts | 640 mm (25 in) rotor diameter | Capacity up to 25 t | Easy Accessibility | Equity “Buyback” Guarantee | Heavy Spherical Roller Bearings | Heavy-Duty Construction | High Output “Torsion Point” Cutting Rotor | Hydraulic feeding ram | ISO 9001 Manufactured | Large Infeed Hopper | Multiple tramp metal protection | Oversized Drivetrain | PLC Control Panel | Shredding to particle size of approximately 10 to 250 mm (3/8 to 10 in), according to preference | Stress-Free Frame, Robotically Welded | Tramp Metal Protection
Specifications Infeed Opening Length A
98 in
Specifications Infeed Opening Width B
63 in
Specifications Machine Stand Length L
77 in
Specifications Machine Stand Width M
112 in
Specifications Manufacturing Notes

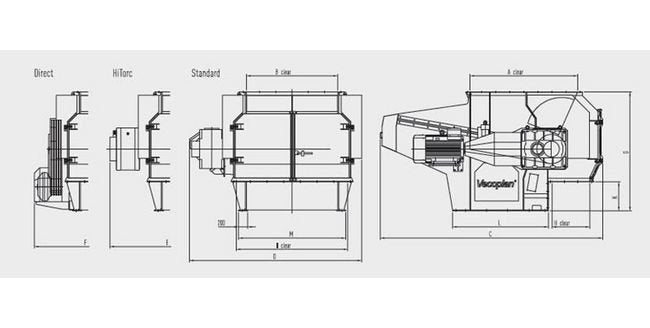

Detailed dimension drawings and load data available on request.
Specifications Material Outlet Height K
23 in
Specifications Material Outlet Length H
31 in
Specifications Material Outlet Width I
115 in
Specifications Maximum Weight
38,580 lb
Specifications Overall Height G
92 in
Specifications Overall Length C
150 in
Specifications Overall Width With Belt Drive F
158 in
Specifications Overall Width With Hitorc E
164 in
Specifications Patented Rotor System
Profiled rotor with toothed counter knives - a Vecoplan® patent. A choice of 40, 60, 80 or 140 mm cutting crowns or flat cutters. Depending on the size, available with variable number of cutters, from single-row up to four rows.
Specifications Rotor Diameter
25 in | 640 mm
Specifications Standards
International Organization for Standardization (ISO 9001)
Specifications Standard Drive Version
Tried and tested shredder for single-stage shredding with a constant rotor speed of 150 rpm. Main drive via e-motor, cardan shaft, hydraulic coupling and gears.
