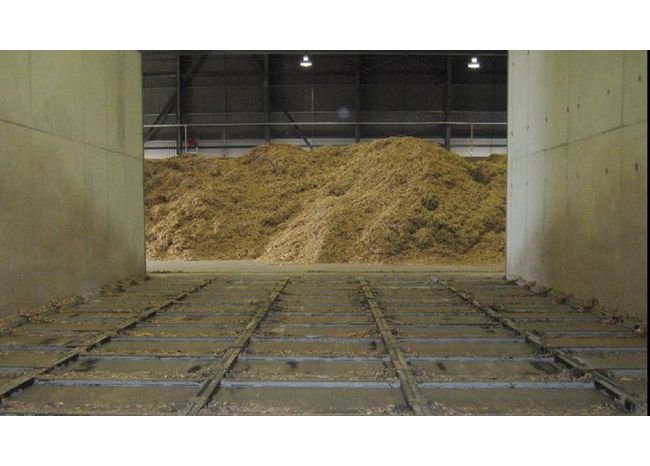

The Vecoplan® 17m Push/Pull Rod Discharger is designed for efficient conveyance of free-flowing materials such as sawdust and wood chips. With a hydraulically operated system, it delivers a maximum working length of 17m and a conveying capacity of 250 m³/h. Featuring a robust build with operating pressures up to 210 bar and various cylinder types, it ensures reliable and precise material dosing. The innovative design allows for automated backward and forward movements, optimizing material extraction. Ideal for industrial settings requiring high-performance material handling solutions.
Product Specifications
Additional Information
The hydraulic cylinders of a pull rod discharger are mounted at the discharge point, whereas the hydraulic cylinders of a push rod discharger are mounted in the silo at the rear (opposite the discharge point).
Manufacturing Notes 0
Conveying Capacity: Depending on silo width and hydraulic motor power
Specifications Conveying Capacity
250 m³/h
Specifications Cylinder Type
140/70/700 | 200/90/900
Specifications Cylinder Type 14070700
Yes
Specifications Cylinder Type 20090900
Yes
Specifications Ladder Frame Version
Yes

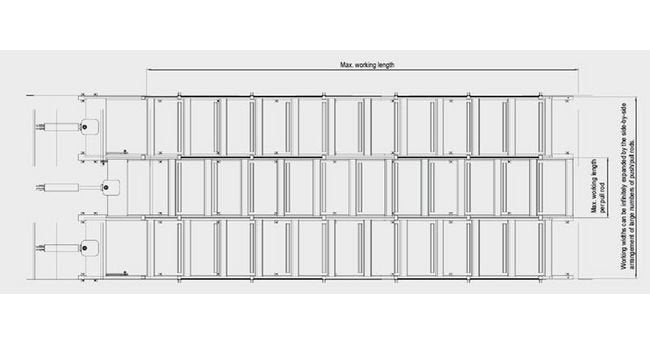

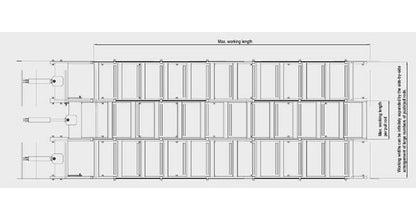

Specifications Maximum Working Length
17 m
Specifications Maximum Working Width Per Pull Rod
2 m
Specifications Motor Power
4 to 75 kW
Specifications Operating Pressure
210 bar
Specifications Trafficable
Yes
