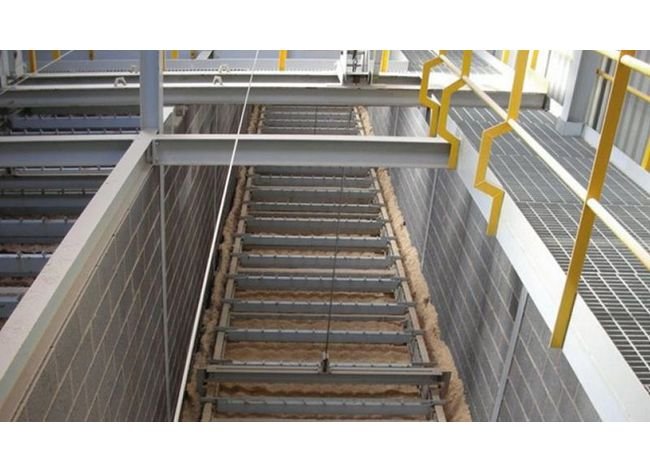

The Vecoplan® 200 m³/h Loading/Unloading Conveyor is an innovative solution for efficiently handling wood chips in silos. Unlike conventional systems, this conveyor can both fill and empty silos, thanks to its versatile distribution/discharge conveyor. Controlled by a PLC system, it automates the process with precision. With a maximum discharge capacity of 200 m³/h and sturdy construction meeting industrial standards, this conveyor is a dependable choice for smooth loading and unloading operations.
Product Specifications
Additional Information 0

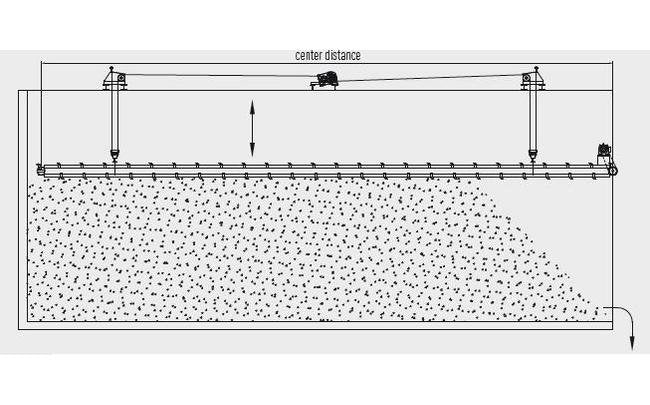

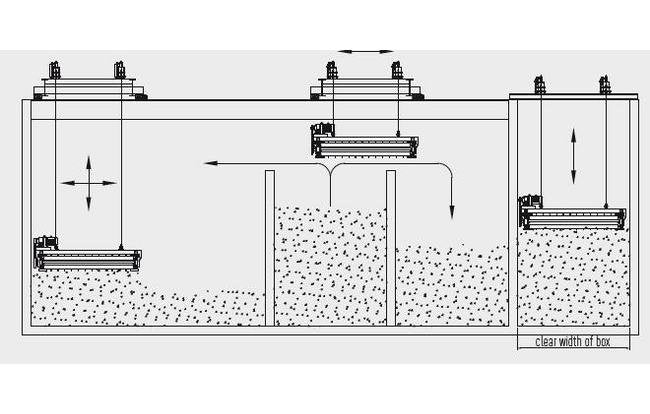

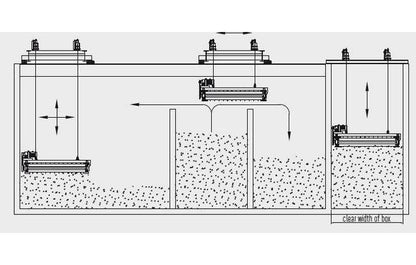

The standard version of a loading-/unloading conveyor works in a storage box. If several boxes are arranged side by side, it is also possible to move the loading/unloading conveyor on a chassis to the other boxes and to fill and empty them as well.
Specifications Breaking Load Conveyor Chain
11.2 ton
Specifications Clear Width Of Box
2300 mm | 2600 mm
Specifications Conveying Width
1800 mm | 2100 mm
Specifications Maximum Center Distance
30000 mm
Specifications Maximum Discharge Capacity
200 m³/h
