Vecoplan® 20m Push and Pull Rod Discharger
Vecoplan® 20m Push and Pull Rod Discharger
SKU:PUS-97a5c6
Efficiently handle free-flowing materials with Vecoplan® 20m Push and Pull Rod Discharger for precise dosing and effective transport in industrial environments.
Regular price
$28,999.00
Regular price
Sale price
$28,999.00
Unit price
per
Initiate Order
Vecoplan® 20m Push and Pull Rod Discharger
$28,999.00
Quantity: 1
Claim Your Seller Account
Vecoplan® 20m Push and Pull Rod Discharger
$28,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

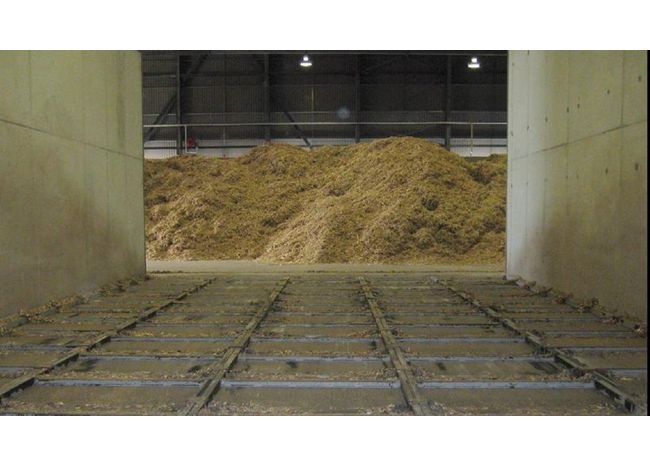

The Vecoplan® 20m Push and Pull Rod Discharger is designed for efficient handling of free-flowing materials like sawdust and wood chips. Featuring hydraulically operated push/pull rods with a maximum working length of 20m and a conveying capacity of 250 m³/h, this system ensures precise dosing and effective material transport. With a motor power range of 4 to 75 kW and versatile cylinder types, it offers reliable operation and flexibility. Ideal for industrial settings requiring smooth material extraction and controlled delivery.
Product Specifications
Additional Information

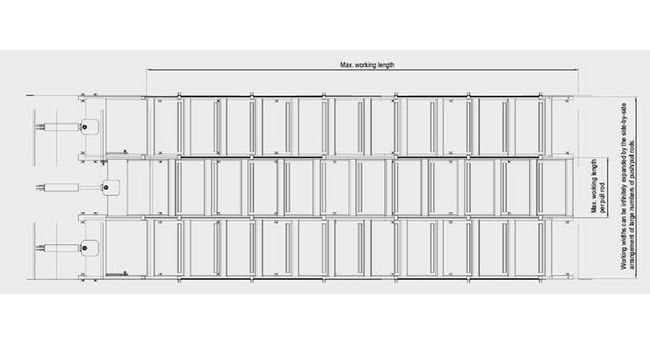

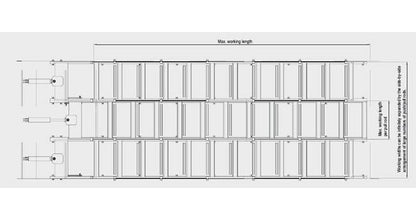

The hydraulic cylinders of a pull rod discharger are mounted at the discharge point, whereas the hydraulic cylinders of a push rod discharger are mounted in the silo at the rear (opposite the discharge point).
Manufacturing Notes 0
Conveying Capacity: Depending on silo width and hydraulic motor power
Specifications Conveying Capacity
250 m³/h
Specifications Cylinder Type
140/70/700 | 200/90/900
Specifications Cylinder Type 14070700
Yes
Specifications Cylinder Type 20090900
Yes
Specifications Maximum Working Length
20 m
Specifications Maximum Working Width Per Pull Rod
2 m
Specifications Motor Power
4 to 75 kW
Specifications Operating Pressure
210 bar
Specifications Single Bar Version
Yes
Specifications Trafficable
Yes
