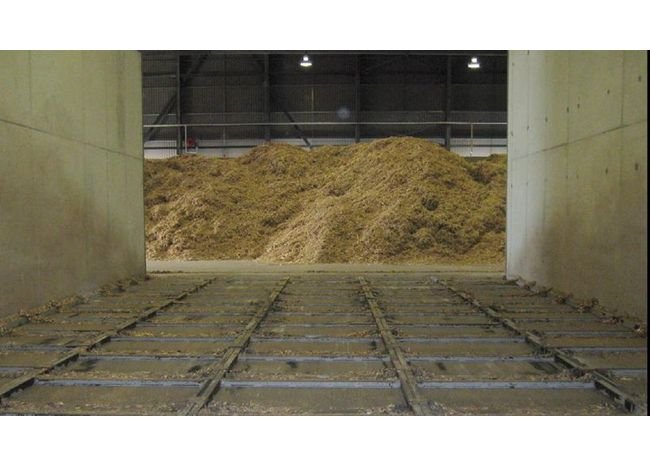

The Vecoplan® 22m Push/Pull Rod Discharger is designed for the efficient conveyance of free-flowing materials like sawdust, shavings, and wood chips. Featuring hydraulically operated push/pull rods with a maximum working length of 22m, this discharger ensures precise dosing and conveying capacities up to 250 m³/h. With motor power ranging from 4 to 75 kW and operating pressure of 210 bar, it offers reliable performance and easy installation. Ideal for industrial applications, the Vecoplan® discharger complies with Federal procurement standards and industry-specific certifications, meeting the demanding needs of institutional buyers.
Product Specifications
Additional Information

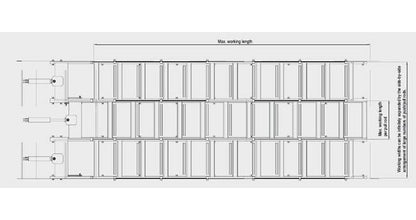

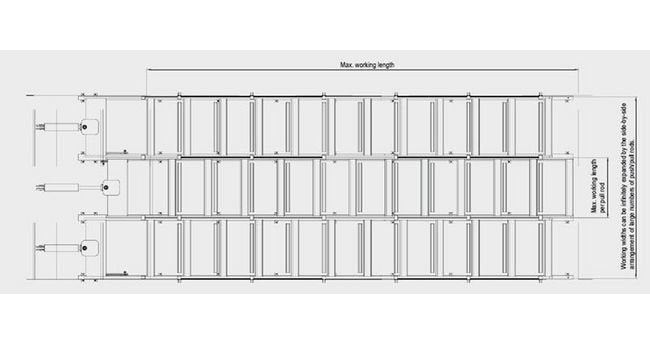

The hydraulic cylinders of a pull rod discharger are mounted at the discharge point, whereas the hydraulic cylinders of a push rod discharger are mounted in the silo at the rear (opposite the discharge point).
Manufacturing Notes 0
Conveying Capacity: Depending on silo width and hydraulic motor power
Specifications Conveying Capacity
250 m³/h
Specifications Cylinder Type
140/70/700 | 200/90/900
Specifications Cylinder Type 14070700
Yes
Specifications Cylinder Type 20090900
Yes
Specifications Ladder Frame Version
Yes
Specifications Maximum Working Length
22 m
Specifications Maximum Working Width Per Pull Rod
2 m
Specifications Motor Power
4 to 75 kW
Specifications Operating Pressure
210 bar
Specifications Trafficable
Yes
Specifications Transmission Of Cylinder Forces Into Silo Base
Yes
