Vecoplan® 300 m³/h Loading/Unloading Conveyor
Vecoplan® 300 m³/h Loading/Unloading Conveyor
SKU:LOA-ef751b
Efficiently handle wood chips in silos with the Vecoplan® 300 m³/h Loading/Unloading Conveyor. Dual functionality for seamless filling and emptying.
Regular price
$24,999.00
Regular price
Sale price
$24,999.00
Unit price
per
Initiate Order
Vecoplan® 300 m³/h Loading/Unloading Conveyor
$24,999.00
Quantity: 1
Claim Your Seller Account
Vecoplan® 300 m³/h Loading/Unloading Conveyor
$24,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

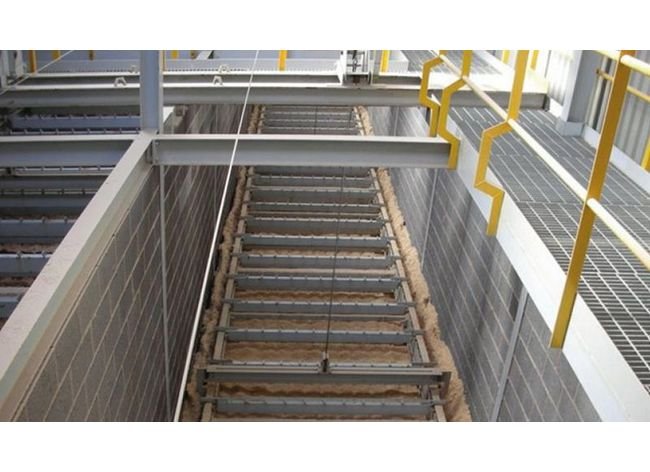

The Vecoplan® 300 m³/h Loading/Unloading Conveyor is a versatile solution designed for efficiently handling wood chips in silos and storage bunkers. This conveyor stands out for its dual functionality, capable of both filling and emptying silos seamlessly. Featuring a distribution/discharge conveyor that moves on steel wire ropes, controlled by a lifting device, this system ensures continuous filling and emptying. Automated through PLC controls, it supports simultaneous filling and emptying of multiple boxes, offering unmatched efficiency and convenience.
Product Specifications
Additional Information 0

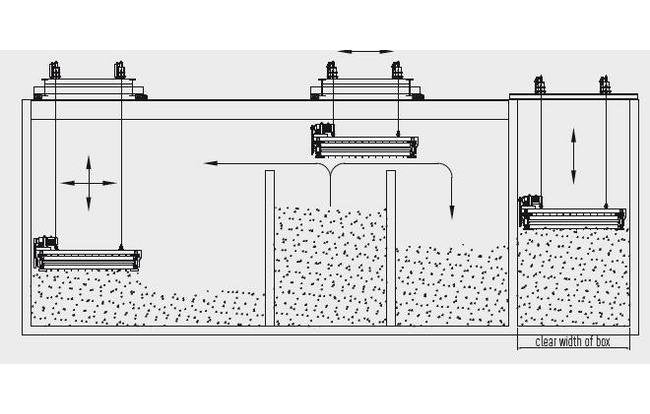

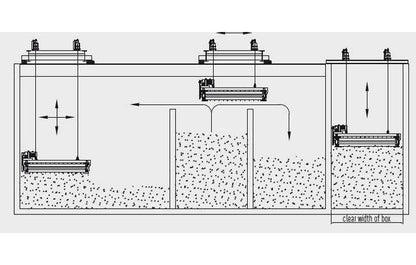

The standard version of a loading-/unloading conveyor works in a storage box. If several boxes are arranged side by side, it is also possible to move the loading/unloading conveyor on a chassis to the other boxes and to fill and empty them as well.
Specifications Breaking Load Conveyor Chain
11.2 ton
Specifications Clear Width Of Box
3600 mm | 3800 mm | 4100 mm
Specifications Conveying Width
3100 mm | 3300 mm | 3600 mm

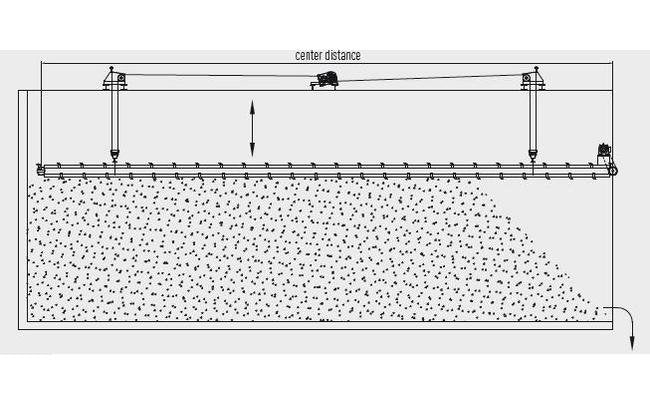

Specifications Maximum Center Distance
30000 mm
Specifications Maximum Discharge Capacity
300 m³/h
