Vecoplan® Cross Belt Magnetic Separators
Vecoplan® Cross Belt Magnetic Separators
SKU:CRO-abea47
Efficiently remove ferrous contaminants with Vecoplan® Cross Belt Magnetic Separators designed for continuous self-cleaning operations.
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
Vecoplan® Cross Belt Magnetic Separators
$3,499.99
Quantity: 1
Claim Your Seller Account
Vecoplan® Cross Belt Magnetic Separators
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Vecoplan® Cross Belt Magnetic Separators are essential equipment for removing ferrous contaminants like nuts, bolts, and wire from conveyed materials. With a self-cleaning operation and a durable cleated belt, these separators offer continuous protection. Featuring Vecoplan’s BridgeBreaker technology, these separators prevent material bridging, ensuring uninterrupted processing operations. The unit is mountable on conveyors and equipped with a 1 hp motor, 230/460 V, 3-phase, and a belt speed of 275 fpm.
Product Specifications
Additional Information 0

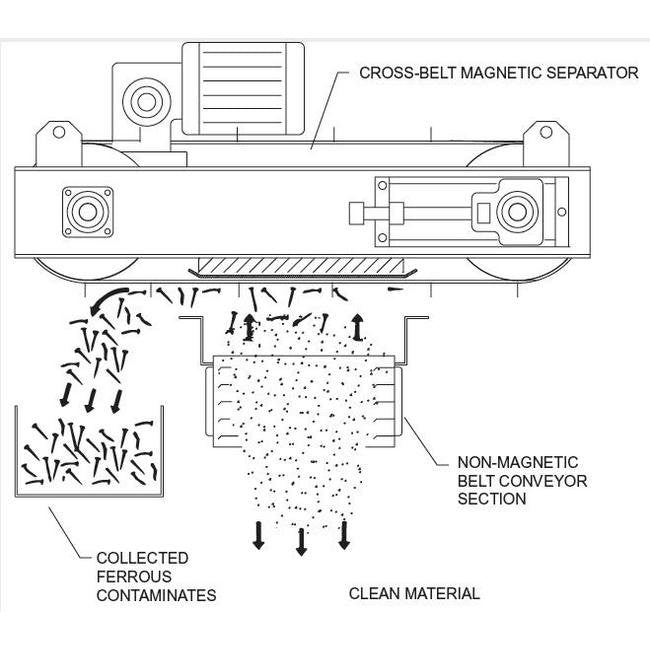

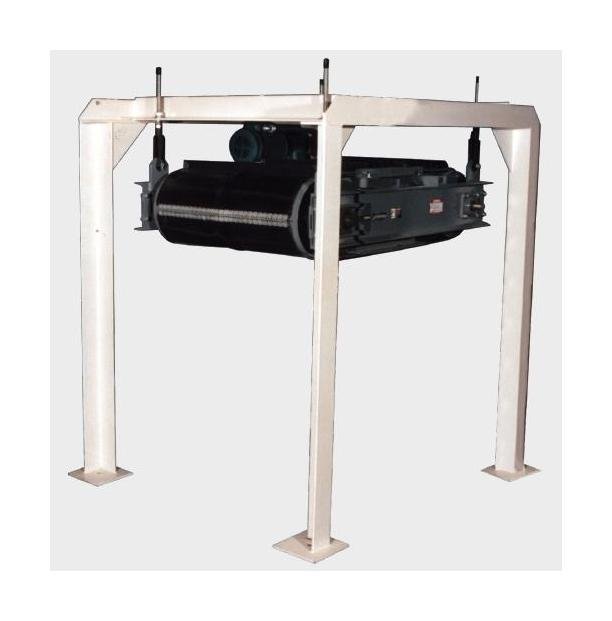

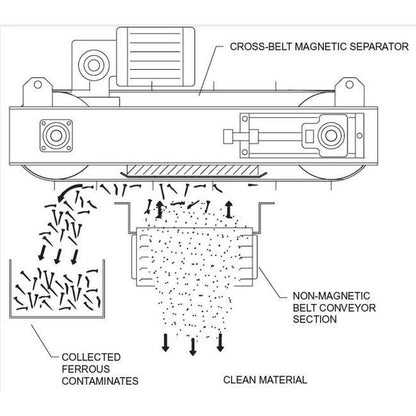

Cross belt magnetic separators are used to remove ferrous contaminants (tramp iron such as nuts, bolts, wire, banding, etc.) from the conveyed material. The cross-belt design provides a large coverage area. You get continuous self-cleaning protection. The unit can be mounted over the conveyor section using the four eyebolts secured at the top of the frame. The cross-belt magnetic separator has a durable cleated belt which conveys the ferrous contaminants to the side of the conveyor and are discharged to a collection bin.Frame is structural mild steel,magnet has stainless steel face and mild steel sides and back. Magnetic material creamic V design for optimum reach-out. Top or side mounted 1 hp. 230/460 V. 3 ph. 60 Hz. gear motor with a belt speed of 275 fpm. Available in right or left hand drive.
Specifications Belt Speed
275 fpm
Specifications Features
Vecoplan’s BridgeBreaker prevents “bridging” - material that gets wedged into position between the sidewalls and hangs there, unable to be processed. The BridgeBreaker clears these wedges so the shredder can continue normal processing operations.
Specifications Frame Material
Structural Mild Steel
Specifications Frequency
60 Hz
Specifications Magnet Height
10 5/8 in
Specifications Magnet Length
18 in
Specifications Magnet Width
28 in
Specifications Motor Power
1 hp
Specifications Mount Type
Side | Top
Specifications Number Of Phase
3
Specifications Voltage
230 V | 460 V
