Vecoplan® Cross Stream Separator for Waste Separation
Vecoplan® Cross Stream Separator for Waste Separation
SKU:CRO-74182a
Efficiently separate low-density waste fractions with Vecoplan® Cross Stream Separator. Ideal for waste-to-fuel applications.
Regular price
$18,999.00
Regular price
Sale price
$18,999.00
Unit price
per
Initiate Order
Vecoplan® Cross Stream Separator for Waste Separation
$18,999.00
Quantity: 1
Claim Your Seller Account
Vecoplan® Cross Stream Separator for Waste Separation
$18,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

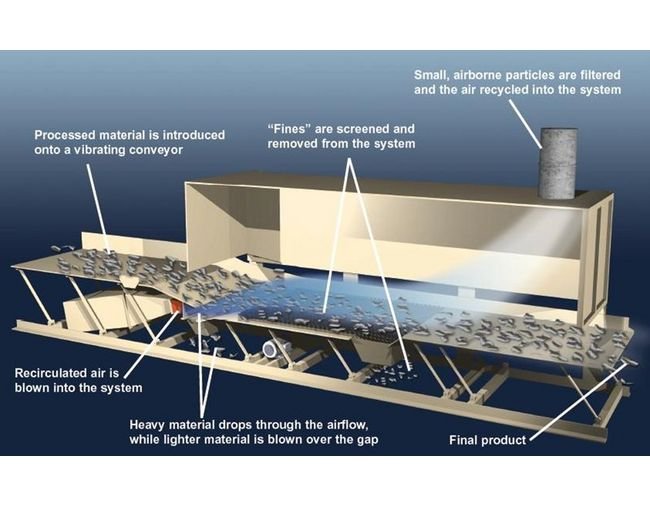

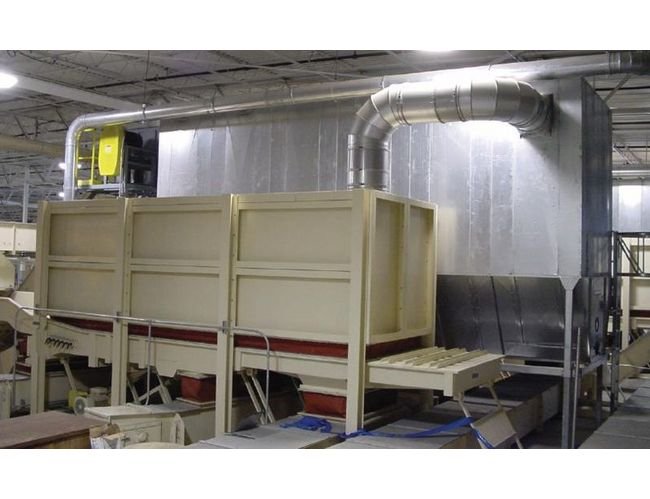

The Vecoplan® Cross Stream Separator is designed for efficiently separating low-density fractions from various waste types, including pre-shred production waste, mixed construction waste, plastic waste, and municipal/industrial waste. This separator produces a high-calorific fuel suitable for re-shredding and pelletizing. With dimensions of 7,300 x 2,500 x 2,800 inches, dual 30 kW fan motors, and a 2.2 kW conveyor motor, this unit ensures optimal performance in waste processing. Ideal for stationary installations, it recommends a filter unit for enhanced air quality.
Product Specifications
Specifications Air Flow Rate
20,000 m³/h
Specifications Approximate Amount Of Air Exhaust
4000 m³/h
Specifications Conveyor Motor Power
2.2 kW
Specifications Current
125 A
Specifications Fan Motor Power
30 kW
Specifications Features
Main Dimensions: (l x w x h): 7,300 x 2,500 x 2,800 Fan Motors: 2 x 30 kW Air Flow: 2 x 20,000 m³/h Conveyor Motor: 2.2 kWAir Amount to be Cleared: 4,000 m³/hVoltage: 400/3/50 Hz, 125 AExhaust: approximately 4,000 m³/hFor stationary installations we recommend mounting a filter unit above the cross-stream-separator
Specifications Frequency
50 Hz
Specifications Height
2,800 in
Specifications Length
7,300 in
Specifications Number Of Fan Motors
2
Specifications Number Of Phase
3
Specifications Voltage
400 V
Specifications Width
2,500 in
