Vecoplan® VAZ 1100 K Series Single Shaft Shredder
Vecoplan® VAZ 1100 K Series Single Shaft Shredder
SKU:VAZ-49cbe8
Efficiently reduce tough industrial materials with the Vecoplan® VAZ 1100 K Single Shaft Shredder. ISO 9001 certified with premium features for enhanced performance.
Regular price
$27,999.00
Regular price
Sale price
$27,999.00
Unit price
per
Initiate Order
Vecoplan® VAZ 1100 K Series Single Shaft Shredder
$27,999.00
Quantity: 1
Claim Your Seller Account
Vecoplan® VAZ 1100 K Series Single Shaft Shredder
$27,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

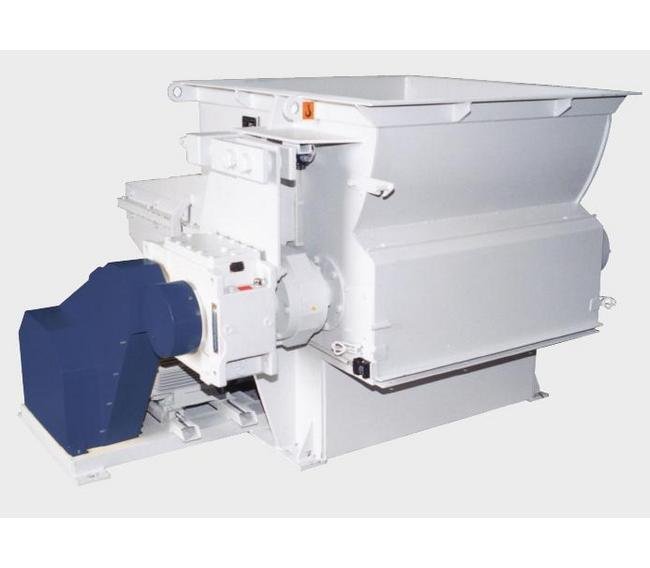

The Vecoplan® VAZ 1100 K Series Single Shaft Shredder is a robust solution tailored for efficient size reduction of challenging industrial materials including plastics, wood scrap, medical waste, municipal waste, and more. With a powerful 30 hp drive motor, 27 cutters, and a durable construction, this shredder ensures reliable performance. Featuring ISO 9001 certification and a host of premium features like Easy Access Screen, PLC Control Panel, and Touch Pad Monitoring, it offers enhanced operational efficiency, low noise output, and a Lifetime Limited Warranty on the cutting rotor.
Product Specifications
Specifications Cutter Size
40 x 40 mm
Specifications Drive Motor Power
30 hp
Specifications Features
0.015 in Knife Gap | 4-Way, Indexable Cutting Inserts | Easy Access Screen | Easy Accessibility | Equity “Buyback” Guarantee | Fluid “TurboCoupling” | Heavy Outboard Spherical Roller Bearings | High Output “Torsion Point” Cutting Rotor | Hinged Protective Cylinder Covers | ISO 9001 Manufactured | Large Infeed Hopper | Lifetime Limited Warranty on Cutting Rotor | Low RPM / Low Noise | Low Speed / High Torque Design | Oversized Drivetrain | PLC Control Panel | Precision Hydraulic "Process Ram" | Rugged Hydraulics | Severe Duty Construction | Stress-Free Frame, Robotically Welded | Touch Pad Monitoring and Control | Tramp Metal Protection
Specifications Feed System Hpspeed
3 to 5/2
Specifications Frequency
60 Hz
Specifications Hopper Opening Length
48 in
Specifications Hopper Opening Width
42 in
Specifications Hopper Volume
2.9 yd³
Specifications Knife Gap
0.015 in
Specifications Machine Weight
5,700 lb
Specifications Number Of Cutters
27
Specifications Number Of Phase
3
Specifications Options
Application Specific Programming and Control Integration | Complete Turn-Key Recycling and Reclamation Systems and Material Handling Products Installation | Critical-Duty Drivetrain | High Speed Ram | Optional Control Brands | Quick Disconnect and Quick Clean Screens | Special Purpose Screens | Wear Resistant Cutting Chamber
Specifications Rotor Diameter
10 in
Specifications Rotor Speed
120 rpm
Specifications Standards
International Organization for Standardization (ISO 9001)
Specifications Voltage
460 V
