Vecoplan® VAZ 1600 M FF Single Shaft Shredder
Vecoplan® VAZ 1600 M FF Single Shaft Shredder
SKU:VAZ-1540ed
Efficiently reduce plastic films and fibers with precision using Vecoplan® VAZ 1600 M FF Shredder. High throughput, precise cutting, compliant with ISO 9001.
Regular price
$58,999.00
Regular price
Sale price
$58,999.00
Unit price
per
Initiate Order
Vecoplan® VAZ 1600 M FF Single Shaft Shredder
$58,999.00
Quantity: 1
Claim Your Seller Account
Vecoplan® VAZ 1600 M FF Single Shaft Shredder
$58,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

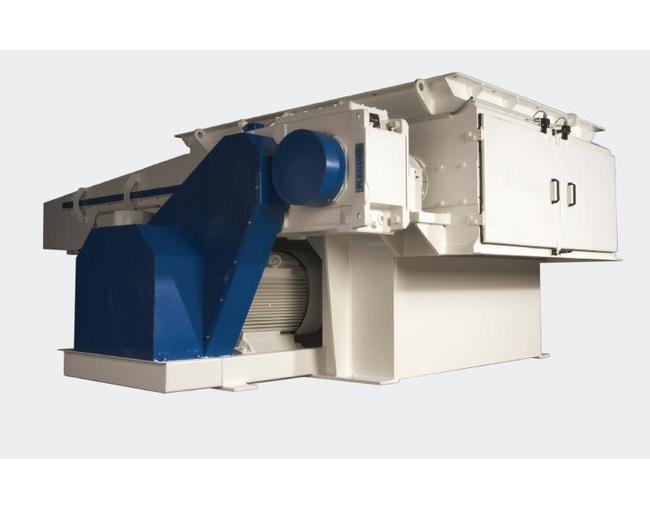

The Vecoplan® VAZ 1600 M FF Single Shaft Shredder from the VAZ Series is engineered for efficient reduction of plastic films and synthetic fibers, featuring the SureCut™ Cutting System for precise cut lengths and high bulk densities. With a robust build, high throughput capacity, built-in metering, and thermal monitoring controls, this shredder ensures optimal performance and reliability. Compliant with ISO 9001 manufacturing standards, it offers a range of options like hydraulic feed ram, versatile rotor configurations, and special purpose screens for tailored recycling solutions.
Product Specifications
Specifications Cutter Size
40 x 40 mm
Specifications Drive Motor Power
150 hp
Specifications Features
0.015 in Knife Gap for Thin Materials | Built-In Thermal Monitoring Controls for Rotor | Critical Duty Drivetrain | Diverter Plate Over Cutting Rotor | Easy Access Screen | Fluid “TurboCoupling” | Heavy Oversized Outboard Spherical Roller Bearings | Heavy Viscosity Fluids | Hinged Protective Cylinder Covers | ISO 9001 Manufactured | Large Infeed Hopper | Low Speed / High Torque Design | Passive Programming for Self-Feed Materials | PLC Controls / Touch Pad Monitoring | Precision Hydraulic "Process Ram" | Reinforced Screens | Rugged Hydraulics | Special Composite 4-Way Indexable Cutting Inserts | SureCut™ Cutting System | Tramp Metal Protection | Wear Resistant Siderails and Cutting Chamber
Specifications Feed System Hpspeed
10/2
Specifications Frequency
60 Hz
Specifications Hopper Opening Length
80 in
Specifications Hopper Opening Width
63 in
Specifications Hopper Volume
6.3 yd³
Specifications Machine Weight
15,950 lb
Specifications Nipper Cutter
35
Specifications Number Of Cutters
72
Specifications Number Of Phase
3
Specifications Options
Airspring Counterknife for High Tramp Metal Content | Application Specific Programming and Control Integration | Complete Turn-Key Recycling and Reclamation Systems and Material Handling Products Installation | Hydraulic “BridgeBreaker” Vertical Feed Ram | Multiple Cutter Insert Sizes | Multiple Rotor Configurations | Optional Control Brands | Quick Disconnect and Quick Clean Screens | Special Purpose Screens | Variable Frequency Drives
Specifications Rotor Diameter
15 in
Specifications Rotor Speed
120 rpm
Specifications Standards
International Organization for Standardization (ISO 9001)
Specifications Voltage
460 V
