Vecoplan® VAZ 1800 FF Series Single Shaft Shredder
Vecoplan® VAZ 1800 FF Series Single Shaft Shredder
SKU:VAZ-45d79f
Vecoplan® VAZ 1800 FF Single Shaft Shredder: Efficiently reduces plastic films and synthetic fibers with precision cuts and high bulk densities.
Regular price
$69,999.00
Regular price
Sale price
$69,999.00
Unit price
per
Initiate Order
Vecoplan® VAZ 1800 FF Series Single Shaft Shredder
$69,999.00
Quantity: 1
Claim Your Seller Account
Vecoplan® VAZ 1800 FF Series Single Shaft Shredder
$69,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

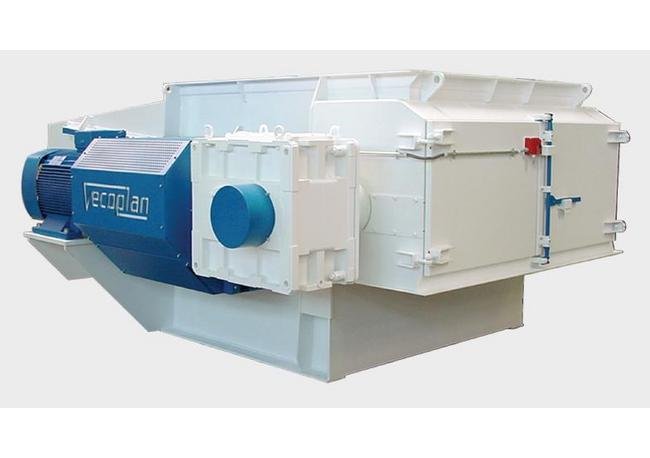

The Vecoplan® VAZ 1800 FF Series Single Shaft Shredder, featuring the SureCut™ Cutting System, is expertly engineered for efficient plastic film and synthetic fiber reduction essential for extrusion applications. With a robust construction designed for high-throughput operations, this shredder incorporates advanced metering functionalities and precision thermal monitoring controls. The SureCut™ technology ensures impeccable cut lengths and superior bulk densities, making it an ideal solution for demanding industrial recycling processes.
Product Specifications
Specifications Drive Motor Power
200 hp
Specifications Features
0.015 in Knife Gap for Thin Materials | Built-In Thermal Monitoring Controls for Rotor | Critical Duty Drivetrain | Diverter Plate Over Cutting Rotor | Easy Access Screen | Fluid “TurboCoupling” | Heavy Oversized Outboard Spherical Roller Bearings | Heavy Viscosity Fluids | Hinged Protective Cylinder Covers | ISO 9001 Manufactured | Large Infeed Hopper | Lifetime Limited Warranty on Cutting Rotor | Low Speed / High Torque Design | Passive Programming for Self-Feed Materials | PLC Controls / Touch Pad Monitoring | Precision Hydraulic "Process Ram" | Reinforced Screens | Rugged Hydraulics | Special Composite 4-Way Indexable Cutting Inserts | SureCut™ Cutting System | Tramp Metal Protection | Wear Resistant Siderails and Cutting Chamber
Specifications Feed System Hpspeed
10/2
Specifications Frequency
60 Hz
Specifications Hopper Opening Length
86 in
Specifications Hopper Opening Width
70 in
Specifications Hopper Volume
11 yd³
Specifications Machine Weight
22,000 to 26,000 lb
Specifications Nipper Cutter
41
Specifications Number Of Cutters
84
Specifications Number Of Phase
3
Specifications Options
Airspring Counterknife for High Tramp Metal Content | Application Specific Programming and Control Integration | Complete Turn-Key Recycling and Reclamation Systems and Material Handling Products Installation | Hydraulic “BridgeBreaker” Vertical Feed Ram | Multiple Cutter Insert Sizes | Multiple Rotor Configurations | Optional Control Brands | Quick Disconnect and Quick Clean Screens | Special Purpose Screens | Variable Frequency Drives
Specifications Rotor Diameter
20 in
Specifications Rotor Speed
145 rpm
Specifications Standards
International Organization for Standardization (ISO 9001)
Specifications Standard Cutter Size
40 x 40
Specifications Voltage
460 V
