Vecoplan® VAZ 2400 S Series Single Shaft Shredder for Industrial Materials
Vecoplan® VAZ 2400 S Series Single Shaft Shredder for Industrial Materials
SKU:VAZ-5fc9ec
Vecoplan® VAZ 2400 S Series Single Shaft Shredder - High-performance industrial shredder for plastics, wood scrap, and more.
Regular price
$56,999.99
Regular price
Sale price
$56,999.99
Unit price
per
Initiate Order
Vecoplan® VAZ 2400 S Series Single Shaft Shredder for Industrial Materials
$56,999.99
Quantity: 1
Claim Your Seller Account
Vecoplan® VAZ 2400 S Series Single Shaft Shredder for Industrial Materials
$56,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

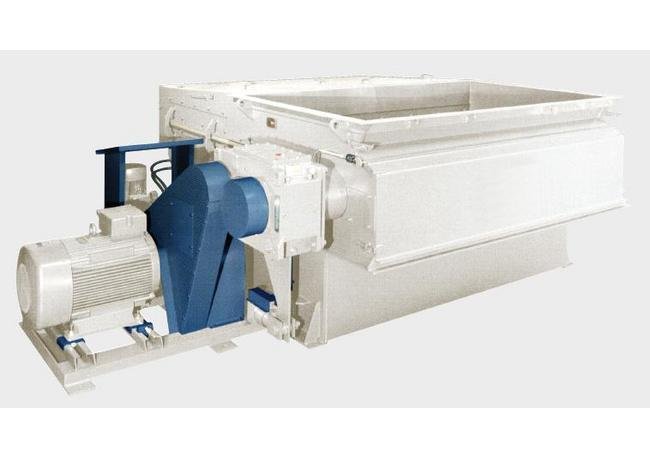

The Vecoplan® VAZ 2400 S Series Single Shaft Shredder is a powerhouse designed for efficient size reduction of challenging industrial materials like plastics, wood scrap, medical waste, and more. With a robust rotor, heavy-duty construction, and precision engineering, this shredder guarantees high output with low noise and low maintenance requirements. Equipped with advanced features like indexable cutting inserts and a Precision Hydraulic "Process Ram", it ensures optimal performance and longevity. Compliant with ISO 9001 standards, this shredder offers reliability, durability, and exceptional shredding capabilities for industrial applications.
Product Specifications
Specifications Cutter Size
40 x 40 mm
Specifications Drive Motor Power
125 to 150 hp
Specifications Features
4-Way, Indexable Cutting Inserts | Easy Accessibility | Equity “Buyback” Guarantee | Fluid “TurboCoupling” | Heavy Spherical Roller Bearings | Heavy-Duty Construction | High Output “Torsion Point” Cutting Rotor | ISO 9001 Manufactured | Large Infeed Hopper | Lifetime Limited Warranty on Cutting Rotor | Low RPM / Low Noise | Low Speed / High Torque Design | Oversized Drivetrain | PLC Control Panel | Precision Hydraulic "Process Ram" | Rugged Hydraulics | Stress-Free Frame, Robotically Welded | Touch Pad Monitoring and Control | Tramp Metal Protection
Specifications Feed System Hpspeed
40/2
Specifications Frequency
60 Hz
Specifications Hopper Opening Length
58 in
Specifications Hopper Opening Width
99 in
Specifications Hopper Volume
7.8 yd³
Specifications Machine Weight
20,100 to 20,800 lb
Specifications Number Of Cutters
71
Specifications Number Of Phase
3
Specifications Options
Abrasion Resistant Screens | Control Integration | Custom Hoppers | Multiple Rotor Configurations | Pneumatic Pick-Up Hoods | Turn-Key Installation with Custom Conveyor Systems Engineering and Material Handling Equipment
Specifications Rotor Diameter
15 in
Specifications Rotor Speed
120 rpm
Specifications Standards
International Organization for Standardization (ISO 9001)
Specifications Voltage
460 V
