Vecoplan® VAZ-800 Stacked System
Vecoplan® VAZ-800 Stacked System
SKU:VEC-a41caa
Vecoplan® VAZ-800 Stacked System: Shredder and granulator combined for efficient plastic scrap reduction. Processing range: 500 to 8,000 lb/hr.
Regular price
$35,000.00
Regular price
Sale price
$35,000.00
Unit price
per
Initiate Order
Vecoplan® VAZ-800 Stacked System
$35,000.00
Quantity: 1
Claim Your Seller Account
Vecoplan® VAZ-800 Stacked System
$35,000.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

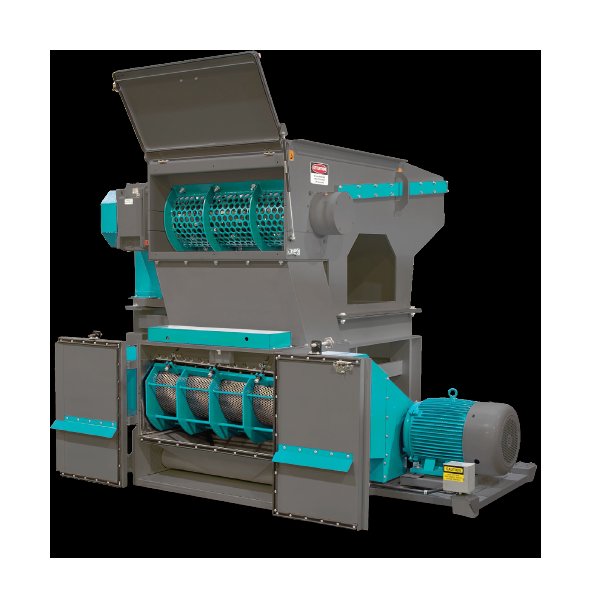

The Vecoplan® VAZ-800 Stacked System is a powerful solution that seamlessly combines a plastics shredder and granulator into one efficient unit. With a processing range of 500 to 8,000 lb/hr, this system ensures balanced processing and optimum performance. The shredder, with its low speed/high torque design and easy accessibility, allows for precise control over particle size output. The granulator complements the shredder by further reducing material to a controlled, final particle size, enabling in-house recycling and re-use. Ideal for institutions seeking cost-efficient plastic scrap reduction in a compact, space-saving design.
Product Specifications
Efficiency In A Single System
The most time and cost efficient way to reduce large plastic scrap down to relatively small (larger than 3/8") size is with a cutting rotor turning at slow speeds but with high torque. A shredder does exactly that. To achieve a final particle size of 3/8" or less, a cutting rotor turning at high speeds but with low torque is more efficient. A granulator does exactly that. By combining both a shredder and a granulator, Vecoplan® Stacked Systems deliver the advantages inherent in both technologies.
Features
Low Speed / High Torque DesignTouch Pad Monitoring and ControlEasy AccessibilityTramp Metal ProtectionEquity "Buyback" GuaranteeRPM / Low NoiseLarge Infeed HopperPrecision Hydraulic "Process Ram"4-Way, Indexable Cutting InsertsHigh Output "Torsion Point" Cutting RotorHeavy-Duty ConstructionRugged HydraulicsStress-Free Frame, Robotically WeldedOversized DrivetrainHeavy Spherical Roller BearingsFluid "Turbo Coupling"PLC Control PanelISO 9001 Manufactured
Options
Magnetic Separation and ProtectionElectro-Magnetic DrivesSystem-Wide Interlock to Downstream Equipment
Specifications Cutting Chamber Sizes
32 to 70 | 40 to 80
Specifications Range
500 to 8,000 lb/hr
The Granulator
The second step in Vecoplan®'s Stacked System design is the granulator. Once material is reduced to a manageable size, it is then fed into the granulating second stage where it is processed to a controlled, final particle size. This allows efficient in-house recycling of scrap for re-use in the production run. Due to it's inherent design. The stacked system is a compact unit with a minimal footprint, making it perfect for operations with limited floor space.
The Shredder
The first step in Vecoplan®'s Stacked System design is the shredder. Fifty years of expertise in size reduction technology is built into every shredder from Vecoplan®. Vecoplan®'s single shaft shredders are the most widely used in the world, and offer controllable and changeable shredded particle output size via interchangeable screens. Vecoplan® screens are inexpensive and can be quickly and easily changed, allowing you to control and change particle size to fit your specific application – now and in the future. All Vecoplan® shredder features are engineered specifically to provide the most effective operation, with more cost efficiency and to make maintenance easier and less expensive. The heavy-duty, quality construction means that Vecoplan® shredders require less maintenance and last longer than other machines.
