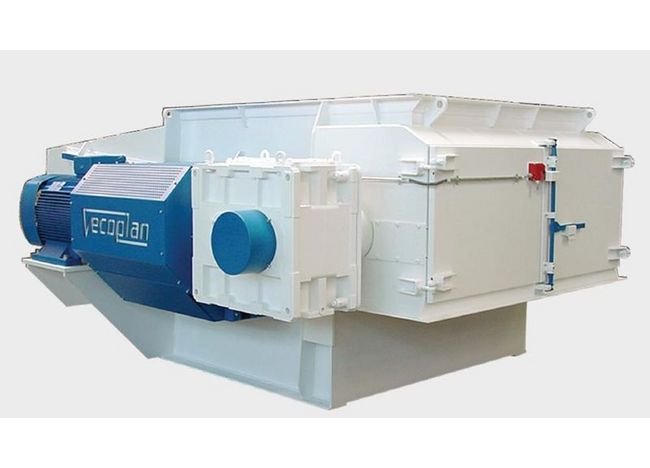

Vecoplan RTR Series Single Shaft Shredder - 10.25 yd³ Hopper Volume
Vecoplan RTR Series Single Shaft Shredder - 10.25 yd³ Hopper Volume
SKU:RTR-689c5a
Efficiently liberate steel wire from rubber in tires for higher recycling value with Vecoplan RTR Series Shredder.
Regular price
$44,999.99
Regular price
Sale price
$44,999.99
Unit price
per
Initiate Order
Vecoplan RTR Series Single Shaft Shredder - 10.25 yd³ Hopper Volume
$44,999.99
Quantity: 1
Claim Your Seller Account
Vecoplan RTR Series Single Shaft Shredder - 10.25 yd³ Hopper Volume
$44,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Vecoplan RTR Series Single Shaft Shredder is expertly engineered to efficiently liberate steel wire from rubber content in pre-shredded tires, enhancing recycling processes. With a robust 10.25 cubic yard hopper volume and advanced features like 'Smart' Ram Programming and Double Row Cutters, this shredder ensures a cleaner end product with heightened recycling value compared to traditional methods. Built to the highest standards, including ISO 9001 compliance, this shredder is a reliable solution for tire recycling facilities seeking superior performance and sustainability.
Product Specifications
Specifications Drive Motor Power
150 hp
Specifications Features
“Smart” Ram Programming | 24 in Machine Base | 24 in Riser Base Included | 4-Way, Indexable Cutting Inserts | Double Row Cutters | Double Sidewall at Rotor | Easy Access Screen | Fully Hard-Faced Rotor | Hardened Extended-Life Counter Knife | Hardox Manganese-Alloy Sidewalls | Hardox Screen | Heavy-Duty Ram and Wiper Package | ISO 9001 Manufactured | Outboard Rotor Bearing Package | PLC Control Panel | Reinforced Floor, Ram, T. Arm, Wipers, Motor Mount | Smart Ram Programming Package | Touch Pad Monitoring and Control | Tramp Metal Protection | Wear Resistant Floor
Specifications Feed System Hpspeed
10/2
Specifications Frequency
60 Hz
Specifications Hopper Opening Length
82 in
Specifications Hopper Opening Width
70 in
Specifications Hopper Volume
10.25 yd³
Specifications Machine Weight
18,000 to 22,000 lb
Specifications Number Of Cutters
84 pieces
Specifications Number Of Phase
3
Specifications Options
Application Specific Programming | Energy Saving HiTorc™ Drive Package | High Speed Ram | Optional Control Brands | Optional Water Cooler Rotor | Quick Disconnect and Quick Clean Screens
Specifications Riser Base Size
24 in
Specifications Rotor Diameter
20 in
Specifications Rotor Speed
125 rpm
Specifications Standards
International Organization for Standardization (ISO 9001)
Specifications Voltage
460 V
