Vecoplan VAZ 1100 K XL Single Shaft Shredder
Vecoplan VAZ 1100 K XL Single Shaft Shredder
SKU:VAZ-857b2c
Vecoplan VAZ 1100 K XL Series is a high-performance industrial shredder with ISO 9001 standards, designed for efficient material reduction.
Regular price
$28,999.99
Regular price
Sale price
$28,999.99
Unit price
per
Initiate Order
Vecoplan VAZ 1100 K XL Single Shaft Shredder
$28,999.99
Quantity: 1
Claim Your Seller Account
Vecoplan VAZ 1100 K XL Single Shaft Shredder
$28,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

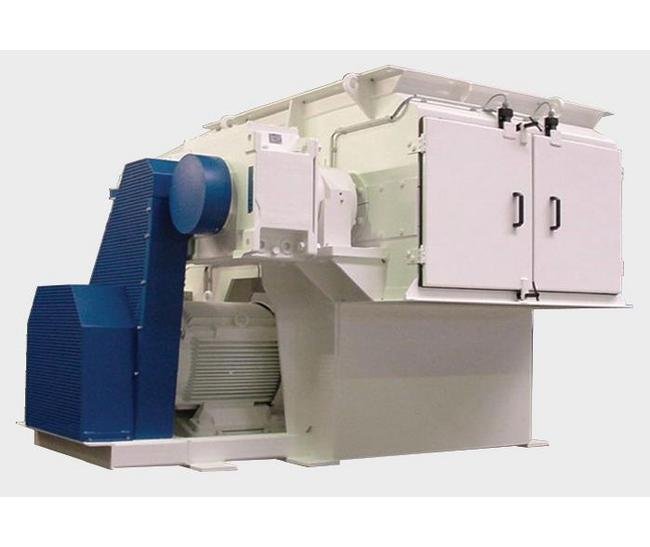

The Vecoplan VAZ 1100 K XL Series Single Shaft Shredder is a powerful industrial shredder designed to efficiently reduce various materials including plastics, wood scrap, medical waste, and more. With a rotor diameter of 15 inches, 60 hp drive motor power, and a durable construction, this shredder guarantees high performance and reliability. Featuring ISO 9001 manufacturing standards, innovative technology like Easy Access Screen and Precision Hydraulic Process Ram, and a range of customizable options, this machine offers a complete shredding solution for industrial applications.
Product Specifications
Specifications Cutter Size
40 x 40 mm
Specifications Drive Motor Power
60 hp
Specifications Features
0.015 in Knife Gap | 4-Way, Indexable Cutting Inserts | Easy Access Screen | Easy Accessibility | Equity “Buyback” Guarantee | Fluid “TurboCoupling” | Heavy Outboard Spherical Roller Bearings | High Output “Torsion Point” Cutting Rotor | Hinged Protective Cylinder Covers | ISO 9001 Manufactured | Large Infeed Hopper | Lifetime Limited Warranty on Cutting Rotor | Low RPM / Low Noise | Low Speed / High Torque Design | Oversized Drivetrain | PLC Control Panel | Precision Hydraulic "Process Ram" | Rugged Hydraulics | Severe Duty Construction | Stress-Free Frame, Robotically Welded | Touch Pad Monitoring and Control | Tramp Metal Protection
Specifications Feed System Hpspeed
3 to 5/2
Specifications Frequency
60 Hz
Specifications Hopper Opening Length
50 in
Specifications Hopper Opening Width
42 in
Specifications Hopper Volume
2.9 yd³
Specifications Knife Gap
0.015 in
Specifications Machine Weight
7,700 to 8,900 lb
Specifications Number Of Cutters
48
Specifications Number Of Phase
3
Specifications Options
Application Specific Programming and Control Integration | Complete Turn-Key Recycling and Reclamation Systems and Material Handling Products Installation | Critical-Duty Drivetrain | High Speed Ram | Optional Control Brands | Quick Disconnect and Quick Clean Screens | Special Purpose Screens | Wear Resistant Cutting Chamber
Specifications Rotor Diameter
15 in
Specifications Rotor Speed
120 rpm
Specifications Standards
International Organization for Standardization (ISO 9001)
Specifications Voltage
460 V
