Vecoplan VAZ 1100 Series Single Shaft Shredder
Vecoplan VAZ 1100 Series Single Shaft Shredder
SKU:VAZ-d16fcd
Vecoplan VAZ 1100 Series Single Shaft Shredder - High-performance industrial shredder with ISO 9001 quality, Low RPM/low noise design, and lifetime limited rotor warranty.
Regular price
$29,999.00
Regular price
Sale price
$29,999.00
Unit price
per
Initiate Order
Vecoplan VAZ 1100 Series Single Shaft Shredder
$29,999.00
Quantity: 1
Claim Your Seller Account
Vecoplan VAZ 1100 Series Single Shaft Shredder
$29,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

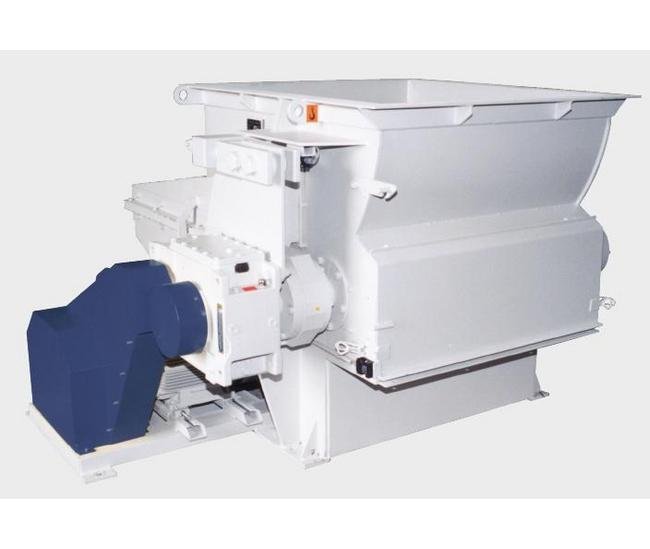

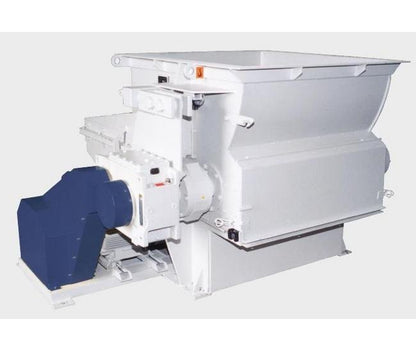

The Vecoplan® VAZ 1100 Series Single Shaft Shredder is a robust industrial solution designed for efficient size reduction of challenging materials like plastics, wood scrap, medical waste, and more. With a powerful 30 hp motor, heavy-duty construction, and advanced features such as Low RPM/low noise operation, PLC control panel, and oversized drivetrain, this shredder ensures high performance and durability. Backed by ISO 9001 manufacture, Equity 'Buyback' Guarantee, and a lifetime limited warranty on the cutting rotor, the VAZ 1100 Series meets the highest quality and performance standards in industrial shredding.
Product Specifications
Specifications Cutter Size
40 x 40 mm
Specifications Drive Motor Power
30 hp
Specifications Features
0.015 in Knife Gap | 4-Way, Indexable Cutting Inserts | Easy Access Screen | Easy Accessibility | Equity “Buyback” Guarantee | Fluid “TurboCoupling” | Heavy Outboard Spherical Roller Bearings | High Output “Torsion Point” Cutting Rotor | Hinged Protective Cylinder Covers | ISO 9001 Manufactured | Large Infeed Hopper | Lifetime Limited Warranty on Cutting Rotor | Low RPM / Low Noise | Low Speed / High Torque Design | Oversized Drivetrain | PLC Control Panel | Precision Hydraulic "Process Ram" | Rugged Hydraulics | Severe Duty Construction | Stress-Free Frame, Robotically Welded | Touch Pad Monitoring and Control | Tramp Metal Protection
Specifications Feed System Hpspeed
3 to 5/2
Specifications Frequency
60 Hz
Specifications Hopper Opening Length
48 in
Specifications Hopper Opening Width
42 in
Specifications Hopper Volume
2.9 yd³
Specifications Knife Gap
0.015 in
Specifications Machine Weight
5,700 lb
Specifications Number Of Cutters
27
Specifications Number Of Phase
3
Specifications Options
Abrasion Resistant Screens | Control Integration | Custom Hoppers | Multiple Rotor Configurations | Pneumatic Pick-Up Hoods | Turn-Key Installation with Custom Conveyor Systems Engineering and Material Handling Equipment
Specifications Rotor Diameter
10 in
Specifications Rotor Speed
120 rpm
Specifications Standards
International Organization for Standardization (ISO 9001)
Specifications Voltage
460 V
