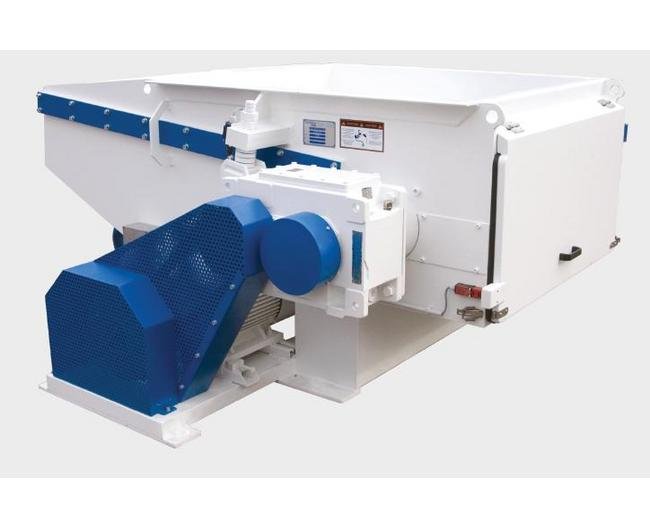

Vecoplan VAZ 1100 XL Single Shaft Shredder
Vecoplan VAZ 1100 XL Single Shaft Shredder
SKU:VAZ-de9751
Vecoplan VAZ 1100 XL: High-performance single shaft shredder for industrial materials, compliant with ISO 9001 standards.
Regular price
$34,999.99
Regular price
Sale price
$34,999.99
Unit price
per
Initiate Order
Vecoplan VAZ 1100 XL Single Shaft Shredder
$34,999.99
Quantity: 1
Claim Your Seller Account
Vecoplan VAZ 1100 XL Single Shaft Shredder
$34,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Vecoplan VAZ 1100 XL Single Shaft Shredder is a robust solution for industrial material size reduction, including plastics, wood, medical waste, and more. With a cutting-edge design, heavy-duty construction, and various customizable options for efficient operation, this shredder ensures high performance and durability. Compliant with ISO 9001 standards, it features advanced technology like 4-Way, Indexable Cutting Inserts, and Precision Hydraulic 'Process Ram', making it an ideal choice for businesses seeking reliable and sustainable waste management solutions.
Product Specifications
Specifications Cutter Size
40 x 40 mm
Specifications Cutting Chamber Length
52 in
Specifications Cutting Chamber Width
42 in
Specifications Drive Motor Power
50 hp | 60 hp
Specifications Features
4-Way, Indexable Cutting Inserts | Easy Accessibility | Equity “Buyback” Guarantee | Fluid “TurboCoupling” | Heavy Spherical Roller Bearings | Heavy-Duty Construction | High Output “Torsion Point” Cutting Rotor | ISO 9001 Manufactured | Large Infeed Hopper | Lifetime Limited Warranty on Cutting Rotor | Low RPM / Low Noise | Low Speed / High Torque Design | Oversized Drivetrain | PLC Control Panel | Precision Hydraulic "Process Ram" | Rugged Hydraulics | Stress-Free Frame, Robotically Welded | Touch Pad Monitoring and Control | Tramp Metal Protection
Specifications Feed System Hpspeed
1.5 to 2/2
Specifications Frequency
60 Hz
Specifications Hopper Volume
3.1 yd³
Specifications Machine Weight
5,500 to 5,550 lb
Specifications Number Of Cutters
48
Specifications Number Of Phase
3
Specifications Options
Abrasion Resistant Screens | Control Integration | Custom Hoppers | Multiple Rotor Configurations | Pneumatic Pick-Up Hoods | Turn-Key Installation with Custom Conveyor Systems Engineering and Material Handling Equipment
Specifications Rotor Diameter
15 in
Specifications Rotor Speed
120 rpm
Specifications Standards
International Organization for Standardization (ISO 9001)
Specifications Voltage
460 V
