Vecoplan VAZ 1100 XL XR Single Shaft Shredder
Vecoplan VAZ 1100 XL XR Single Shaft Shredder
SKU:VAZ-62869a
Powerful Vecoplan VAZ 1100 XL XR Single Shaft Shredder - Ideal for printer's waste, cardboard & paper. ISO 9001 certified with heavy-duty construction & lifetime warranty.
Regular price
$17,500.00
Regular price
Sale price
$17,500.00
Unit price
per
Initiate Order
Vecoplan VAZ 1100 XL XR Single Shaft Shredder
$17,500.00
Quantity: 1
Claim Your Seller Account
Vecoplan VAZ 1100 XL XR Single Shaft Shredder
$17,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

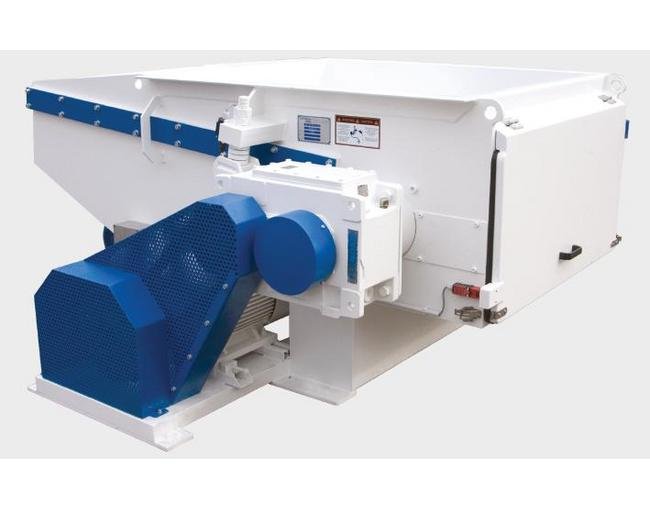

The Vecoplan VAZ 1100 XL XR Series Single Shaft Shredder is a powerhouse designed for efficient size reduction of printer’s waste, cardboard, and paper. With a cutting chamber width of 42 inches, rotor diameter of 15 inches, and equipped with 27 cutting inserts, this shredder boasts a heavy-duty construction and high output cutting rotor for maximum performance. It features a low RPM/low noise design, PLC control panel, and precision hydraulic process ram, ensuring ease of use and maintenance. Backed by an ISO 9001 certification and a lifetime limited warranty on the cutting rotor, this shredder promises exceptional durability and reliability.
Product Specifications
Specifications Cutter Size
40 x 40 mm
Specifications Cutting Chamber Length
52 in
Specifications Cutting Chamber Width
42 in
Specifications Drive Motor Power
50 hp | 60 hp
Specifications Features
4-Way, Indexable Cutting Inserts | Easy Accessibility | Equity “Buyback” Guarantee | Fluid “TurboCoupling” | Heavy Spherical Roller Bearings | Heavy-Duty Construction | High Output “Torsion Point” Cutting Rotor | ISO 9001 Manufactured | Large Infeed Hopper | Lifetime Limited Warranty on Cutting Rotor | Low RPM / Low Noise | Low Speed / High Torque Design | Oversized Drivetrain | PLC Control Panel | Precision Hydraulic "Process Ram" | Rugged Hydraulics | Stress-Free Frame, Robotically Welded | Touch Pad Monitoring and Control | Tramp Metal Protection
Specifications Feed System Hpspeed
1.5 to 2/2
Specifications Frequency
60 Hz
Specifications Hopper Volume
3.1 yd³
Specifications Machine Weight
5,500 to 5,550 lb
Specifications Number Of Cutters
27
Specifications Number Of Phase
3
Specifications Options
Abrasion Resistant Screens | Control Integration | Custom Hoppers | Multiple Rotor Configurations | Pneumatic Pick-Up Hoods | Turn-Key Installation with Custom Conveyor Systems Engineering and Material Handling Equipment
Specifications Rotor Diameter
15 in
Specifications Rotor Speed
120 rpm
Specifications Standards
International Organization for Standardization (ISO 9001)
Specifications Voltage
460 V
