Vecoplan VAZ 1300 M FF Single Shaft Shredder
Vecoplan VAZ 1300 M FF Single Shaft Shredder
SKU:VAZ-43dcd3
Maximize efficiency and quality with Vecoplan's VAZ 1300 M FF Shredder for precise plastic film and synthetic fiber reduction.
Regular price
$45,999.99
Regular price
Sale price
$45,999.99
Unit price
per
Initiate Order
Vecoplan VAZ 1300 M FF Single Shaft Shredder
$45,999.99
Quantity: 1
Claim Your Seller Account
Vecoplan VAZ 1300 M FF Single Shaft Shredder
$45,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

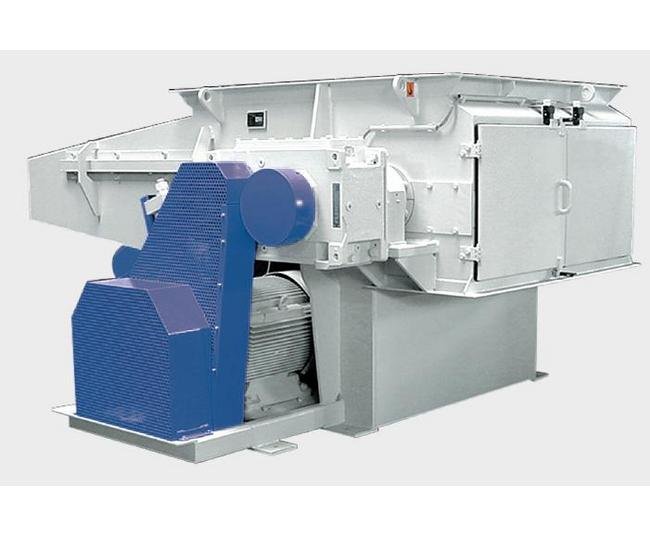

The Vecoplan VAZ 1300 M FF Single Shaft Shredder is engineered for efficient plastic film and synthetic fiber reduction with its SureCut™ Cutting System. Designed for high throughput, precision, and bulk density, this shredder features advanced thermal monitoring controls, a reliable 125-150 hp drive motor, and a durable build. With ISO 9001 certification, the VAZ 1300 M FF meets robust quality standards, making it a top choice for extrusion material reclamation in industrial settings.
Product Specifications
Specifications Cutter Size
40 x 40 mm
Specifications Drive Motor Power
125 hp | 150 hp
Specifications Features
0.015 in Knife Gap for Thin Materials | Built-In Thermal Monitoring Controls for Rotor | Critical Duty Drivetrain | Diverter Plate Over Cutting Rotor | Easy Access Screen | Fluid “TurboCoupling” | Heavy Oversized Outboard Spherical Roller Bearings | Heavy Viscosity Fluids | Hinged Protective Cylinder Covers | ISO 9001 Manufactured | Large Infeed Hopper | Low Speed / High Torque Design | Passive Programming for Self-Feed Materials | PLC Controls / Touch Pad Monitoring | Precision Hydraulic "Process Ram" | Reinforced Screens | Rugged Hydraulics | Special Composite 4-Way Indexable Cutting Inserts | SureCut™ Cutting System | Tramp Metal Protection | Wear Resistant Siderails and Cutting Chamber
Specifications Feed System Hpspeed
5/2
Specifications Frequency
60 Hz
Specifications Hopper Opening Length
58 in
Specifications Hopper Opening Width
52 in
Specifications Hopper Volume
3.75 yd³
Specifications Knife Gap
0.015 in
Specifications Machine Weight
12,000 to 14,900 lb
Specifications Nipper Cutter
29
Specifications Number Of Cutters
60
Specifications Number Of Phase
3
Specifications Options
Airspring Counterknife for High Tramp Metal Content | Application Specific Programming and Control Integration | Complete Turn-Key Recycling and Reclamation Systems and Material Handling Products Installation | Hydraulic “BridgeBreaker” Vertical Feed Ram | Multiple Cutter Insert Sizes | Multiple Rotor Configurations | Optional Control Brands | Quick Disconnect and Quick Clean Screens | Special Purpose Screens | Variable Frequency Drives
Specifications Rotor Diameter
15 in
Specifications Rotor Speed
120 rpm
Specifications Standards
International Organization for Standardization (ISO 9001)
Specifications Voltage
460 V
