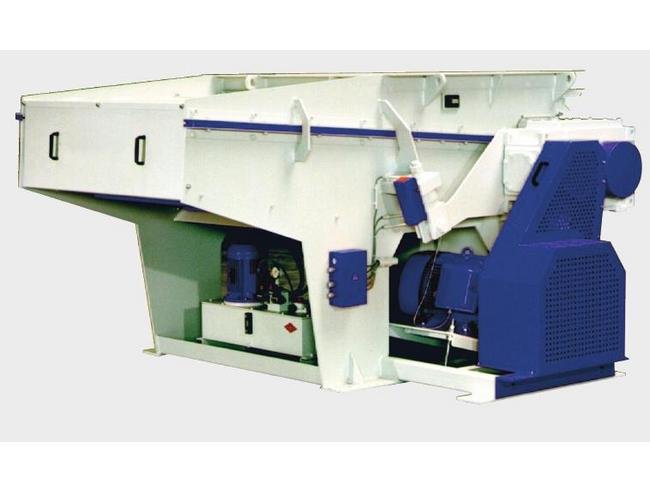

The Vecoplan VAZ 1300 S FF Single Shaft Shredder, featuring the innovative SureCut™ Cutting System, is optimized for single-stage reduction of plastic films and synthetic fibers for extrusion processes. Built for high throughput, this shredder incorporates advanced metering capabilities and thermal monitoring controls. Its precision cut lengths and high bulk densities make it ideal for industrial recycling applications.
Product Specifications
Specifications Cutter Size
40 x 40 mm
Specifications Drive Motor Power
100 hp
Specifications Features
SureCut™ Cutting SystemLow Speed / High Torque DesignPLC Controls / Touch Pad MonitoringTramp Metal ProtectionLarge Infeed HopperPrecision Hydraulic "Process Ram"Special Composite 4-Way Indexable Cutting InsertsRugged HydraulicsLifetime Limited Warranty on Cutting RotorHeavy Oversized Outboard Spherical Roller BearingsFluid “TurboCoupling”ISO 9001 ManufacturedHinged Protective Cylinder Covers0.015 in Knife Gap for Thin MaterialsEasy Access ScreenCritical Duty DrivetrainPassive Programming for Self-Feed MaterialsWear Resistant Siderails and Cutting ChamberReinforced ScreensHeavy Viscosity FluidsDiverter Plate Over Cutting RotorBuilt-In Thermal Monitoring Controls for rotor
Specifications Feed System Hpspeed
3 to 5/2
Specifications Frequency
60 Hz
Specifications Hopper Opening Length
50 in
Specifications Hopper Opening Width
52 in
Specifications Hopper Volume
3.25 yd³
Specifications Knife Gap
0.015 in
Specifications Machine Weight
11,000 to 13,900 lb
Specifications Nipper Cutter
29
Specifications Number Of Cutters
60
Specifications Number Of Phase
3
Specifications Options
Airspring Counterknife for High Tramp Metal Content | Application Specific Programming and Control Integration | Complete Turn-Key Recycling and Reclamation Systems and Material Handling Products Installation | Hydraulic “BridgeBreaker” Vertical Feed Ram | Multiple Cutter Insert Sizes | Multiple Rotor Configurations | Optional Control Brands | Quick Disconnect and Quick Clean Screens | Special Purpose Screens | Variable Frequency Drives
Specifications Rotor Diameter
15 in
Specifications Rotor Speed
120 rpm
Specifications Standards
International Organization for Standardization (ISO 9001)
Specifications Voltage
460 V
