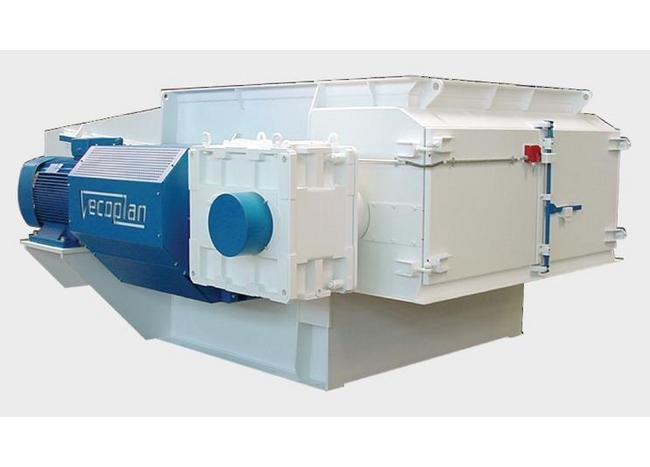

Vecoplan VAZ 1800 Single Shaft Shredder
Vecoplan VAZ 1800 Single Shaft Shredder
SKU:VAZ-f20e39
Vecoplan VAZ 1800: High-performance single shaft shredder for efficient and sustainable industrial recycling applications.
Regular price
$64,999.99
Regular price
Sale price
$64,999.99
Unit price
per
Initiate Order
Vecoplan VAZ 1800 Single Shaft Shredder
$64,999.99
Quantity: 1
Claim Your Seller Account
Vecoplan VAZ 1800 Single Shaft Shredder
$64,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Vecoplan VAZ 1800 Single Shaft Shredder is a robust industrial solution specifically engineered for processing plastic waste, extruder purgings, trim scraps, baled film, wood scrap, medical waste, cardboard, paper, and more with exceptional efficiency. Equipped with advanced features such as a 20-inch rotor, 84 cutters, and a 150-200 hp motor, this shredder offers low noise, high torque operation for seamless recycling applications. Vecoplan's VAZ 1800 ensures reliability with ISO 9001 standards compliance, precision hydraulic ram, heavy-duty construction, and intuitive PLC control, making it an ideal choice for eco-conscious institutions looking for sustainable waste management solutions.
Product Specifications
Specifications Available With
Airspring™ Counterknife (VAZ 1800 F) | Both BridgeBreaker™ and Airspring™ Counterknife (VAZ 1800 NF) | BridgeBreaker™ (VAZ 1800 N)
Specifications Cutter Size
40 x 40 mm
Specifications Drive Motor Power
150 hp | 200 hp
Specifications Features
0.015 in Knife Gap | 4-Way, Indexable Cutting Inserts | Easy Access Screen | Easy Accessibility | Equity “Buyback” Guarantee | Fluid “TurboCoupling” | Heavy Outboard Spherical Roller Bearings | High Output “Torsion Point” Cutting Rotor | Hinged Protective Cylinder Covers | ISO 9001 Manufactured | Large Infeed Hopper | Low RPM / Low Noise | Low Speed / High Torque Design | Oversized Drivetrain | PLC Control Panel | Precision Hydraulic "Process Ram" | Rugged Hydraulics | Severe Duty Construction | Stress-Free Frame, Robotically Welded | Touch Pad Monitoring and Control | Tramp Metal Protection
Specifications Feed System Hpspeed
10/2
Specifications Frequency
60 Hz
Specifications Hopper Opening Length
82 in
Specifications Hopper Opening Width
70 in
Specifications Hopper Volume
10.25 yd³
Specifications Machine Weight
20,000 to 24,000 lb
Specifications Number Of Cutters
84
Specifications Number Of Phase
3
Specifications Options
Application Specific Programming and Control Integration | Complete Turn-Key Recycling and Reclamation Systems and Material Handling Products Installation | Critical-Duty Drivetrain | High Speed Ram | Optional Control Brands | Quick Disconnect and Quick Clean Screens | Special Purpose Screens | Wear Resistant Cutting Chamber
Specifications Rotor Diameter
20 in
Specifications Rotor Speed
125 rpm
Specifications Standards
International Organization for Standardization (ISO 9001)
Specifications Voltage
460 V
