Vecoplan VAZ 2000 M F FF Single Shaft Shredder
Vecoplan VAZ 2000 M F FF Single Shaft Shredder
SKU:VAZ-920046
Vecoplan VAZ 2000 M F FF Single Shaft Shredder: Precision cutting for plastic films & fibers, high throughput. SureCut™ System & ISO 9001 compliant.
Regular price
$49,999.99
Regular price
Sale price
$49,999.99
Unit price
per
Initiate Order
Vecoplan VAZ 2000 M F FF Single Shaft Shredder
$49,999.99
Quantity: 1
Claim Your Seller Account
Vecoplan VAZ 2000 M F FF Single Shaft Shredder
$49,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

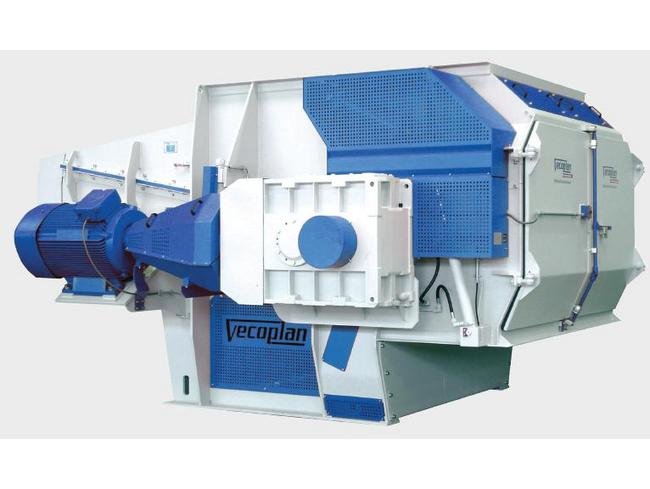

The Vecoplan VAZ 2000 M F FF Single Shaft Shredder, featuring the innovative SureCut™ Cutting System, is expertly crafted for single-stage reduction of plastic films and synthetic fibers. Built with precision in mind, this shredder boasts a robust design for high throughput, equipped with built-in thermal monitoring controls and metering capabilities. Its advanced features, including a 'Flipper' Floating Counter Knife, 0.015in Knife Gap, and PLC Controls, ensure precise cuts, high bulk densities, and ease of operation. With compliance to ISO 9001 standards and a host of customizable options, this shredder guarantees reliability and efficiency in extrusion material reclamation.
Product Specifications
Specifications Drive Motor Power
200 to 300 hp
Specifications Features
“Flipper” Floating Counter Knife | 0.015 in Knife Gap for Thin Materials | Built-In Thermal Monitoring Controls for Rotor | Critical Duty Drivetrain | Diverter Plate Over Cutting Rotor | Easy Access Screen | Fluid “TurboCoupling” | Heavy Oversized Outboard Spherical Roller Bearings | Heavy Viscosity Fluids | Hinged Protective Cylinder Covers | ISO 9001 Manufactured | Large Infeed Hopper | Lifetime Limited Warranty on Cutting Rotor | Low Speed / High Torque Design | Passive Programming for Self-Feed Materials | PLC Controls / Touch Pad Monitoring | Precision Hydraulic "Process Ram" | Reinforced Screens | Rugged Hydraulics | Special Composite 4-Way Indexable Cutting Inserts | SureCut™ Cutting System | Tramp Metal Protection | Wear Resistant Siderails and Cutting Chamber
Specifications Feed System Hpspeed
12.5/2
Specifications Frequency
60 Hz
Specifications Hopper Opening Length
78 in
Specifications Hopper Opening Width
78 in
Specifications Machine Weight
39,683 lb
Specifications Nipper Cutter
45
Specifications Number Of Cutters
92
Specifications Number Of Phase
3
Specifications Options
Abrasion Resistant Screens | Air Spring Counter Knife | Control Integration | Custom Hoppers | Turn-Key Installation with Custom Conveyor Systems Engineering and Material Handling Equipment
Specifications Rotor Diameter
25 in
Specifications Rotor Speed
120 rpm
Specifications Standards
International Organization for Standardization (ISO 9001)
Specifications Standard Cutter Size
40 x 40
Specifications Voltage
460 V
