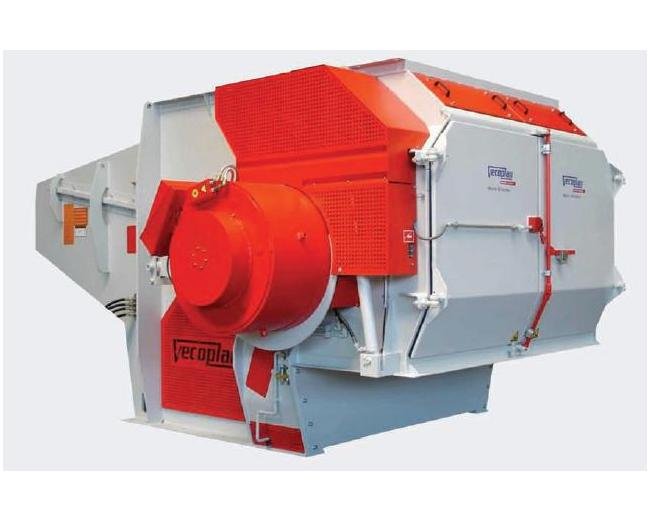

Vecoplan VAZ 2000 [R]M Single Shaft Shredder

Vecoplan VAZ 2000 [R]M Single Shaft Shredder

VAZ-95b737

Efficiently process various wastes with Vecoplan's VAZ 2000 [R]M Single Shaft Shredder, featuring patented rotor system and advanced cutting technology.

$75,000.00
$75,000.00
Sale

Initiate Order

Vecoplan VAZ 2000 [R]M Single Shaft Shredder

Vecoplan VAZ 2000 [R]M Single Shaft Shredder

$75,000.00

Quantity: 1

Claim Your Seller Account

Vecoplan VAZ 2000 [R]M Single Shaft Shredder

Vecoplan VAZ 2000 [R]M Single Shaft Shredder

$75,000.00

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Vecoplan VAZ 2000 [R]M Series Single Shaft Shredder is a robust solution designed for efficient processing of various waste types including paper, plastic, wood scraps, and medical waste. With a patented rotor system, multiple cutting crown options, and heavy-duty construction, this shredder offers high performance and durability. Equipped with advanced features like PLC control panel, tramp metal protection, and hydraulic feeding ram, it ensures reliable operation and consistent output. Manufactured in compliance with ISO 9001 standards, this shredder is ideal for producing RDF from manufacturing and commercial waste.

Product Specifications

Hitorc Drive Version 0
Shredder for single-stage shredding with a variable rotor speed of approx. 0 to 360 (410) rpm with the energy saving HiTorc® drive. The automatic speed controller allows the rotor to turn quickly when the materials are easy to shred, and more slowly with more torque when processing tougher materials. Thus, HiTorc™ equipped single-stage shredders enable up to 70 % higher capacity in most applications with energy savings up to 60 %.
Specifications Application
Two re-shredders producing RDF (refuse derived fuel) from manufacturing and commercial waste.
Specifications Approximate Shredding To Particle Size
10 to 250 mm | 3/8 to 10 in
Specifications Capacity
0 to 25 ton
Specifications Cutter Size
140 mm | 40 mm | 60 mm | 80 mm
Specifications Direct Drive Version
Extremely powerful shredder for re-shredding with a constant rotor speed of approximately 410 rpm. Main drive via e-motor, hydraulic coupling and belt drive with electronically monitored sliding hub.
Specifications Energy Savings
0 to 60 %
Specifications Features
4-Way, Indexable Cutting Inserts | 640 mm (25 in) rotor diameter | Capacity up to 25 t | Easy Accessibility | Equity “Buyback” Guarantee | Heavy Spherical Roller Bearings | Heavy-Duty Construction | High Output “Torsion Point” Cutting Rotor | Hydraulic feeding ram | ISO 9001 Manufactured | Large Infeed Hopper | Multiple tramp metal protection | Oversized Drivetrain | PLC Control Panel | Shredding to particle size of approximately 10 to 250 mm (3/8 to 10 in), according to preference | Stress-Free Frame, Robotically Welded | Tramp Metal Protection

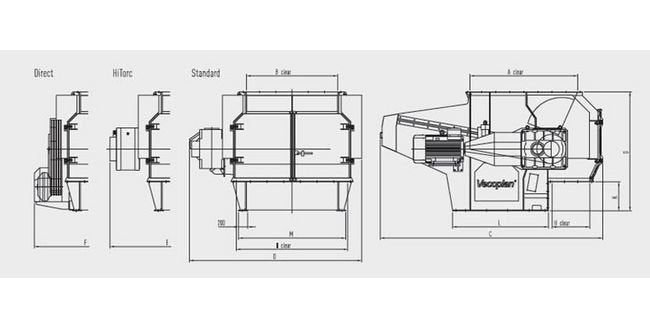

Specifications Infeed Opening Length A
78 in
Specifications Infeed Opening Width B
79 in
Specifications Machine Stand Length L
83 in
Specifications Machine Stand Width M
92 in
Specifications Manufacturing Notes
Detailed dimension drawings and load data available on request.
Specifications Material Outlet Height K
25 in
Specifications Material Outlet Length H
32 in
Specifications Material Outlet Width I
96 in
Specifications Maximum Weight
41,880 lb
Specifications Overall Height G
102 in
Specifications Overall Length C
192 in
Specifications Overall Width With Belt Drive F
135 in
Specifications Overall Width With Gears D
149 in
Specifications Overall Width With Hitorc E
145 in
Specifications Patented Rotor System
Profiled rotor with toothed counter knives - a Vecoplan® patent. A choice of 40, 60, 80 or 140 mm cutting crowns or flat cutters. Depending on the size, available with variable number of cutters, from single-row up to four rows.
Specifications Rotor Diameter
25 in | 640 mm
Specifications Standards
International Organization for Standardization (ISO 9001)
Specifications Standard Drive Version
Tried and tested shredder for single-stage shredding with a constant rotor speed of 150 rpm. Main drive via e-motor, cardan shaft, hydraulic coupling and gears.
